Arrowhead Electrical

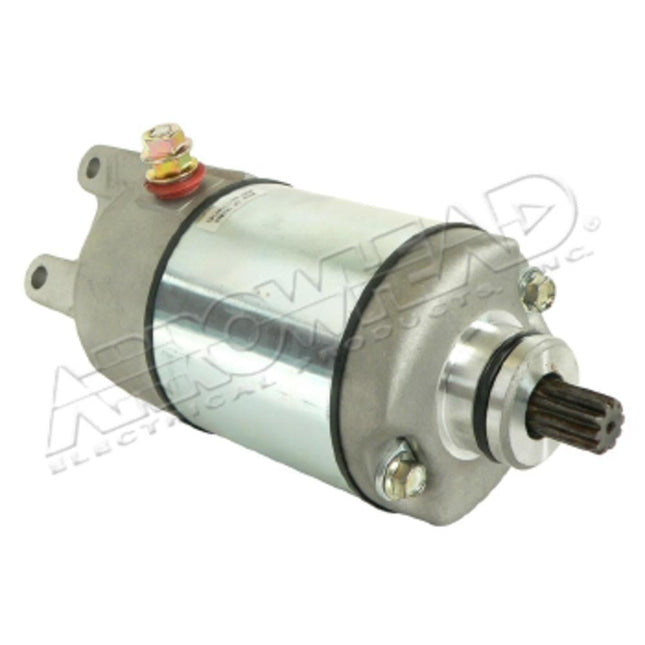

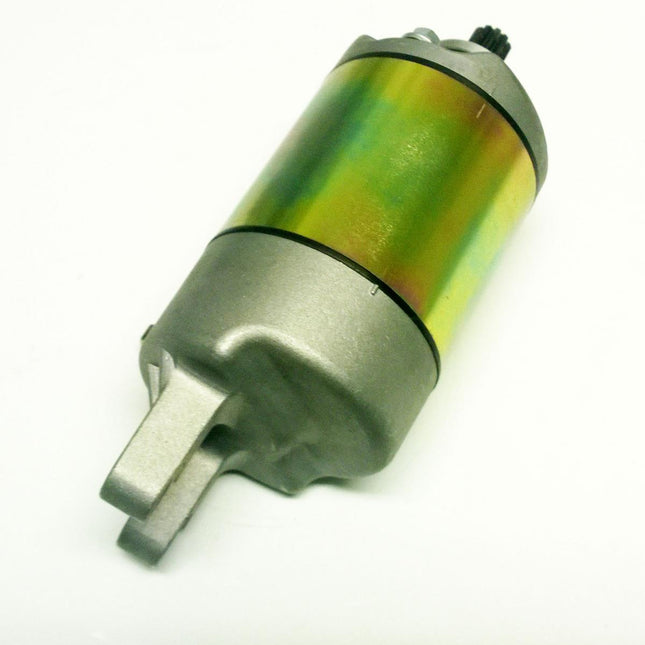

Part No. 19-102.AR (radhouse.co.uk) Cross reference number ONLY: MS-811,,DIXIE 242-06106,,DIXIE 31200-HA7-305. 31200-HA7-305, 31200-HA7-315, 31200-HA7-671 LESTER 18335, MITSUBA SM13233, AT-01073

Read more less

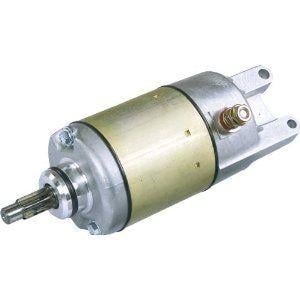

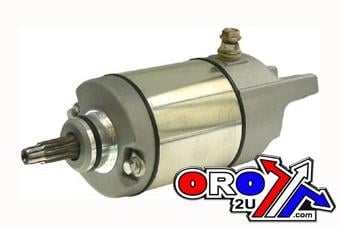

Starter Motor Arrowhead Compatible Honda Models: ATC250 ES Big Red (1987-1988) ATC250 SX (1987) TRX250 Fourtrax (1987) TRX300 Fourtrax (1988-2000) Product Features: Meets or exceeds OEM quality. Direct OEM replacement. Designed to handle increased power loads. Offers the best value for money. Made to OEM specifications to match original equipment appearance. All electrical parts are 100% fully factory tested before shipping. Note: Electrical components are non-returnable and have no warranty due to their nature. Arrowhead products are high-quality replacement parts and Customers are advised to check the product image before ordering to avoid mistakes. Specifications: 12-Volt; CCW rotation Cross Reference Numbers: ARROWHEAD SMU0028 LESTER 18337, 190-529B, 191-119 128000-4400, Mitsuba SM13213 Honda OEM: 31200-HA0-773, 31200-HA0-774, 31200-HA6-306, 31200-HA6-316, 31200-HA6-773, 31200-HA6-774, 31200-HC4-003, 31200-HC4-013, 31200-HC4-023, 31200-HC4-033 Fits These Honda ATV Models: ATC250ES Big Red / Year: '87 / Engine: 246cc ATC250SX / Year: '87 / Engine: 246cc TRX250 Fourtrax / Year: '87 / Engine: 246cc TRX300 / Years: '88-'00 / Engine: 281cc TRX300FW / Years: '88-'00 / Engine: 281cc Assemblies Where 31200-HC4-003 is Used (1987-2000): TRX300 A/FW models from 1987 to 2000 covering starting motor assemblies.

Read more less

Part No. 19-100.AR (radhouse.co.uk) Cross reference numbers ONLY. 31200-HA0-004, 31200-HA0-682, 31200-HA6-682, 31200HA0-682, 31200HA6-682, 31200HAD682, 31200HAD683, LESTER 18341; 128000-1490, 128000-1491; EMS: HA-101N, HA-101, HA-101A, HA-101B, WILSON: 91-26-2006, 91-29-5535, S18341, SND0014, Ricks 61-111, SND0014 ARROWHEAD , SMU0224 ARROWHEAD (OLD) , 18341 LESTER, 190-529 , 610-005 BARSANCO, 22-18341 BBB SMALL MOTOR, 111920 CARGO, 128000-1490 DENSO, 128000-1491 DENSO, MS-813 DIXIE, 246-06137 DIXIE NEW , 918341 DUBOIS, 61-111, AT-01124

Read more less

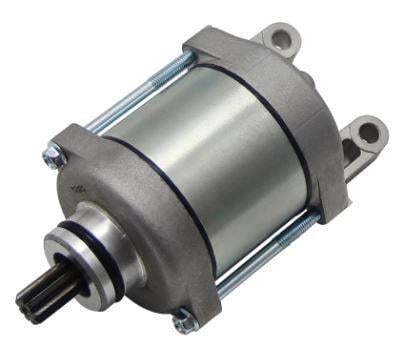

STARTER MOTOR Husqvarna FC 250 2016, 2017 Husqvarna FC 350 2016, 2017 Husqvarna FX 350 2017 KTM 250 EXC-F Six Days 2017, 2018 KTM 250 EXC-F 2017, 2018 KTM 250 SX-F Factory 2015, 2016, 2017 KTM 250 SX-F 2016, 2017, 2018 KTM 250 XC-F 2016, 2017, 2018 KTM 350 EXC-F Six Days 2017 KTM 350 EXC-F 2017, 2018 KTM 350 SX-F 2016, 2017, 2018 KTM 350 XC-F 2016, 2017, 2018

Read more less

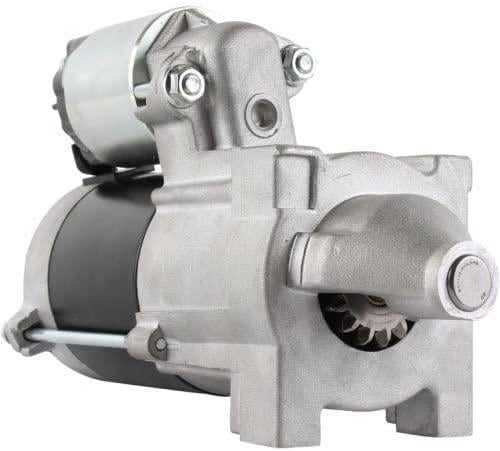

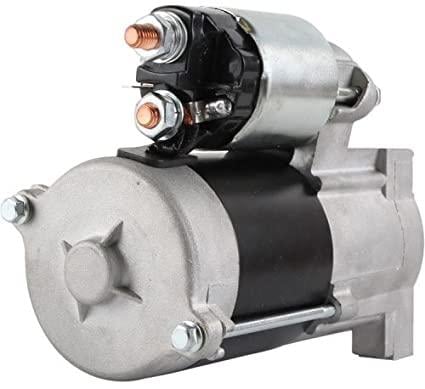

Starter Motor - Arrowhead SND0768 Compatibility: John Deere Models: Gator XUV 550 S4: 16HP 57 Gator XUV 550: 16HP 57 Gator XUV 560 S4: 16HP 57 Gator XUV 560: 16HP 57 Specifications: Type: Direct Drive (DD) Number of Teeth: 15 Rotation Direction: Counter Clockwise Voltage: 12V Features: Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Best value for money. Made to OEM specifications, matching original equipment appearance. All electrical parts are 100% factory tested before shipping. Easy installation; consult a professional if unsure. Note: No Returns on Electrical Parts. Cross Reference Numbers: Arrowhead: SND0768, 410-52421 Briggs & Stratton: 844503 J&N Electrical Products: S410-52421 John Deere: MIA12023 Additional Information: Stepped Mounting Holes: 9.3mm at large end Mount Hole ID: 18.300mm Mount Hole Type: Unthreaded

Read more less

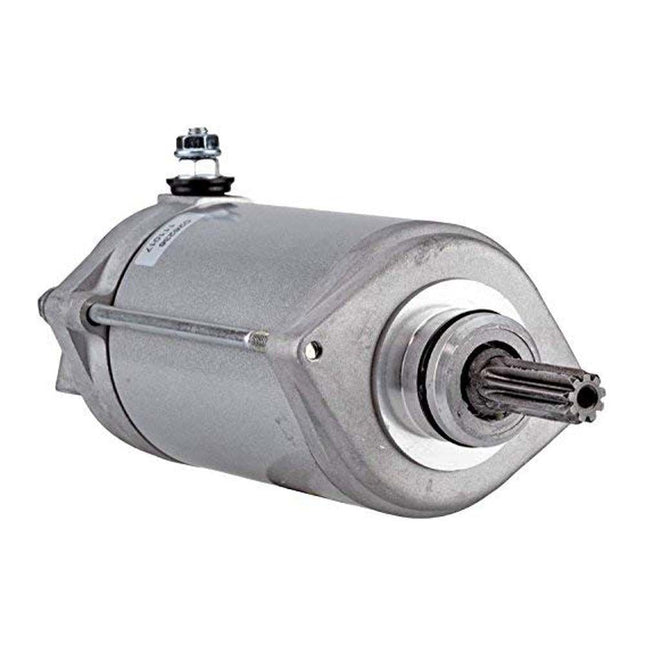

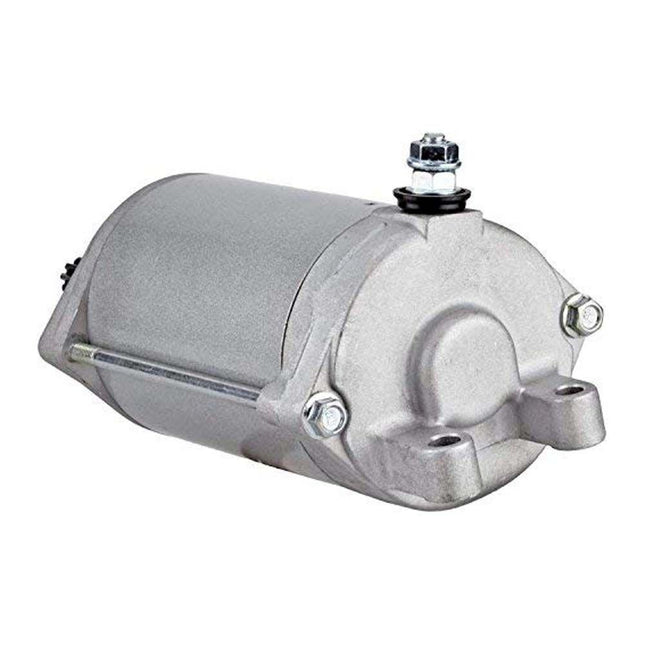

Cross reference numbers ONLY. ARROWHEAD SND0595DENSO 428000-0780, 428000-5491, 428000-6890J&N ELECTRICAL PRODUCTS 410-52513SUZUK I31100-15H00, 31100-15H10, 31100-15H20 GSX1300BK B-King 2008, 2009GSX1300BKA B-King ABS 2008, 2009GSX1300R Hayabusa 2008, 2009GSX1300R Hayabusa 2008, 2009, 2010GSX1300R Hayabusa 2011, 2012GSX1300R Hayabusa 2013GSX1300RA Hayabusa ABS 2014, 2015, 2016, 2017

Read more less

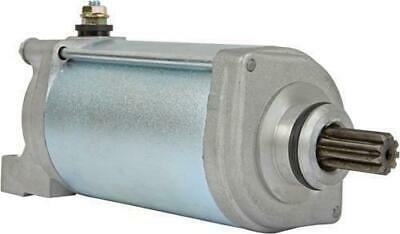

Starter Motor - Arrowhead SND0231 Compatibility: Suzuki Models: TL1000R: 1998, 1999, 2000, 2001, 2002, 2003 TL1000S: 1997, 1998, 1999, 2000, 2001 Specifications: Type: Permanent Magnet Direct Drive (PMDD) Number of Teeth: 9 Rotation Direction: Clockwise Voltage: 12V Features: Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Best value for money. Made to OEM specifications, matching original equipment appearance. All electrical parts are 100% factory tested before shipping. Easy installation; consult a professional if unsure. Note: No Returns on Electrical Parts. Cross Reference Numbers: Arrowhead: SMU0246, SND0231 Denso: 228000-5800, 228000-5801 J&N Electrical Products: 410-52557 Lester: 18742 Suzuki: 31100-02F00, 31100-02F10

Read more less

Starter Motor - Arrowhead 410-54265 Compatibility: Kawasaki Models: Kawasaki EX300 Ninja 300 (2013-2017, 296cc) Kawasaki EX300 Ninja 300 ABS (2013-2017) Kawasaki EX300 Ninja SE (2013-2016) Kawasaki EX300 Ninja SE ABS (2014-2016) Kawasaki EX300 Ninja Winter Test Edition (2017) Kawasaki KLE300 Versys-X ABS (2017-2018) Kawasaki KLE300 Versys-X (2017-2018) Specifications: Type: Permanent Magnet Direct Drive (PMDD) B+ Stud: 6 mm x 1.0 Gear OD: 11.7 mm Gear/Shaft OAL (From Bearing): 24.8 mm Registration Protrusion w/O-Ring: 16.4 mm Field Case OAL: 50.1 mm Field Case OD: 60.0 mm Overall Length (OAL): 157 mm Mounting Hole (Left Hand): 6.2 mm OD Mounting Hole (Right Hand): 6.8 mm OD Center-to-Center Distance: 46.2 mm Features: Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Best value for money. Made to OEM specifications, matching original equipment appearance. All electrical parts are 100% factory tested before shipping. Easy installation; consult a professional if unsure. Note: No Returns on Electrical Parts. Cross Reference Numbers: 410-54265 21163-0717

Read more less

Starter Motor - Arrowhead 410-54263 Compatibility: Honda Model: Honda CB500X (2013-2018, 471cc) Specifications: Type: Permanent Magnet Direct Drive (PMDD) Shaft OD: 11.9 mm B+ Stud: 6 mm x 1.0 Mounting Holes: Right Hand: 6.2 mm OD Left Hand: 7.0 mm OD Field Case Length: 61.1 mm Field Case Width: 61 mm OD Shaft Length: 21.6 mm + 3.9 mm Shoulder Length from DE Bearing to End of Shaft: 25 mm Overall Length (Approx.): 161 mm Features: Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Best value for money. Made to OEM specifications, matching original equipment appearance. All electrical parts are 100% factory tested before shipping. Easy installation; consult a professional if unsure. Note: No Returns on Electrical Parts. Cross Reference Numbers: 410-54263

Read more less

Starter Motor - Arrowhead 410-52612 Compatibility: Kawasaki Models: Kawasaki ZX-6RR Ninja ZX600 (2003-2006, 599cc) Kawasaki ZX-6R Ninja ZX636 (2003-2006, 636cc) Specifications: Type: Permanent Magnet Direct Drive (PMDD) Voltage: 12-Volt Power: 0.600 kW Horsepower: 0.805 HP Rotation Direction: Clockwise Number of Teeth: 9 Drive OD: 11.8 mm Registration OD: 30 mm Shaft Protrusion: 24.3 mm Flange-To-Rear Length: 117.2 mm Mount Hole ID 1: 6.3 mm (Unthreaded) Mount Hole ID 2: 6.9 mm (Unthreaded) Center-To-Center Distance: 37.7 mm B+ Tab Thread: 5 mm x 0.8 MOUNTING EAR DISTANCE: 11.484" (137.700 mm) Features: Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Best value for money. Made to OEM specifications, matching original equipment appearance. All electrical parts are 100% factory tested before shipping. Easy installation; consult a professional if unsure. Note: No Returns on Electrical Parts. Cross Reference Numbers: SMU0332 SND0814 18833 191-348 428000-1270

Read more less

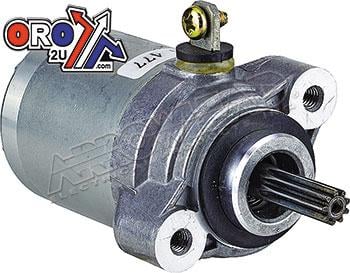

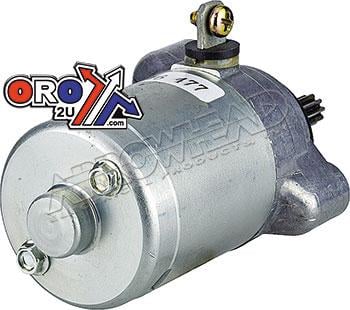

Cross reference numbers ONLY.   SMU0570 ARROWHEAD   ,   410-54259 J & N   , 5D7-81890-00-00 ,   5D7-H1800-01-00 , 5D7-H1890-00-00 , 5D7-H1890-01-00 , 9 Teeth for Yamaha YZF R15 R125A MT125 MT125A WR125R WR125X 5D7-81890-00 5D7-H1890-01 38B-H1800-01 Built to OEM specifications Direct bolt-on replacements

Read more less

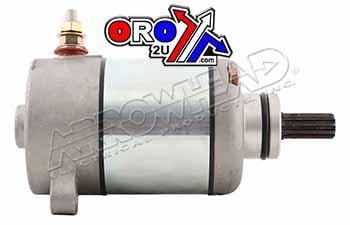

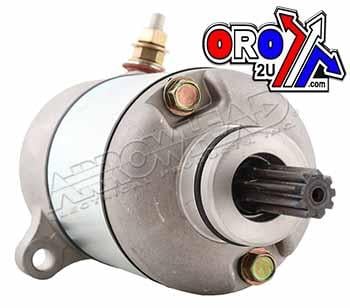

Cross reference numbers ONLY. SMU0564 ARROWHEAD, 410-54244 J & N , 31200-KPP-861 ,

Read more less

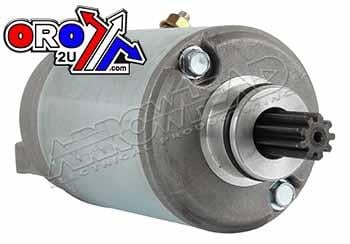

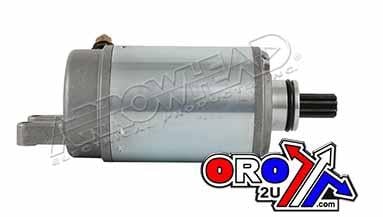

Cross reference numbers ONLY. SMU0142 ARROWHEAD , 410-52539 J & N, 18778 LESTER , 190-6169 PIC , 610-223 BARSANCO, 028000-9550 DENSO 028000-9551 DENSO , 128000-1650 DENSO , 128000-3580 DENSO , SS-6 EMS , 57-3180 MINNPAR , SS-6 STOCKERS STARTERS , 31100-30B00-H17 SUZUKI , 31100-32C00-H17 SUZUKI , 31100-43400 , 31100-43401 SUZUKI SUZUKI GS300L (19821984) GS450E (1980-1983) GS450G (1982-1983) GS450GA (1983-1984) GS450L (1980-1983) GS450ST (1980-1982) GS450SX (1980-1982) GS450T (1981-1982) GS450TX (1981-1983) GS650 Katana (1983) GS650G (1981-1983) GS650GL (1981-1983) GS650GT (1981-1983) GS650M (1983) XN85 Turbo (1983)

Read more less

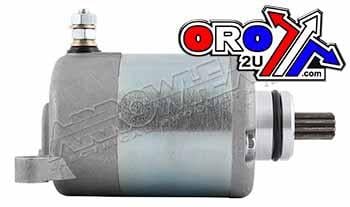

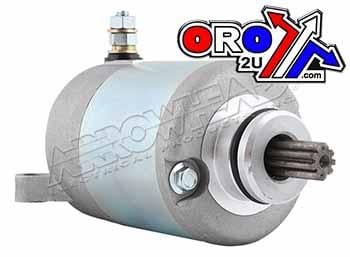

Starter Motor - Arrowhead SMU0569 Compatibility: Polaris Models: Hawkeye 325 2X4 (2015) Ranger ETX (2015-2016) Ranger ETX EU (2015-2016) Sportsman ETX EFI (2015) Sportsman ETX EFI MD (2015) Sportsman ACE 325 EFI (2014-2016) M1400 Gas (2016) Specifications: Type: Permanent Magnet Direct Drive (PMDD) Voltage: 12-Volt Rotation Direction: Clockwise (CW) Number of Teeth: 9 Gear OD: 0.465" (11.800 mm) Length: 3.839" (97.500 mm) Mount Hole ID: 16.500 mm Mount Hole 1 Type: Unthreaded Mount Hole 2 Type: Unthreaded Registry OD: 1.181" (30 mm) M6 B+ Stud Mounting Ear Distance: 12.366" (160.100 mm) Features: Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Best value for money. Made to OEM specifications, matching original equipment appearance. All electrical parts are 100% factory tested before shipping. Easy installation; consult a professional if unsure. Note: No Returns on Electrical Parts. Cross Reference Numbers: SMU0569 (Arrowhead) 410-22077 (J & N) 4013428 (Polaris) 4014972 (Polaris) 4015223 (Polaris)

Read more less

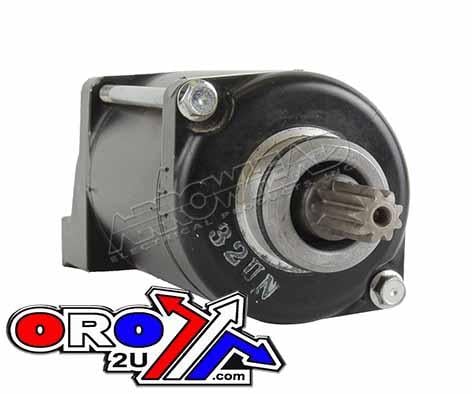

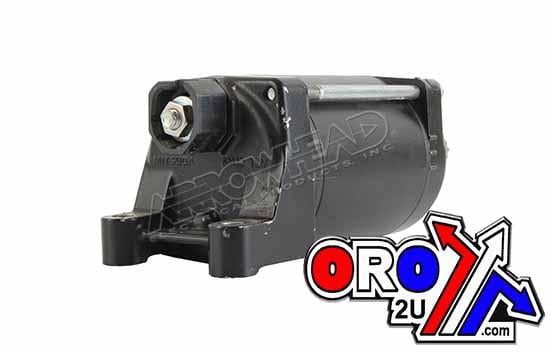

Starter Motor - Arrowhead SMU0559 Compatibility: Honda Models: CBR600RA (2009-2017) w/599cc CBR600RR (2007-2017) w/599cc Specifications: Type: Permanent Magnet Direct Drive (PMDD) Voltage: 12-Volt Rotation Direction: Counter Clockwise (CCW) Number of Teeth: 9 Gear OD: 0.472" (12 mm) Length: 119.500 mm (4.705") Mount Hole ID: 17.100 mm Mount Hole 1 Type: Unthreaded Mount Hole 2 Type: Unthreaded Registry OD: 1.181" (30 mm) M6 B+ Stud Mounting Ear Distance: 21.811" (246 mm) Features: Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Best value for money. Made to OEM specifications, matching original equipment appearance. All electrical parts are 100% factory tested before shipping. Easy installation; consult a professional if unsure. Note: No Returns on Electrical Parts. Cross Reference Numbers: SMU0559 (Arrowhead) 410-54258 (J & N) 31200-MGZ-J01 (Honda)

Read more less

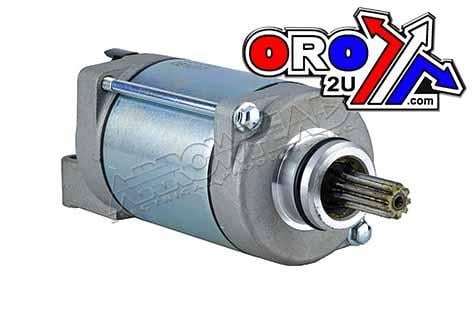

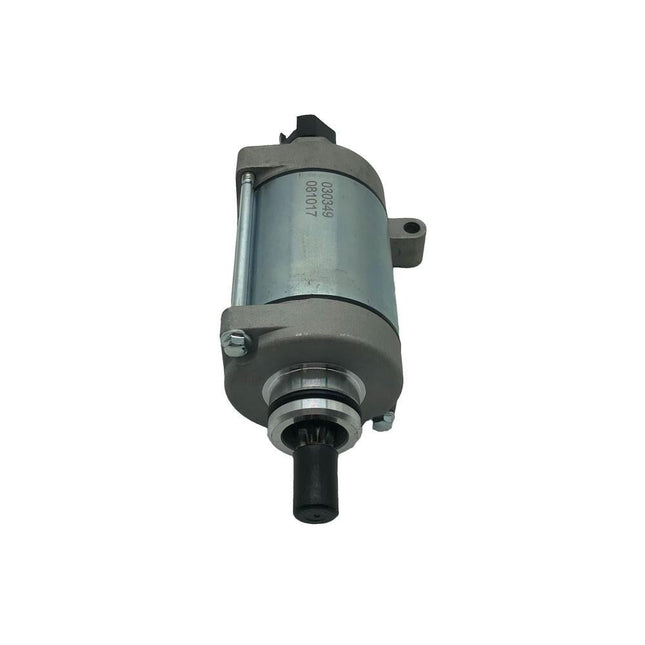

Starter Motor - Arrowhead SMU0475 Compatibility: Honda Models: CBR600RA M/C (2009-2016) CBR600RR M/C (2007-2016) Specifications: Type: Permanent Magnet Direct Drive (PMDD) Voltage: 12-Volt Rotation Direction: Counter Clockwise (CCW) Number of Teeth: 9 Gear OD: 0.465" (11.800 mm) Length: 128.500 mm (5.059") Mount Hole ID: 17 mm Mount Hole 1 Type: Unthreaded Mount Hole 2 Type: Unthreaded Registry OD: 1.181" (30 mm) M6 B+ Stud Mounting Ear Distance: 22.098" (253.300 mm) Features: Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Best value for money. Made to OEM specifications, matching original equipment appearance. All electrical parts are 100% factory tested before shipping. Easy installation; consult a professional if unsure. Note: No Returns on Electrical Parts. Cross Reference Numbers: SMU0475 (Arrowhead) 191-560 (PIC) HS-67 (EMS) 31200-MFJ-D01 (Honda)

Read more less

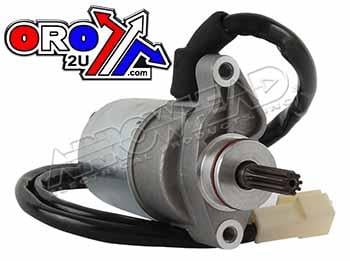

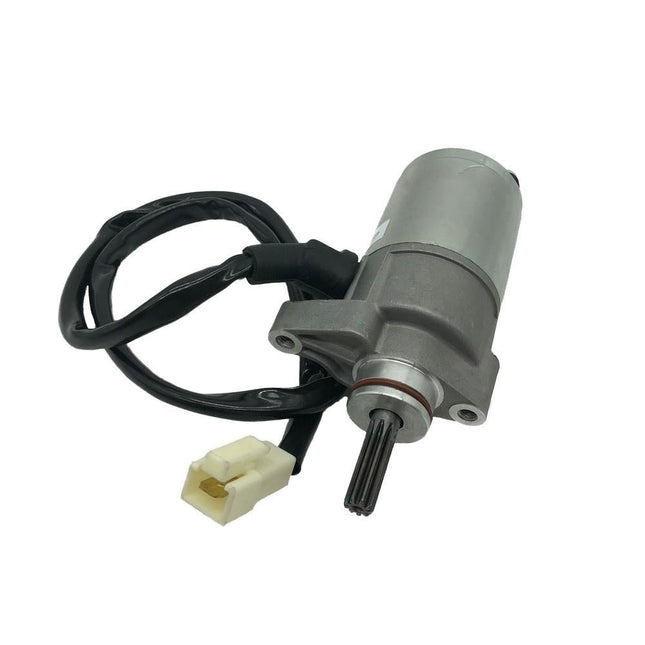

tarter Motor - Arrowhead 410-54221 / SMU0449 Compatibility: Yamaha Models: TTR110E M/C (2008-2016) Specifications: Type: Permanent Magnet Direct Drive (PMDD) Voltage: 12-Volt Rotation Direction: Counter Clockwise (CCW) Number of Teeth: 9 Gear Length: 30.3 mm (From Bearing Surface) Gear OD: 0.362" (9.200 mm) Length: 144.600 mm (5.693") Mount Hole 1: M6x1.00 (Threaded) Mount Hole 2: M6x1.00 (Threaded) Registry OD: 1.024" (26 mm) Mounting Ear Distance: 12.441" (162 mm) 22.441" (262 mm) Features: Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Best value for money. Made to OEM specifications, matching original equipment appearance. All electrical parts are 100% factory tested before shipping. Easy installation; consult a professional if unsure. Note: No Returns on Electrical Parts. Cross Reference Numbers: SMU0449 (Arrowhead) 410-54221 (J & N) 191-593 (PIC) 5B6-H1800-00-00 (Yamaha) 5B6-H1800-01-00 (Yamaha) Vehicle Compatibility Please check the exact model and year before ordering. Manufacturer Model Years YAMAHA TT R E 125 2008-2016

Read more less

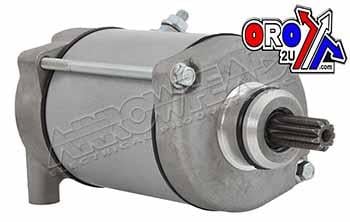

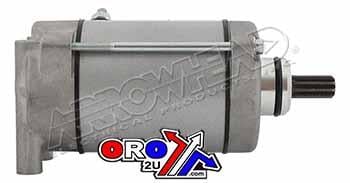

Cross reference numbers ONLY. SMU0445 ARROWHEAD 191-513 PIC YS-44 STOCKERS STARTERS 2D1-81890-00-00 YAMAHA Replacement Parts.PARTS KIT w/BRUSH HOLDER Arrowhead SMU9170

Read more less

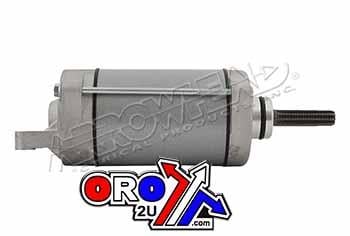

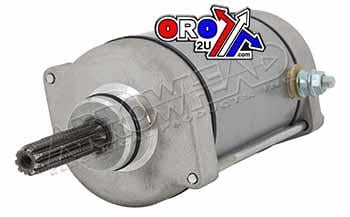

Starter Motor - Arrowhead SMU0442 Compatibility: Suzuki Models: 2008-09 VLR1800 C109 Boulevard Cruiser (1783cc) 2008-09 VLR1800T C109RT Boulevard Touring (1783cc) 2006-13 VZR1800 M109R Boulevard Cruiser (1783cc) 2014-17 VZR1800BZ M109R Boulevard Cruiser (1783cc) 2006-09 VZR1800N M109R Boulevard Cruiser (1783cc) 2006-13 VZR1800Z M109R Boulevard Cruiser (1783cc) Specifications: Type: Permanent Magnet Direct Drive (PMDD) Voltage: 12-Volt Rotation Direction: Clockwise Number of Teeth: 9 Drive Spline: 45mm from bearing to tip Length: 220 mm (8.661") Gear OD: 0.465" (11.800 mm) Mount Hole 1 Diameter: 16.600 mm (Unthreaded) Mount Hole 2 Diameter: 16.600 mm (Unthreaded) Registry OD: 1.181" (30 mm) Mounting Details: Left Side Rear Mounting Hole: 7 mm OD Right Side Rear Mounting Hole: 6 mm OD Features: Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Best value for money. All products are made to OEM specifications and match original equipment in appearance. 100% factory tested before shipping. Easy installation; consult a professional if unsure. Note: No Returns on Electrical Parts. Cross Reference Numbers: SMU0442 (Arrowhead) 191-615 (PIC) SS-43 (Stockers Starters) 31100-48G00 (Suzuki)

Read more less
