1800w/2.5hp 48V 32A Electric Motor Kit Universal Buggy Bike Quad Moto Diy

Description

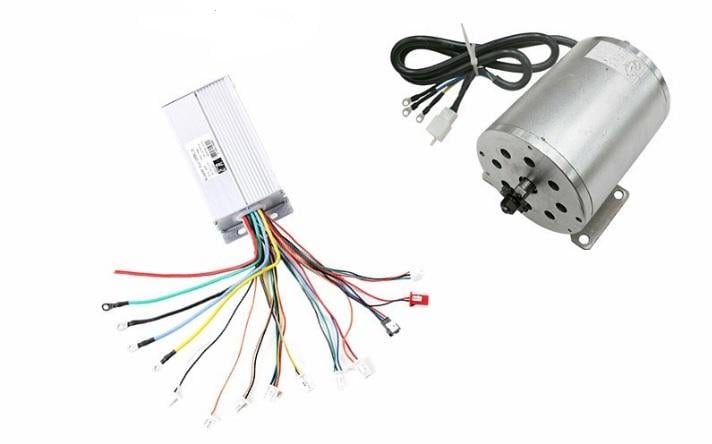

This 48 V brushless DC drive kit pairs a high-speed MY1020 motor with a matched two-mode controller limited to 32 A for use in lightweight EV applications such as buggies, bikes, quads and small moto projects. The motor delivers 1800 W (2.5 hp) and the controller supports multiple control functions including three-speed selection, cruise, reverse, PAS and both low- and high-level brake inputs, with comprehensive wiring brought out to clearly identified leads.

NO INSTRUCTIONS INCLUDED

Features

  • Brushless DC motor with hall sensors
  • CE-approved motor
  • Two-mode brushless controller with automatic motor phase angle identification (learning wires)
  • Brake input compatibility: low-level and high-level electrical signals
  • Three-speed gear selection (shift and jog modes)
  • Constant-speed cruise control
  • Reverse gear input
  • PAS (pedal assist) input
  • Accelerator (throttle) handle interface with regulated sensor supply
  • Electric door lock input and conduction wire for key switch circuits
  • Anti-theft alarm power and alarm signal interfaces
  • Outputs for diagnostic meters: multi-data meter, hall meter, phase meter
  • Headlight/horn/tail-light supply not driven directly by the controller; use vehicle harness or a suitable DC converter as required
  • Basic wiring and debugging guidance included

Specifications

  • Motor model: MY1020
  • Motor type: Brushless DC
  • Motor voltage: 48 V DC
  • Motor output: 1800 W (2.5 hp)
  • Rated motor speed: 4500 rpm
  • Motor sprocket: 9T for T8F chain
  • Controller nominal voltage: 48 V
  • Controller current limit: 32 A
  • Controller rated power: 1800 W
  • Hall sensor pinout (5-pin): red-black (+5 V), yellow/green/blue (hall signals), black (GND)
  • Motor phase wires: yellow, green, blue
  • Power input leads: red (Power +), black (Power –)
  • Electric door lock: orange (Electric Door Lock +), green (conduction wire)
  • Low-level brake: yellow-black (signal), black (GND)
  • High-level brake: purple (signal), black (GND)
  • Shift three-speed: pink (high), grey (low), black (GND)
  • Jog three-speed: green (variable speed), black (GND)
  • Cruise control: blue-white (cruise signal), black (GND)
  • Accelerator (throttle) connector: red-white (+4.3 V to +5 V sensor supply), green-white (signal), black (GND)
  • Reverse gear: blue-black (signal), black (GND)
  • PAS connector: sky blue (PAS signal), red-black (+5 V), black (GND)
  • Anti-theft alarm power: red (Power +), black (Power –)
  • Anti-theft alarm signal: orange (electric door lock), blue-red (alarm signal), brown-white (phase signal)
  • Battery leads: thick black (power negative), thick red (power positive)
  • Motor leads: thick yellow/green/blue (motor phases)
  • Motor hall sensor: 5-pin as specified above
  • Ignition (key) switch: thin red (VCC), thin blue
  • Indicator: thin red (indicator power output), thin black (indicator negative)
  • Brake signal: thin yellow (brake), thin black (negative power) or purple (high-level brake), black (GND)
  • Speed governor (throttle): thin blue (handlebar signal input), thin black (negative power), thin red (5 V positive power)
  • Charge port: thin red (charge input power positive), thin black (power negative)
  • Brake light: thin red (power positive), thin black (power negative)
  • Lighting note: for 12 V vehicle lights, use a DC converter from battery voltage (e.g. 24–84 V to 12 V) as per the included guidance

1800w/2.5hp 48V 32A Electric Motor Kit Universal Buggy Bike Quad Moto Diy

Product form

This 48 V brushless DC drive kit pairs a high-speed MY1020 motor with a matched two-mode controller limited to 32... Read more

11 in stock 1-2 business days

£199.23 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-8800
    Barcode: 0120000052608

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This 48 V brushless DC drive kit pairs a high-speed MY1020 motor with a matched two-mode controller limited to 32 A for use in lightweight EV applications such as buggies, bikes, quads and small moto projects. The motor delivers 1800 W (2.5 hp) and the controller supports multiple control functions including three-speed selection, cruise, reverse, PAS and both low- and high-level brake inputs, with comprehensive wiring brought out to clearly identified leads.

    NO INSTRUCTIONS INCLUDED

    Features

    • Brushless DC motor with hall sensors
    • CE-approved motor
    • Two-mode brushless controller with automatic motor phase angle identification (learning wires)
    • Brake input compatibility: low-level and high-level electrical signals
    • Three-speed gear selection (shift and jog modes)
    • Constant-speed cruise control
    • Reverse gear input
    • PAS (pedal assist) input
    • Accelerator (throttle) handle interface with regulated sensor supply
    • Electric door lock input and conduction wire for key switch circuits
    • Anti-theft alarm power and alarm signal interfaces
    • Outputs for diagnostic meters: multi-data meter, hall meter, phase meter
    • Headlight/horn/tail-light supply not driven directly by the controller; use vehicle harness or a suitable DC converter as required
    • Basic wiring and debugging guidance included

    Specifications

    • Motor model: MY1020
    • Motor type: Brushless DC
    • Motor voltage: 48 V DC
    • Motor output: 1800 W (2.5 hp)
    • Rated motor speed: 4500 rpm
    • Motor sprocket: 9T for T8F chain
    • Controller nominal voltage: 48 V
    • Controller current limit: 32 A
    • Controller rated power: 1800 W
    • Hall sensor pinout (5-pin): red-black (+5 V), yellow/green/blue (hall signals), black (GND)
    • Motor phase wires: yellow, green, blue
    • Power input leads: red (Power +), black (Power –)
    • Electric door lock: orange (Electric Door Lock +), green (conduction wire)
    • Low-level brake: yellow-black (signal), black (GND)
    • High-level brake: purple (signal), black (GND)
    • Shift three-speed: pink (high), grey (low), black (GND)
    • Jog three-speed: green (variable speed), black (GND)
    • Cruise control: blue-white (cruise signal), black (GND)
    • Accelerator (throttle) connector: red-white (+4.3 V to +5 V sensor supply), green-white (signal), black (GND)
    • Reverse gear: blue-black (signal), black (GND)
    • PAS connector: sky blue (PAS signal), red-black (+5 V), black (GND)
    • Anti-theft alarm power: red (Power +), black (Power –)
    • Anti-theft alarm signal: orange (electric door lock), blue-red (alarm signal), brown-white (phase signal)
    • Battery leads: thick black (power negative), thick red (power positive)
    • Motor leads: thick yellow/green/blue (motor phases)
    • Motor hall sensor: 5-pin as specified above
    • Ignition (key) switch: thin red (VCC), thin blue
    • Indicator: thin red (indicator power output), thin black (indicator negative)
    • Brake signal: thin yellow (brake), thin black (negative power) or purple (high-level brake), black (GND)
    • Speed governor (throttle): thin blue (handlebar signal input), thin black (negative power), thin red (5 V positive power)
    • Charge port: thin red (charge input power positive), thin black (power negative)
    • Brake light: thin red (power positive), thin black (power negative)
    • Lighting note: for 12 V vehicle lights, use a DC converter from battery voltage (e.g. 24–84 V to 12 V) as per the included guidance
