4 Long Travel Kit Cfmoto Uforce U10 Pro Xl Highland Superatv LTK-CF-U10-4-02

Description

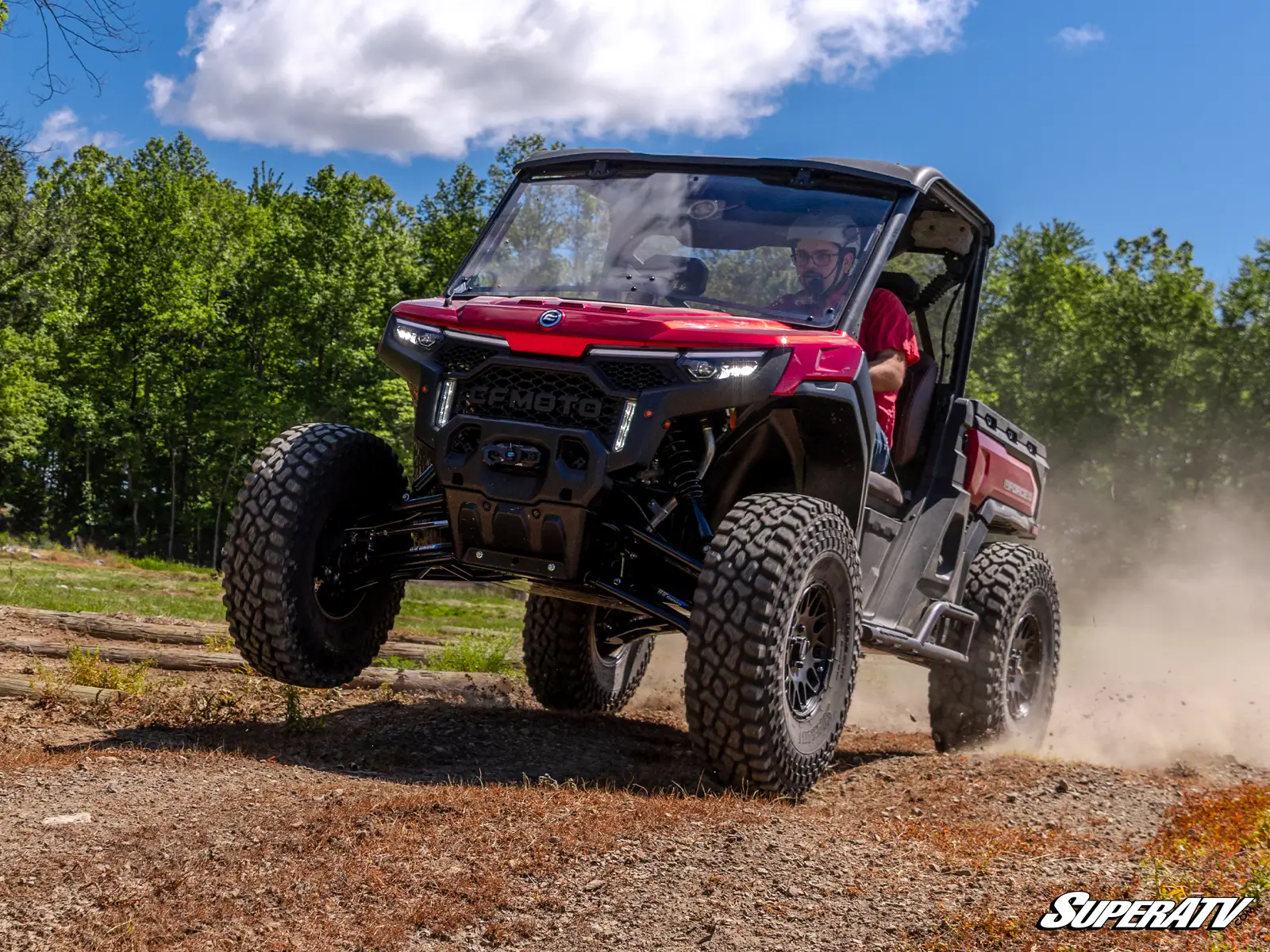

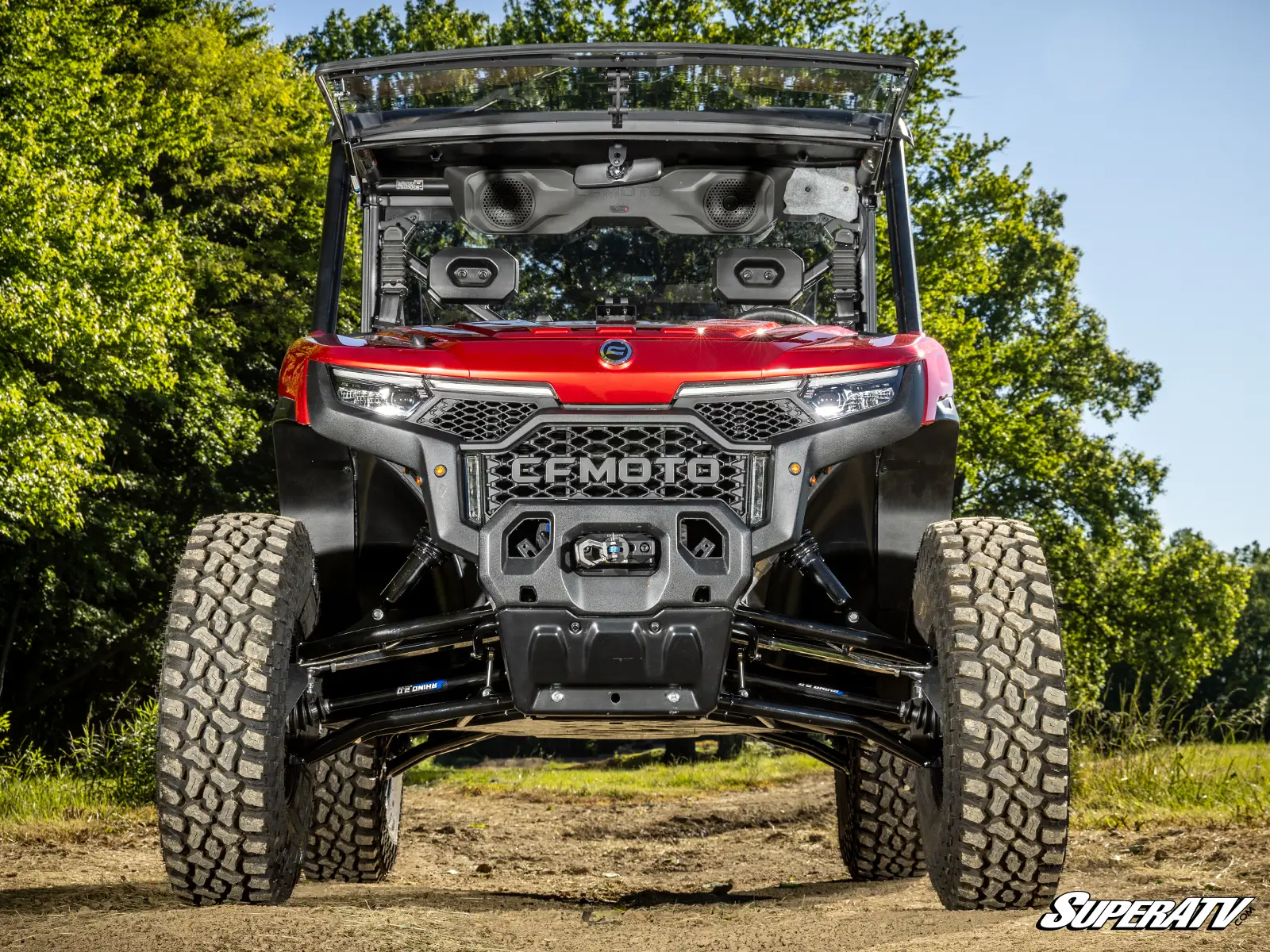

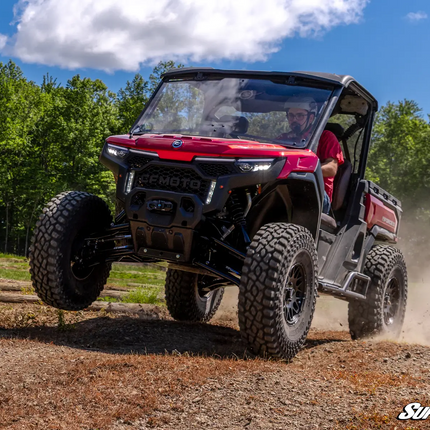

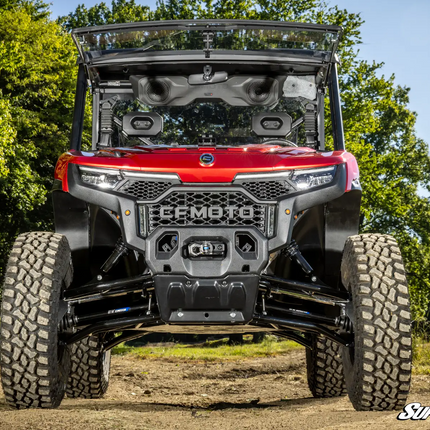

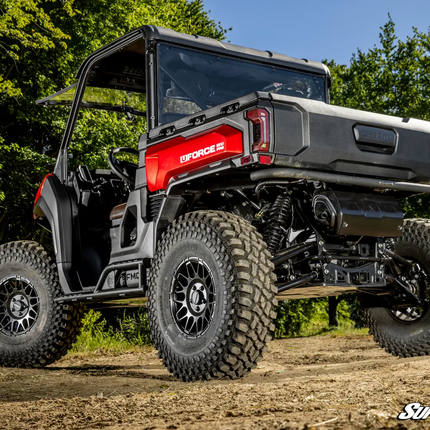

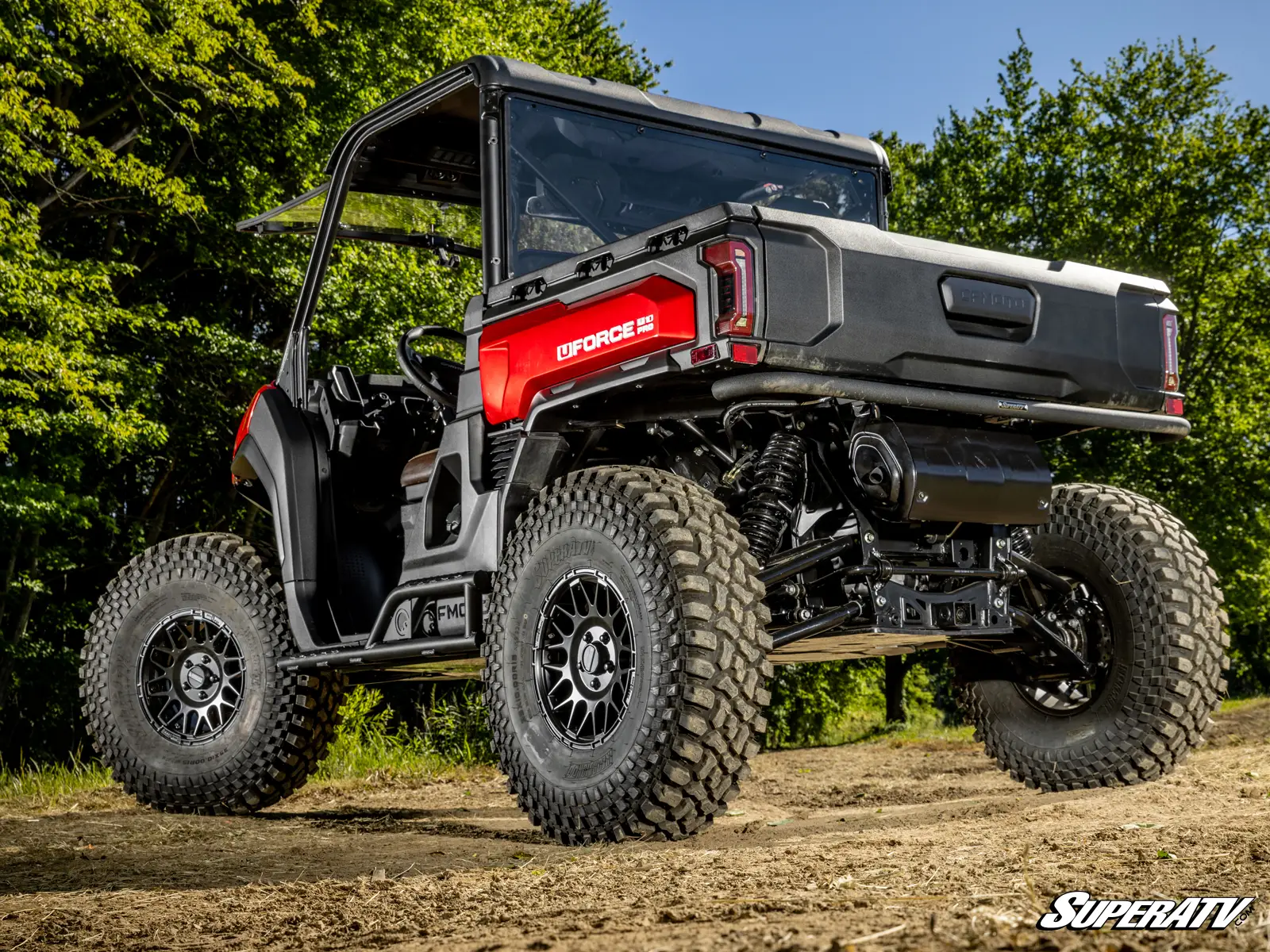

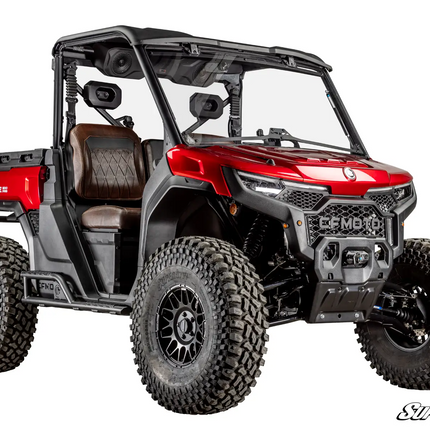

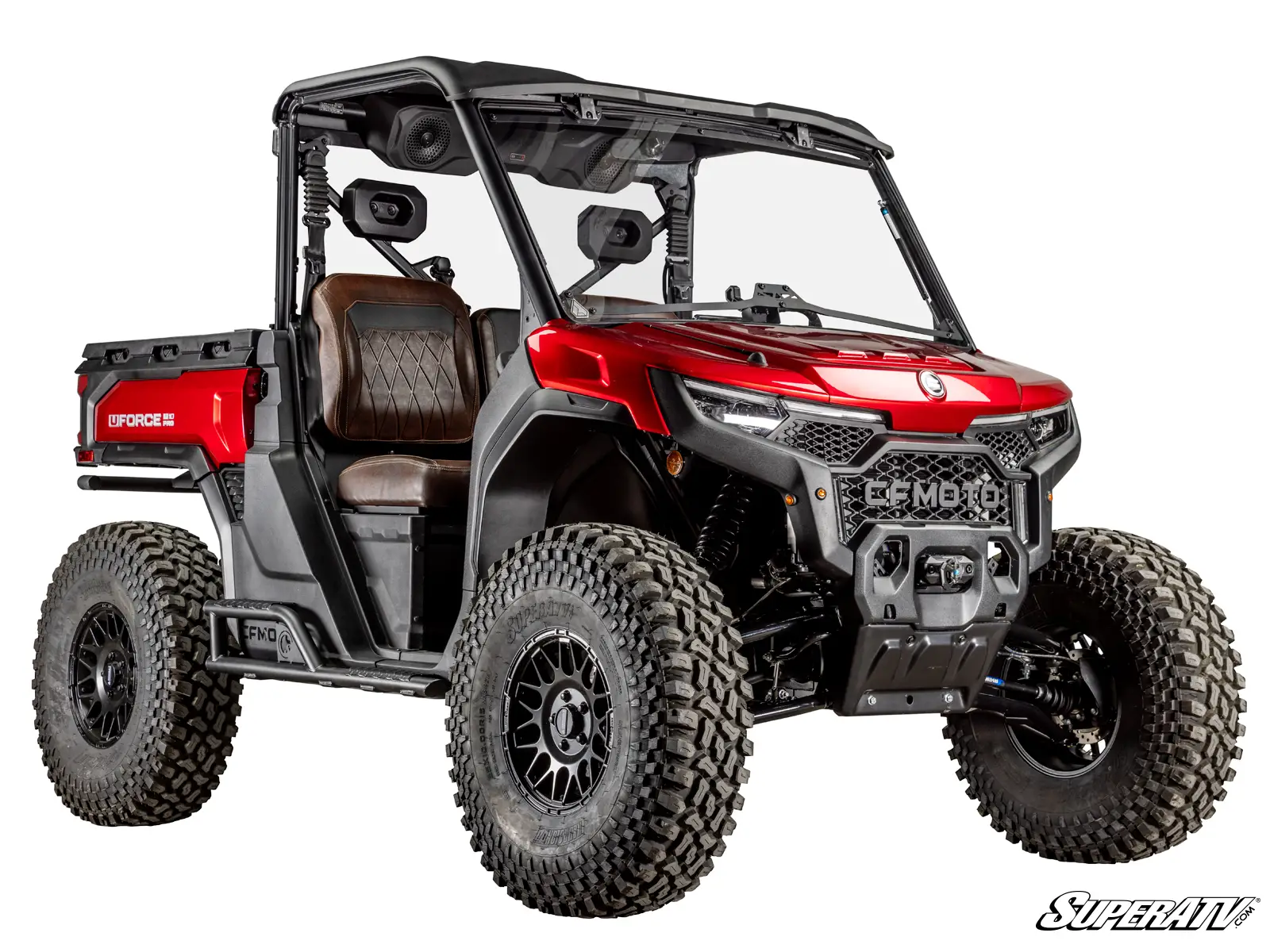

This 4-inch long travel kit is designed for the CFMOTO UForce U10 Pro platform and is intended to improve control, stability and ground clearance in demanding off-road use. It converts the standard suspension and steering layout to a wider long-travel setup with Atlas Pro A-arms, billet aluminium hex tie rods, Rhino 2.0 axles and UHMW bushings, giving the machine additional room for larger tyres and more durable replacement components for hard trail work.

Kit Contents

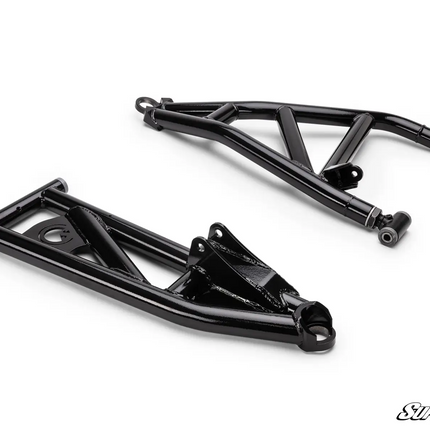

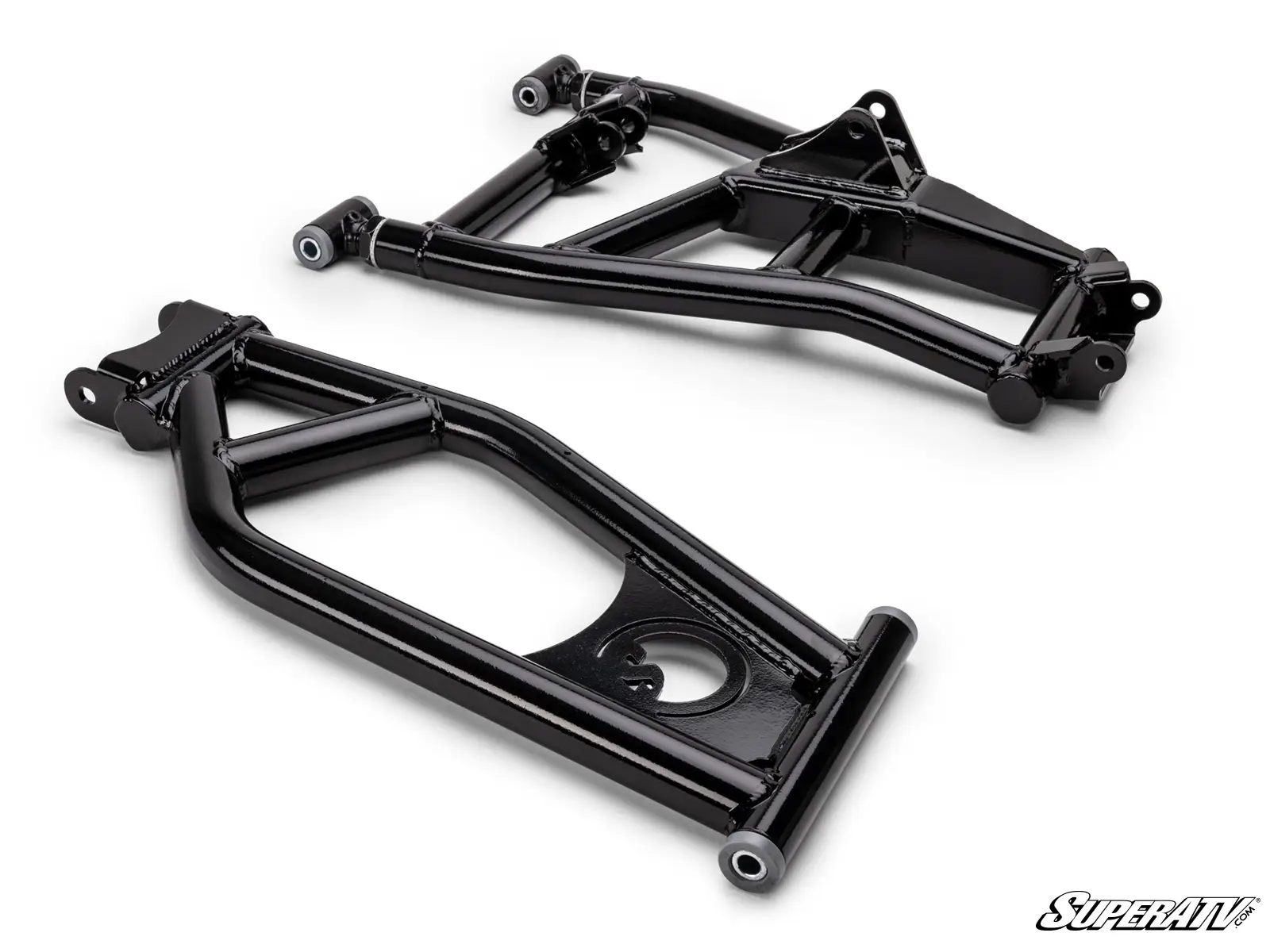

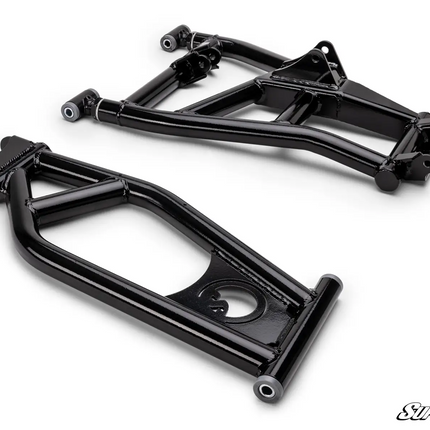

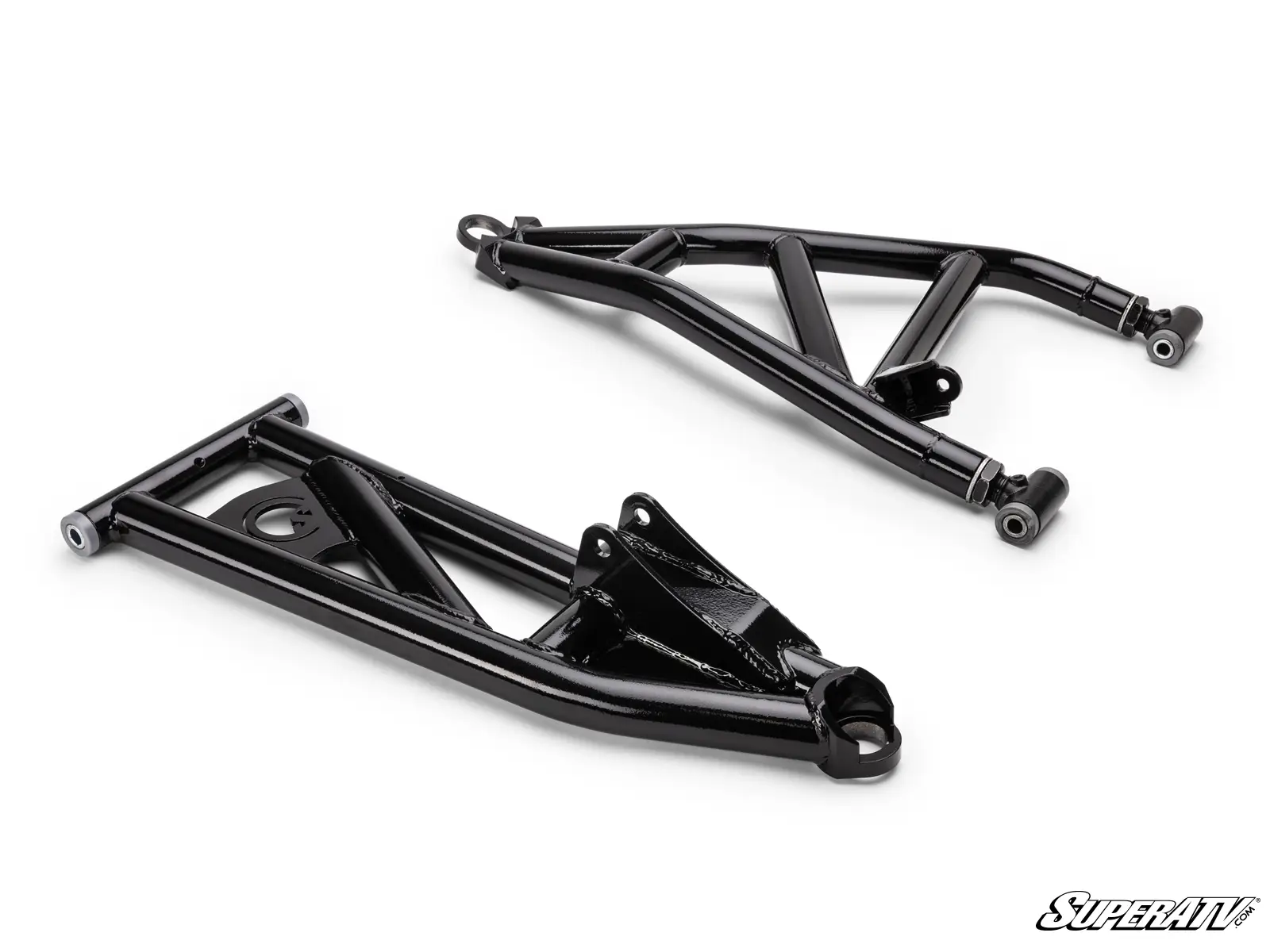

  • Atlas Pro A-arms

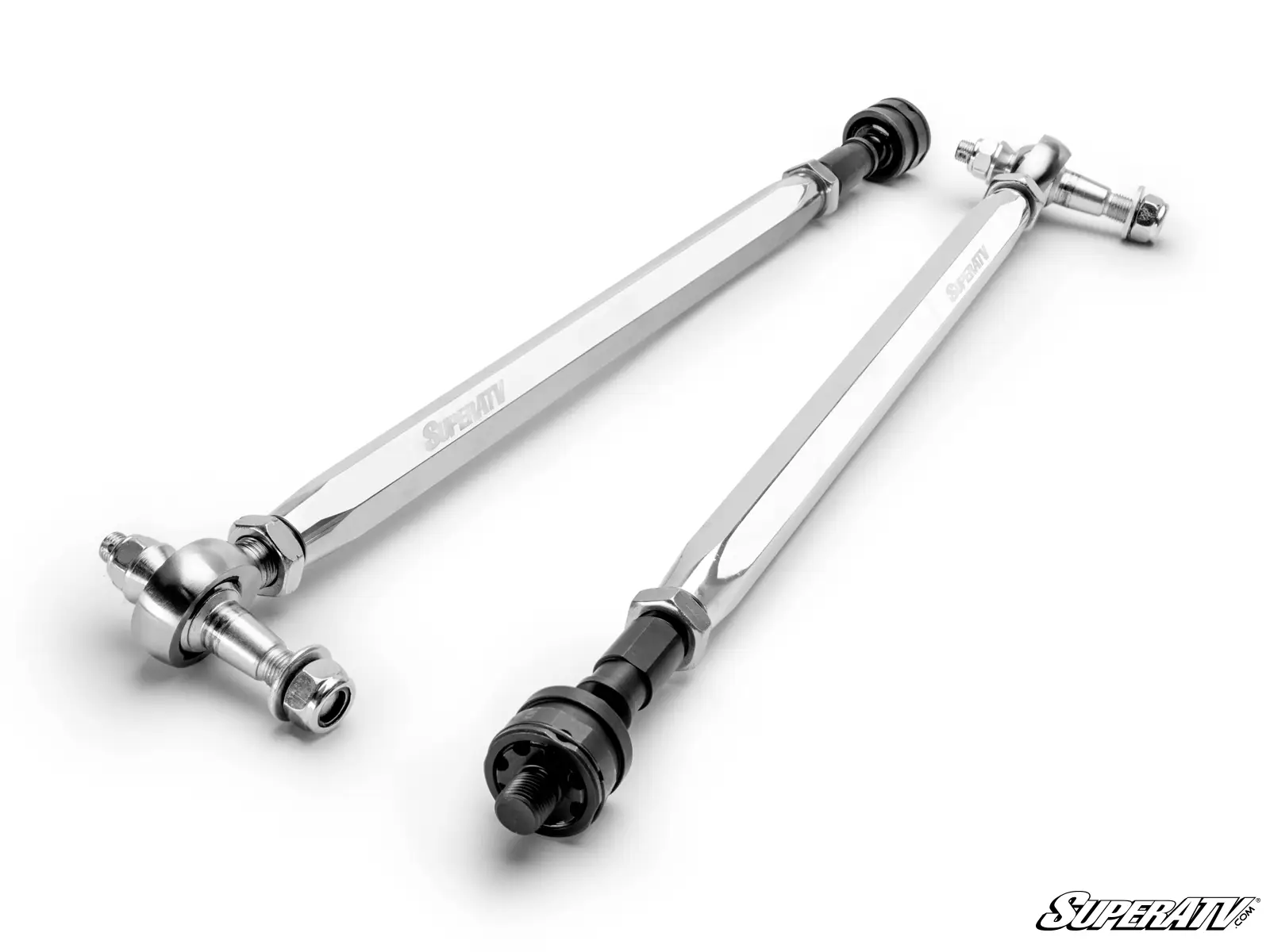

  • Billet aluminium hex tie rods
  • Four Rhino 2.0 axles
  • Preinstalled UHMW bushings
  • Steering stop kit
  • Main installation components are included; ball joints are separate unless ordered preinstalled

Features

  • Long travel conversion for improved control and a more stable stance on rough terrain
  • Creates clearance for larger tyres
  • Suspension, steering and axle components are built for higher strength than standard parts
  • UHMW bushings are self-lubricating for smoother suspension movement and reduced wear
  • Preadjusted pivot blocks help achieve camber set-up
  • Tie rods are adjustable without disassembly
  • Heat-treated chromoly tie rod ends reinforce a common steering stress point
  • High-articulation axle design helps reduce CV temperatures for more consistent operation under hard use
  • UV-resistant powder-coated A-arms
  • Easy-install design
  • Designed to pair with GDP portals
  • Atlas Pro A-arms backed by a lifetime warranty
  • Tie rods backed by a lifetime warranty
  • Rhino 2.0 axles backed by an 18-month warranty
  • CAD-designed components, field tested and lab tested for strength and endurance

Specifications

  • Manufacturer part number: LTK-CF-U10-4-02
  • Adds 4 inches per side, 8 inches overall
  • Increases vehicle width from 64 inches to 72 inches
  • Adds a 1.5-inch offset at the front and rear
  • Accepts tyres up to 35 inches
  • Main tubing diameter: 1.5 inches
  • Atlas Pro A-arm tubing: 38 mm OD
  • Shock mount reinforcement: 1/4-inch wall DOM
  • Remaining A-arm structure: 3.5 mm chromoly tubing
  • Tie rod material: solid 6061-T6 billet aluminium
  • Tie rod configuration: stock-length replacement
  • Tie rod end material: heat-treated chromoly steel monoball
  • Axle material: 4340 chromoly steel
  • Axles feature an increased shaft size
  • Axle heat treatment: proprietary process

Cross-Reference OEM Part Numbers

  • Manufacturer part number: LTK-CF-U10-4-02

Vehicle Fitments

  • CFMOTO UForce U10 Pro — 2025 onwards
  • CFMOTO UForce U10 Pro Highland — 2025 onwards
  • CFMOTO UForce U10 Pro XL — 2025 onwards
  • CFMOTO UForce U10 Pro XL Highland — 2025 onwards
