48cc Engine Kit

Description

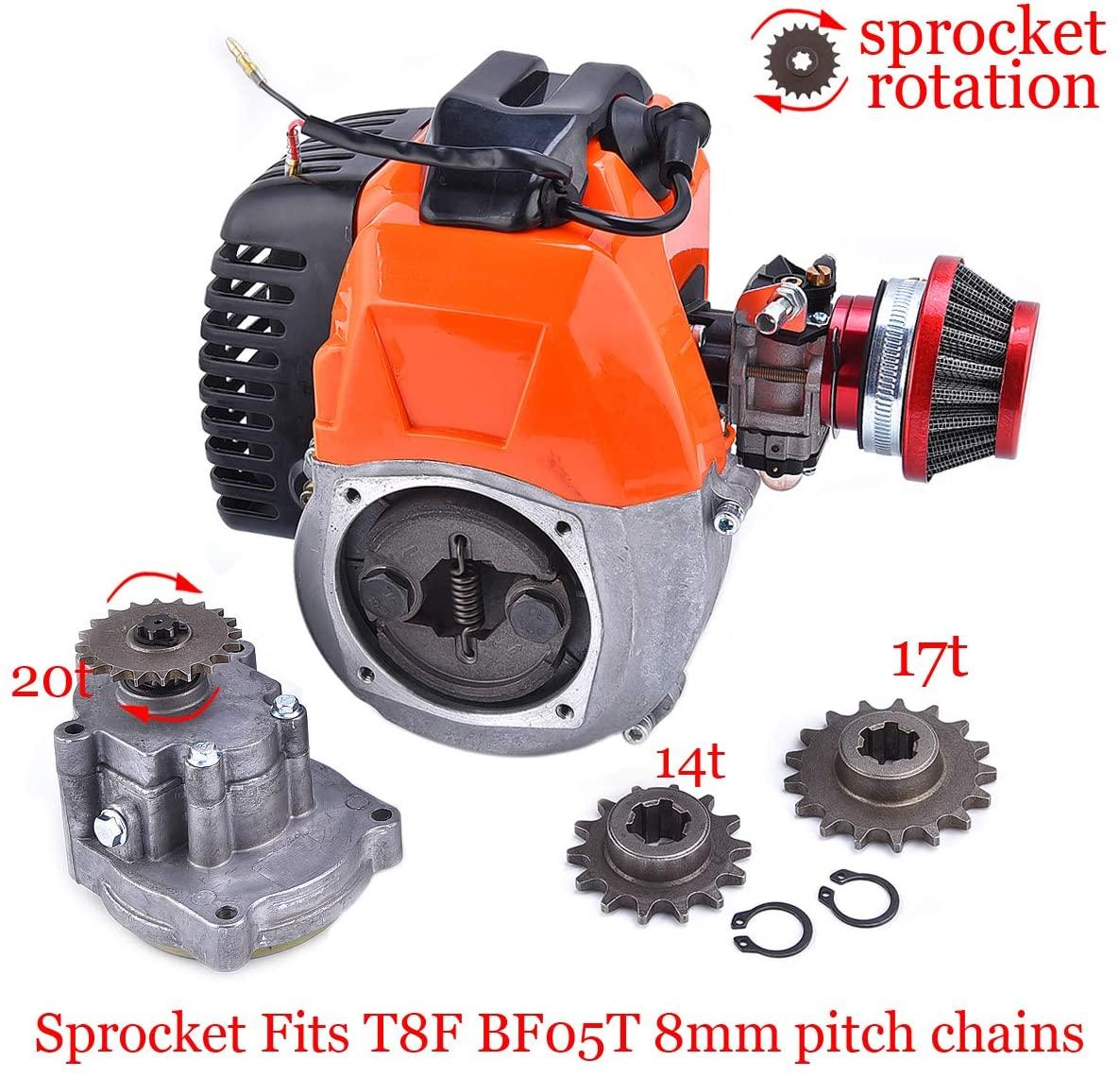

The 49cc 2-Stroke Gas Scooter Engine Throttle Cable and Grip Kit is a compact yet powerful solution for a variety of scooters, pocket bikes, mini choppers, and mini quad ATVs. Featuring a built-in square exhaust muffler, centrifugal clutch, and gearbox, this engine kit is designed for versatility and performance. It includes three sprockets (14T, 17T, and 20T) to fit T8F BF05T 8mm pitch chains, offering multiple ratio and speed options to suit different applications.

Features:

  • 49cc single-cylinder, air-cooled, 2-stroke gasoline engine.

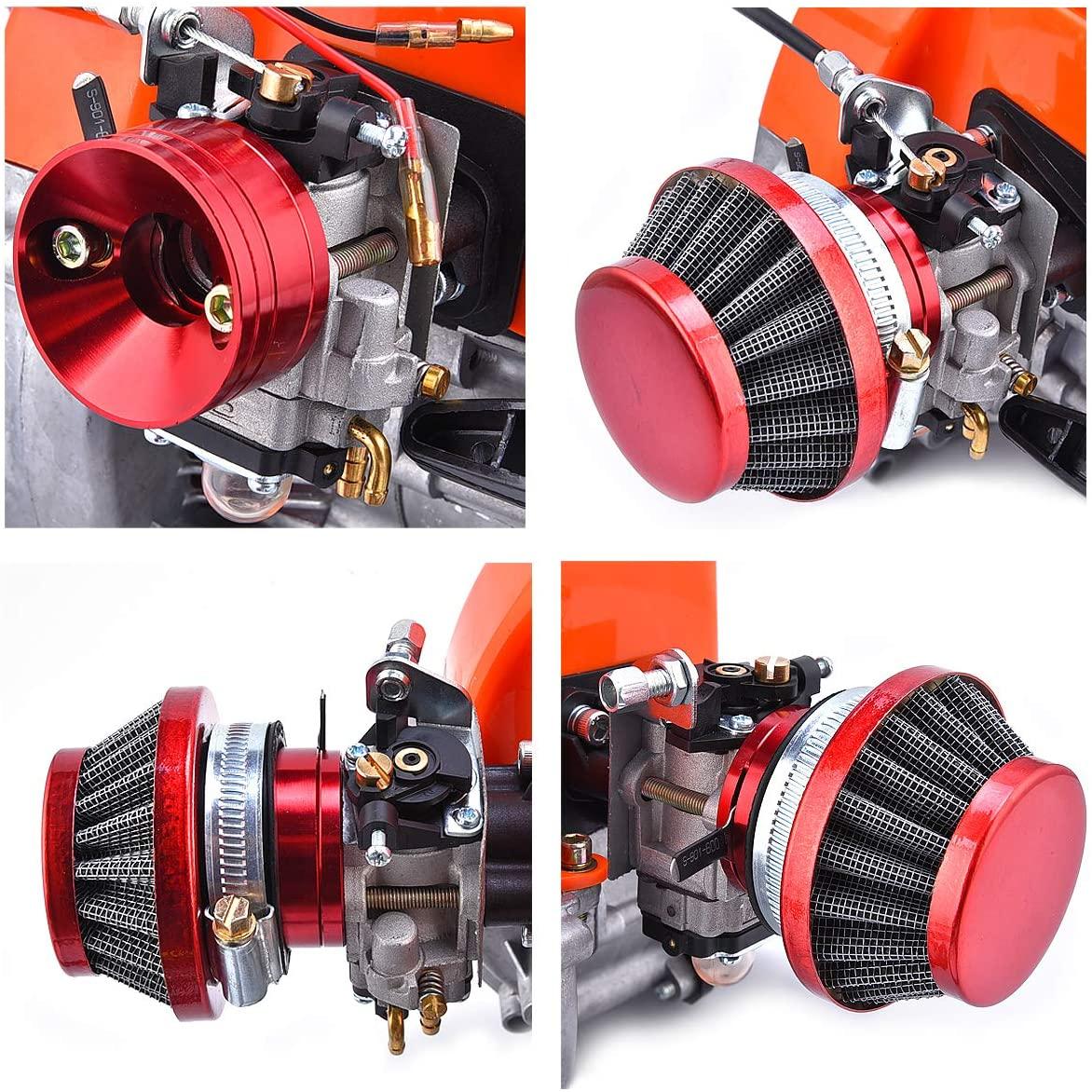

  • Includes racing air filter and red CNC racing intake manifold for enhanced performance.
  • Built-in square exhaust muffler, centrifugal clutch, and gearbox for smooth operation.

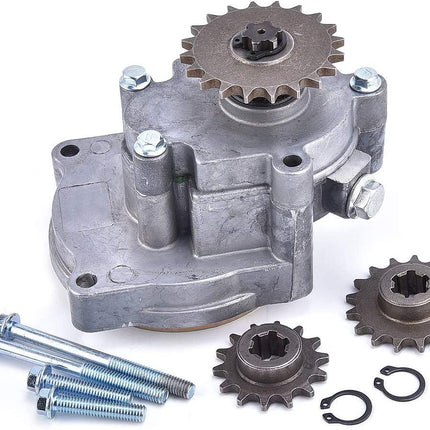

  • Comes with three output sprockets (14T, 17T, and 20T) for varied speed and ratio options.
  • Suitable for a wide range of gas scooters, pocket bikes, mini choppers, and mini ATVs.

Specifications:

  • Engine Type: Single-cylinder, air-cooled, 2-stroke gasoline.
  • Fuel Mixture: 25:1 gasoline/engine oil mix.
  • Displacement: 49cc.
  • Piston Diameter: 44mm.

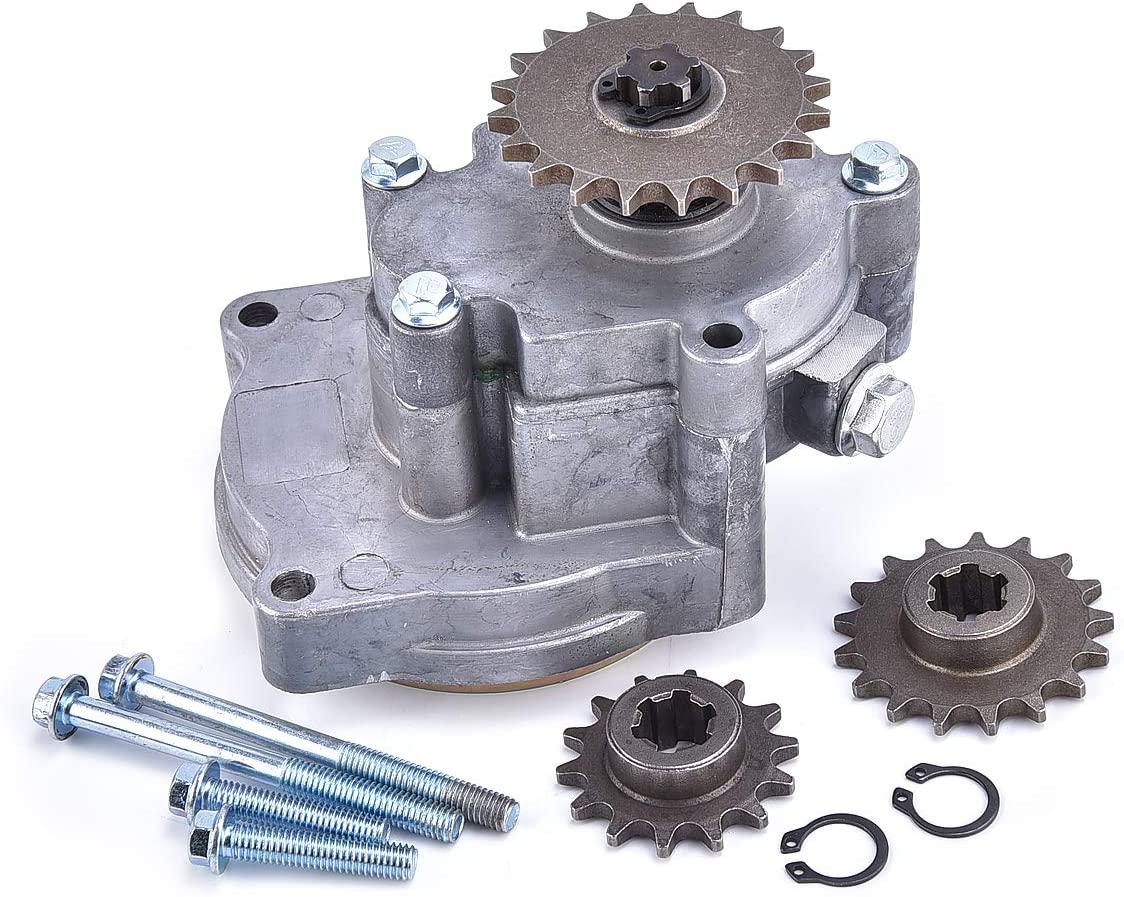

  • Gearbox Reduction Rate: 3.55:1 (with 20T sprocket).

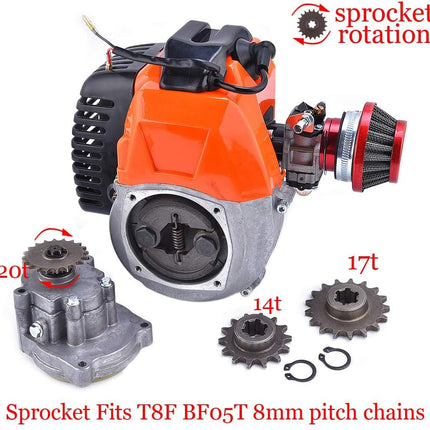

  • Sprocket Sizes: 14T, 17T, and 20T (fit T8F BF05T 8mm pitch chains).
  • Max Power: 1.5 kW at 7000 rpm.
  • Spark Plug Size: BM6A.

Engine Dimensions:

  • Length: 30 cm (11-13/16 inches).
  • Width: 31 cm (12-3/16 inches).
  • Height: 20 cm (7-7/8 inches).
  • Clutch Pad Type: 2-shoe.
  • Weight: 4.5 kg.

Mounting Information:

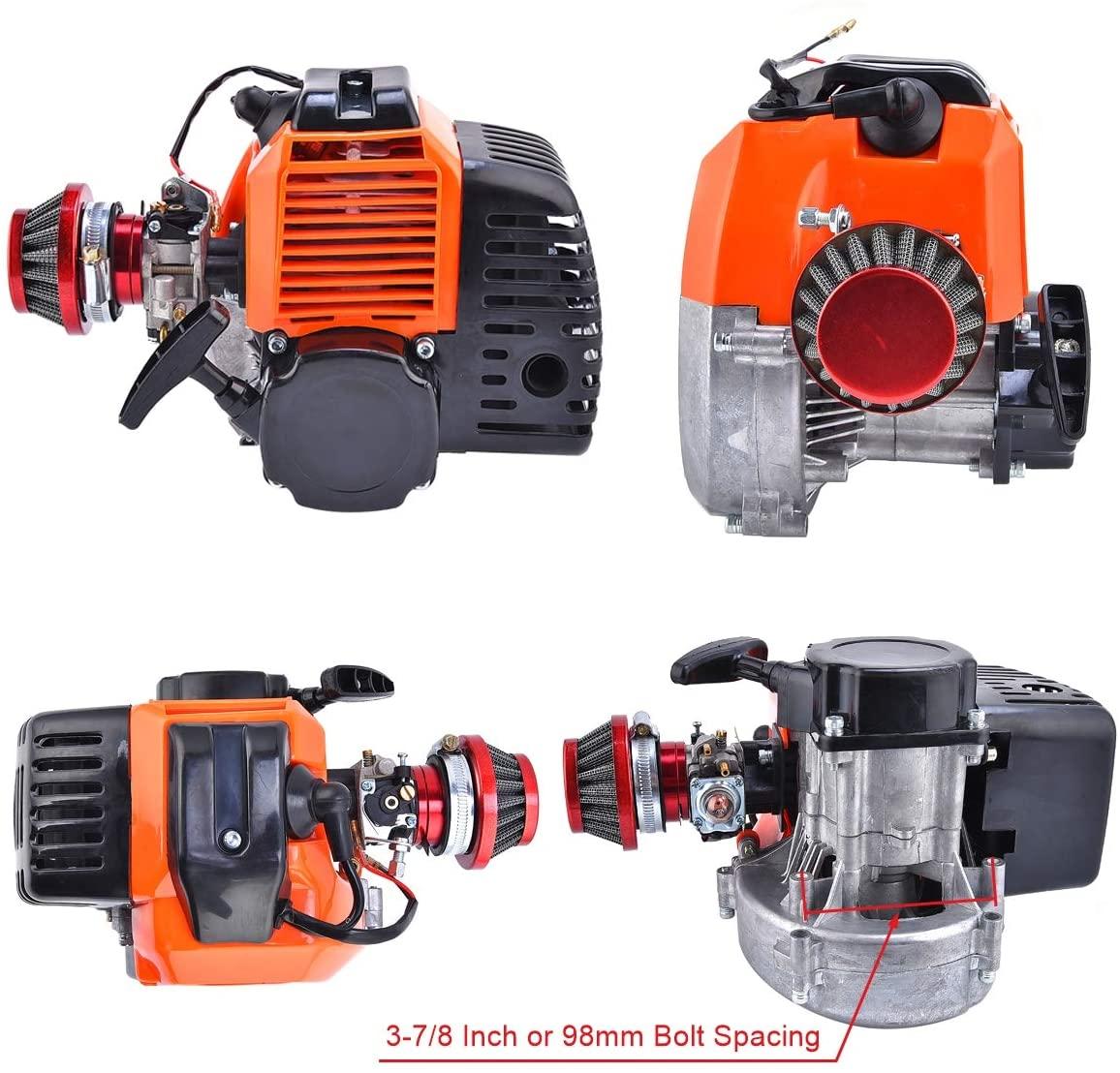

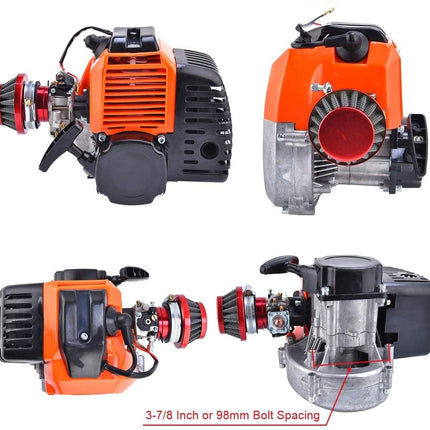

  • Bottom Bracket Mounting Hole Distance: 98 mm (3-7/8 inches).
  • Clutch Mounting Hole Distance: 73 mm (2-7/8 inches).
  • Clutch Mounting Hole Diameter: 5/16 inches.

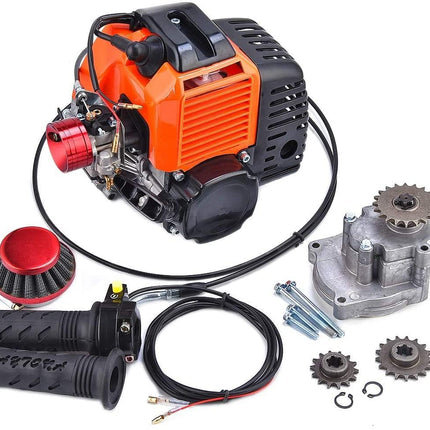

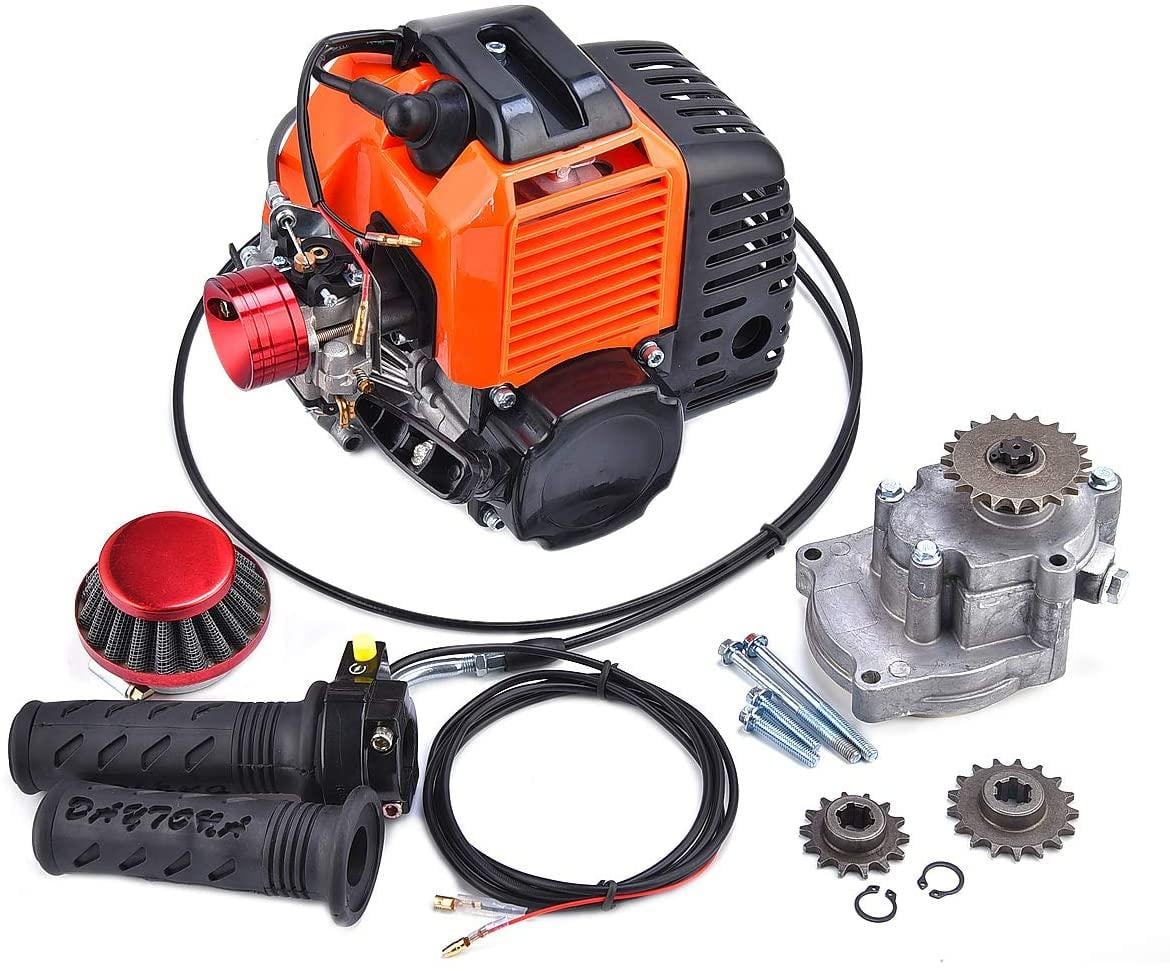

Package Includes:

  • 1 x 49cc engine with racing air filter.

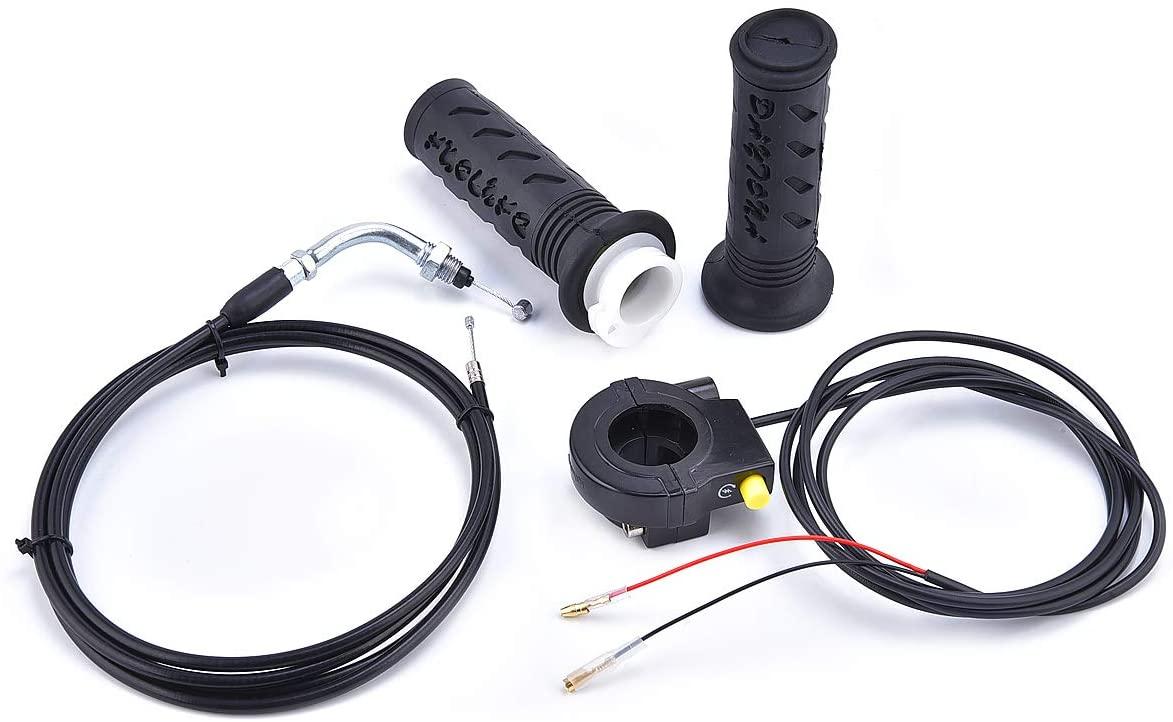

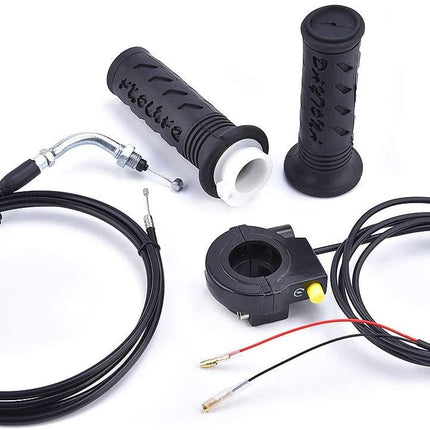

  • 1 x Throttle cable.
  • 1 x Throttle clamp with kill switch.
  • 1 x Left grip.
  • 1 x Right grip.
  • 1 x 14T sprocket.
  • 1 x 17T sprocket.
  • 1 x 20T sprocket.

Note: This engine is ideal for replacement or upgrade projects where a compact, high-performance motor is required. Ensure compatibility with your scooter or project before purchasing.
