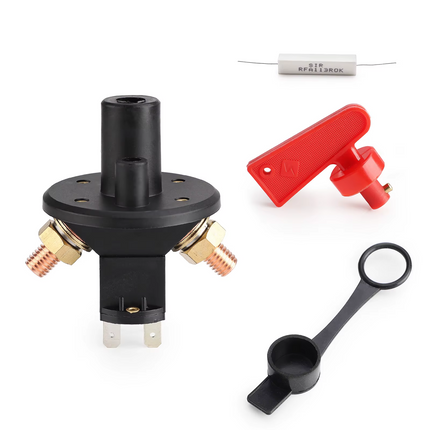

Battery Isolator Kill Switch 12/24V 175A Keyed Fia Type 6-TERMINAL SSW2802 240-01127

Description

This battery master isolator kill switch is a heavy-duty keyed disconnect switch designed to isolate battery power on 12V and 24V electrical systems. It is intended for applications where the power supply must be shut off quickly and securely, including motorsport, marine, off-road and utility use, and features a removable key with a protective cover to help limit dirt and moisture ingress.

Features

  • Master battery cut-off switch for isolating vehicle or equipment electrical power
  • Removable key allows the switch to be secured in the off position when required
  • Designed to cut engine and electrical circuits and help prevent engine run-on when wired accordingly
  • Terminal and resistor arrangement supports alternator protection during switch-off
  • Protective rubber cover helps reduce dirt ingress when the key is removed
  • Suitable for motorsport, marine, snow-plough and off-road equipment applications

Specifications

  • Voltage: 12V / 24V
  • Current rating: 175A continuous
  • Terminals: 6 (2x 10mm For battery, 4 blade terminals for ignition/alternator)
  • Terminal size: 10 mm
  • Operation: 2-position, 1-way
  • Contact type: Normally open
  • Mounting style: Surface mount
  • Connector type: Screw connectors
  • Terminal style: Marine
  • Ingress protection: IP65

Kit Contents

  • 1 x battery isolator cut-off switch

Cross-Reference OEM Part Numbers

  • DB Electrical: SSW2802
  • MPN: 240-01127

Battery Isolator Kill Switch 12/24V 175A Keyed Fia Type 6-TERMINAL SSW2802 240-01127

Product form

This battery master isolator kill switch is a heavy-duty keyed disconnect switch designed to isolate battery power on 12V and... Read more

14 in stock 1-2 business days

£26.34 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-9600.AA2
    Barcode: 0120000120628

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This battery master isolator kill switch is a heavy-duty keyed disconnect switch designed to isolate battery power on 12V and 24V electrical systems. It is intended for applications where the power supply must be shut off quickly and securely, including motorsport, marine, off-road and utility use, and features a removable key with a protective cover to help limit dirt and moisture ingress.

    Features

    • Master battery cut-off switch for isolating vehicle or equipment electrical power
    • Removable key allows the switch to be secured in the off position when required
    • Designed to cut engine and electrical circuits and help prevent engine run-on when wired accordingly
    • Terminal and resistor arrangement supports alternator protection during switch-off
    • Protective rubber cover helps reduce dirt ingress when the key is removed
    • Suitable for motorsport, marine, snow-plough and off-road equipment applications

    Specifications

    • Voltage: 12V / 24V
    • Current rating: 175A continuous
    • Terminals: 6 (2x 10mm For battery, 4 blade terminals for ignition/alternator)
    • Terminal size: 10 mm
    • Operation: 2-position, 1-way
    • Contact type: Normally open
    • Mounting style: Surface mount
    • Connector type: Screw connectors
    • Terminal style: Marine
    • Ingress protection: IP65

    Kit Contents

    • 1 x battery isolator cut-off switch

    Cross-Reference OEM Part Numbers

    • DB Electrical: SSW2802
    • MPN: 240-01127
