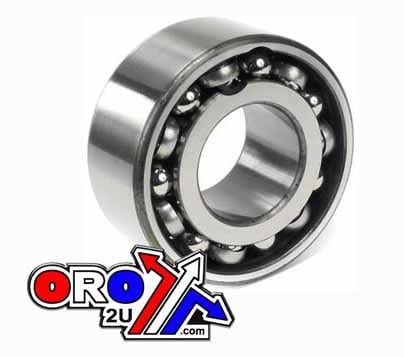

BEARING 3205 C3 KOYO 25x52x20.60, 3205C3-ZKL / Angular Contact Bearing

Description

High-performance 3205 C3 double-row angular contact ball bearing (25x52x20.6).

Designed with a polyamide cage and C3 clearance, this bearing offers superior support for combined radial and axial loads while providing a rigid arrangement to accommodate tilting moments effectively.

Features:

  • Double-row angular contact design for managing combined loads.
  • Polyamide cage for smooth operation and durability.
  • C3 clearance for enhanced performance in high-speed or thermal expansion applications.
  • Rigid bearing arrangement, suitable for applications with tilting moments.

Specifications:

  • Inner Diameter (d): 25mm.
  • Outer Diameter (D): 52mm.
  • Width (B): 20.6mm.
  • Dynamic Load: 21.6kN.
  • Static Load: 14.3kN.
  • Fatigue Load Limit: 0.6kN.
  • Reference Speed: 12,000 r/min.
  • Limiting Speed: 12,000 r/min.
  • Mass: 0.18kg.

Additional Dimensions:

  • d2: 32.7mm.
  • D2: 45.9mm.
  • r1r2 Min: 1mm.
  • a: 30mm.
  • da Min: 30.6mm.
  • Da Max: 46.4mm.
  • ra Max: 1mm.

Applications:

  • Suitable for use in machinery and equipment requiring robust performance under combined loading conditions.

Part Number: 56-505

Koyo, a globally respected bearing manufacturer and part of JTEKT Corporation.

Engineered to the highest precision standards, this genuine Japanese-made bearing delivers exceptional durability, ultra-smooth rotation, and long operational life — making it ideal for professional, industrial, and high-performance applications.

BEARING 3205 C3 KOYO 25x52x20.60, 3205C3-ZKL / Angular Contact Bearing

Product form

High-performance 3205 C3 double-row angular contact ball bearing (25x52x20.6). Designed with a polyamide cage and C3 clearance, this bearing offers... Read more

16 in stock 1-2 business days

£36.93 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-505.C3.KOYO
    Barcode: 4549250123818

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    High-performance 3205 C3 double-row angular contact ball bearing (25x52x20.6).

    Designed with a polyamide cage and C3 clearance, this bearing offers superior support for combined radial and axial loads while providing a rigid arrangement to accommodate tilting moments effectively.

    Features:

    • Double-row angular contact design for managing combined loads.
    • Polyamide cage for smooth operation and durability.
    • C3 clearance for enhanced performance in high-speed or thermal expansion applications.
    • Rigid bearing arrangement, suitable for applications with tilting moments.

    Specifications:

    • Inner Diameter (d): 25mm.
    • Outer Diameter (D): 52mm.
    • Width (B): 20.6mm.
    • Dynamic Load: 21.6kN.
    • Static Load: 14.3kN.
    • Fatigue Load Limit: 0.6kN.
    • Reference Speed: 12,000 r/min.
    • Limiting Speed: 12,000 r/min.
    • Mass: 0.18kg.

    Additional Dimensions:

    • d2: 32.7mm.
    • D2: 45.9mm.
    • r1r2 Min: 1mm.
    • a: 30mm.
    • da Min: 30.6mm.
    • Da Max: 46.4mm.
    • ra Max: 1mm.

    Applications:

    • Suitable for use in machinery and equipment requiring robust performance under combined loading conditions.

    Part Number: 56-505

    Koyo, a globally respected bearing manufacturer and part of JTEKT Corporation.

    Engineered to the highest precision standards, this genuine Japanese-made bearing delivers exceptional durability, ultra-smooth rotation, and long operational life — making it ideal for professional, industrial, and high-performance applications.
