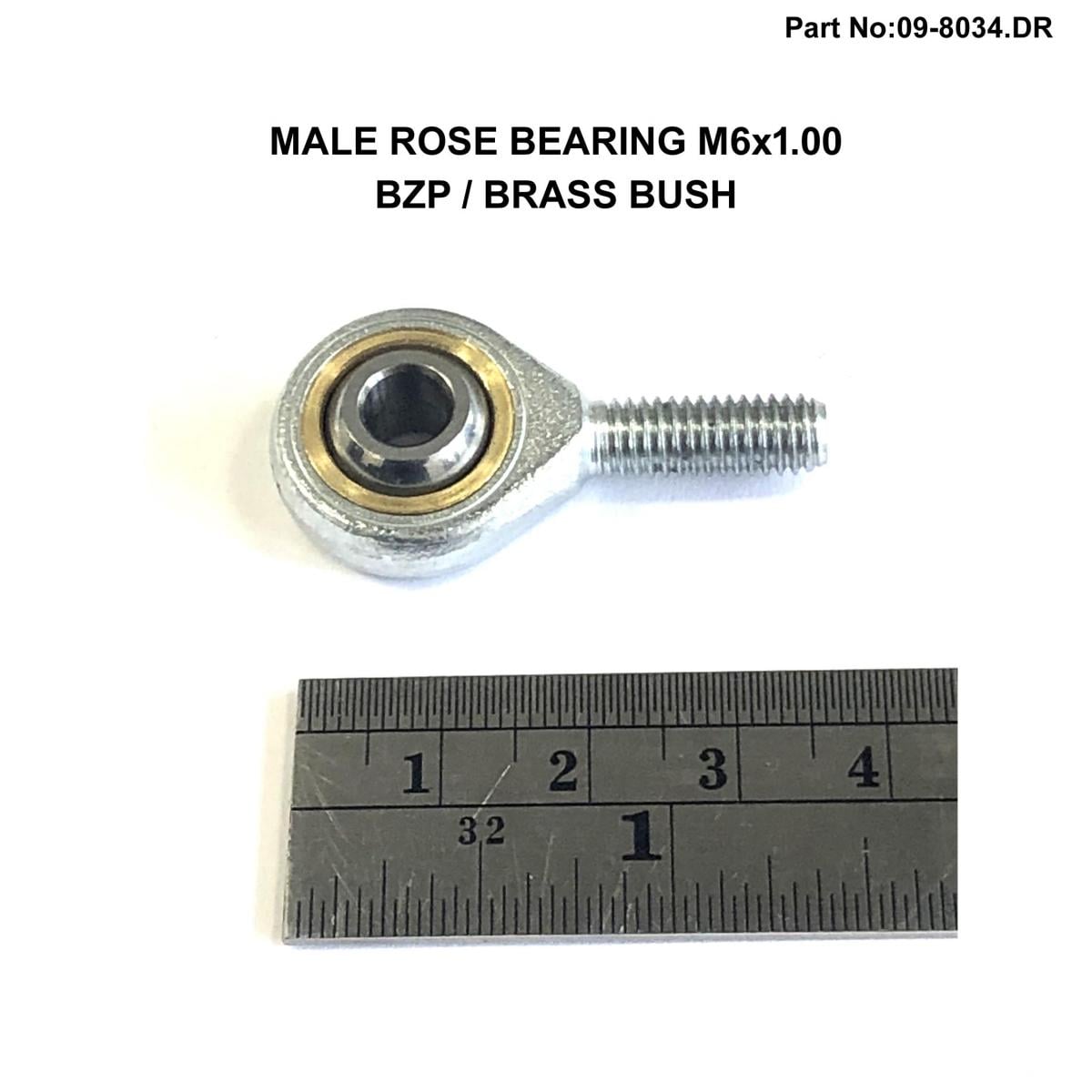

Bearing Rod End M6x1.00 FIR 54813055100 54813055000 CMP6 / Ka6 03 Male Rose Each

Description

M6 male rose joint for rear brake control assemblies, used as a swivel head linkage component on selected KTM, Husqvarna and related off-road motorcycle rear brake systems. It provides a pivoting connection point within the rear brake control mechanism and is suitable for applications listed under verified rear brake control fitments.

Features

  • Used in rear brake control assemblies
  • Provides a swivel linkage connection for brake pedal operation
  • Suitable for selected off-road motorcycle rear brake applications
  • Male rose joint design for linkage connection

Specifications

  • Thread size: M6 x 1.00
  • Rose joint type: Male
  • Swivel head type: KA6 03
  • Associated collar screw size: M6 x 20
  • Associated collar screw drive: TX30
  • Associated nut standard: DIN 0985-M6

Cross-Reference OEM Part Numbers

  • 54813055000
  • 54813055100
  • KA6 03
  • CMP6
  • 0025060206S
  • 0985060003

Vehicle Fitments

Husqvarna (Rear)

  • FE 250 (2013)
  • TE 250 (2013)
  • TE 300 (2013)
  • FE 350 (2013)
  • FE 501 (2013)

KTM (Rear)

  • 50 SX (2006-2008, 2010-2011)
  • 50 SX Junior (2009)
  • 50 SX Mini (2009-2011)
  • 50 SX Pro Senior LC (2004-2005)
  • 65 SX (2009-2011)
  • 65 XC (2009)
  • 85 SX (2004-2005, 2010-2012, 2014-2018, 2021)
  • 85 SX 17/14 (2006-2008, 2013, 2019-2020, 2022)
  • 85 SX 19/16 (2007-2008, 2019-2020, 2022)
  • 85 XC (2008-2009)
  • 105 SX (2004, 2007-2011)
  • 105 XC (2008-2009)
  • 125 EXC (2004-2005)
  • 125 EXC Sixdays (2004-2005)
  • 125 SX (2004-2022)
  • 125 SX Tyla Rattray (2005)
  • 125 SXS (2004-2005)
  • 125 XC (2021-2022)
  • 144 SX (2007-2008)
  • 150 SX (2009-2022)
  • 150 XC (2010-2014)
  • 150 XC-W (2017-2019)
  • 150 XC-W TPI (2020-2021)
  • 200 EXC (2004-2005)
  • 200 SX (2004)
  • 200 XC (2006-2009)
  • 200 XC-W (2006-2016)
  • 200 XC-W Chassis (2013)
  • 250 EXC (2004-2005)
  • 250 EXC Factory Racing (2005)
  • 250 EXC Racing (2004-2005)
  • 250 EXC Sixdays (2004-2005)
  • 250 EXC-F (2017-2019)
  • 250 Freeride (2016)
  • 250 SX (2003-2022)
  • 250 SX-F (2005-2022)
  • 250 SX-F Factory Edition (2015-2016)
  • 250 SXS (2003-2005)
  • 250 XC (2006-2014, 2018-2019)
  • 250 XC TPI (2020-2022)
  • 250 XC-F (2007-2009, 2011-2022)
  • 250 XCF-W (2007-2016)
  • 250 XC-W (2006-2018)
  • 250 XC-W TPI (2018-2021)
  • 300 EXC (2004-2005)
  • 300 EXC Sixdays (2005)
  • 300 MXC (2004-2005)
  • 300 XC (2006-2014, 2017-2019)
  • 300 XC TPI (2020-2022)
  • 300 XC-W (2006-2018)
  • 300 XC-W Six Days (2017-2018)
  • 300 XC-W Sixdays (2014-2015)
  • 300 XC-W TPI (2019-2021)
  • 300 XC-W TPI Erzbergrodeo (2020)
  • 300 XC-W TPI Six Days (2020)
  • 350 EXC-F (2012-2020)
  • 350 SX-F (2011-2022)
  • 350 XC-F (2012-2022)
  • 350 XCF-W (2012-2016, 2021)
  • 350 XCF-W Sixdays (2014-2016)
  • 400 EXC Racing (2004-2005)
  • 400 EXC-G Racing (2006)
  • 400 XC-W (2007, 2009-2010)
  • 450 EXC (2011)
  • 450 EXC Racing (2004-2005)
  • 450 EXC Racing Sixdays (2004-2005)
  • 450 EXC-G Racing (2006)
  • 450 EXC-R (2008)
  • 450 EXC-F (2020)
  • 450 EXC-F Six Days (2017, 2019)
  • 450 MXC Racing (2004-2005)
  • 450 SMR (2004-2006, 2008, 2012, 2021)
  • 450 Supermoto Factory Replica (2004)
  • 450 SX (2006)
  • 450 SX ATV (2009)
  • 450 SX Racing (2004-2005)
  • 450 SX Steve Ramon (2005)
  • 450 SX-F (2007-2022)
  • 450 SX-F Factory Edition (2015-2016, 2018-2019)
  • 450 SX-F Factory Replica (2012)
  • 450 SXS (2005)
  • 450 SXS Racing (2004)
  • 450 XC (2007)
  • 450 XC ATV (2008-2009)
  • 450 XC-F (2008-2009, 2013-2022)
  • 450 XC-G Racing (2006)
  • 450 XC-W (2007, 2009-2021)
  • 450 XCR-W (2008)
  • 500 EXC (2012-2016)
  • 500 EXC Sixdays (2016)
  • 500 EXC-F (2017-2020)
  • 500 EXC-F Chassis (2021)
  • 500 EXC-F Six Days (2020)
  • 500 EXC-F Six Days Chassis (2021)
  • 500 XCF-W (2021)
  • 500 XC-W (2012-2016)
  • 505 SX ATV (2009)
  • 505 SX-F (2008)
  • 505 SX-F Preseries (2007)
  • 505 XC-F (2008-2009)
  • 525 EXC Racing (2004-2005)
  • 525 EXC Racing Sixdays (2004-2005)
  • 525 EXC Racing (2007)
  • 525 EXC-G Racing (2006)
  • 525 MXC Racing (2004-2005)
  • 525 SC-G Racing (2006)
  • 525 SMR (2004-2005)
  • 525 SX (2006)
  • 525 SX Racing (2004-2005)
  • 525 SX Supermoto (2004)
  • 525 XC (2007)
  • 525 XC ATV (2008-2009)
  • 525 XC-W (2007)
  • 530 EXC (2009, 2011)
  • 530 EXC-R (2008)
  • 530 XC-W (2009)
  • 530 XC-W (2011)
  • 530 XCR-W (2008)
  • 540 SXS (2005)
  • 540 SXS Racing (2004)
  • 560 SMR (2006)
  • Freeride 250 R (2015)

Bearing Rod End M6x1.00 FIR 54813055100 54813055000 CMP6 / Ka6 03 Male Rose Each

Product form

M6 male rose joint for rear brake control assemblies, used as a swivel head linkage component on selected KTM, Husqvarna... Read more

2034 in stock 1-2 business days

£6.58 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 09-8034.FIR

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    M6 male rose joint for rear brake control assemblies, used as a swivel head linkage component on selected KTM, Husqvarna and related off-road motorcycle rear brake systems. It provides a pivoting connection point within the rear brake control mechanism and is suitable for applications listed under verified rear brake control fitments.

    Features

    • Used in rear brake control assemblies
    • Provides a swivel linkage connection for brake pedal operation
    • Suitable for selected off-road motorcycle rear brake applications
    • Male rose joint design for linkage connection

    Specifications

    • Thread size: M6 x 1.00
    • Rose joint type: Male
    • Swivel head type: KA6 03
    • Associated collar screw size: M6 x 20
    • Associated collar screw drive: TX30
    • Associated nut standard: DIN 0985-M6

    Cross-Reference OEM Part Numbers

    • 54813055000
    • 54813055100
    • KA6 03
    • CMP6
    • 0025060206S
    • 0985060003

    Vehicle Fitments

    Husqvarna (Rear)

    • FE 250 (2013)
    • TE 250 (2013)
    • TE 300 (2013)
    • FE 350 (2013)
    • FE 501 (2013)

    KTM (Rear)

    • 50 SX (2006-2008, 2010-2011)
    • 50 SX Junior (2009)
    • 50 SX Mini (2009-2011)
    • 50 SX Pro Senior LC (2004-2005)
    • 65 SX (2009-2011)
    • 65 XC (2009)
    • 85 SX (2004-2005, 2010-2012, 2014-2018, 2021)
    • 85 SX 17/14 (2006-2008, 2013, 2019-2020, 2022)
    • 85 SX 19/16 (2007-2008, 2019-2020, 2022)
    • 85 XC (2008-2009)
    • 105 SX (2004, 2007-2011)
    • 105 XC (2008-2009)
    • 125 EXC (2004-2005)
    • 125 EXC Sixdays (2004-2005)
    • 125 SX (2004-2022)
    • 125 SX Tyla Rattray (2005)
    • 125 SXS (2004-2005)
    • 125 XC (2021-2022)
    • 144 SX (2007-2008)
    • 150 SX (2009-2022)
    • 150 XC (2010-2014)
    • 150 XC-W (2017-2019)
    • 150 XC-W TPI (2020-2021)
    • 200 EXC (2004-2005)
    • 200 SX (2004)
    • 200 XC (2006-2009)
    • 200 XC-W (2006-2016)
    • 200 XC-W Chassis (2013)
    • 250 EXC (2004-2005)
    • 250 EXC Factory Racing (2005)
    • 250 EXC Racing (2004-2005)
    • 250 EXC Sixdays (2004-2005)
    • 250 EXC-F (2017-2019)
    • 250 Freeride (2016)
    • 250 SX (2003-2022)
    • 250 SX-F (2005-2022)
    • 250 SX-F Factory Edition (2015-2016)
    • 250 SXS (2003-2005)
    • 250 XC (2006-2014, 2018-2019)
    • 250 XC TPI (2020-2022)
    • 250 XC-F (2007-2009, 2011-2022)
    • 250 XCF-W (2007-2016)
    • 250 XC-W (2006-2018)
    • 250 XC-W TPI (2018-2021)
    • 300 EXC (2004-2005)
    • 300 EXC Sixdays (2005)
    • 300 MXC (2004-2005)
    • 300 XC (2006-2014, 2017-2019)
    • 300 XC TPI (2020-2022)
    • 300 XC-W (2006-2018)
    • 300 XC-W Six Days (2017-2018)
    • 300 XC-W Sixdays (2014-2015)
    • 300 XC-W TPI (2019-2021)
    • 300 XC-W TPI Erzbergrodeo (2020)
    • 300 XC-W TPI Six Days (2020)
    • 350 EXC-F (2012-2020)
    • 350 SX-F (2011-2022)
    • 350 XC-F (2012-2022)
    • 350 XCF-W (2012-2016, 2021)
    • 350 XCF-W Sixdays (2014-2016)
    • 400 EXC Racing (2004-2005)
    • 400 EXC-G Racing (2006)
    • 400 XC-W (2007, 2009-2010)
    • 450 EXC (2011)
    • 450 EXC Racing (2004-2005)
    • 450 EXC Racing Sixdays (2004-2005)
    • 450 EXC-G Racing (2006)
    • 450 EXC-R (2008)
    • 450 EXC-F (2020)
    • 450 EXC-F Six Days (2017, 2019)
    • 450 MXC Racing (2004-2005)
    • 450 SMR (2004-2006, 2008, 2012, 2021)
    • 450 Supermoto Factory Replica (2004)
    • 450 SX (2006)
    • 450 SX ATV (2009)
    • 450 SX Racing (2004-2005)
    • 450 SX Steve Ramon (2005)
    • 450 SX-F (2007-2022)
    • 450 SX-F Factory Edition (2015-2016, 2018-2019)
    • 450 SX-F Factory Replica (2012)
    • 450 SXS (2005)
    • 450 SXS Racing (2004)
    • 450 XC (2007)
    • 450 XC ATV (2008-2009)
    • 450 XC-F (2008-2009, 2013-2022)
    • 450 XC-G Racing (2006)
    • 450 XC-W (2007, 2009-2021)
    • 450 XCR-W (2008)
    • 500 EXC (2012-2016)
    • 500 EXC Sixdays (2016)
    • 500 EXC-F (2017-2020)
    • 500 EXC-F Chassis (2021)
    • 500 EXC-F Six Days (2020)
    • 500 EXC-F Six Days Chassis (2021)
    • 500 XCF-W (2021)
    • 500 XC-W (2012-2016)
    • 505 SX ATV (2009)
    • 505 SX-F (2008)
    • 505 SX-F Preseries (2007)
    • 505 XC-F (2008-2009)
    • 525 EXC Racing (2004-2005)
    • 525 EXC Racing Sixdays (2004-2005)
    • 525 EXC Racing (2007)
    • 525 EXC-G Racing (2006)
    • 525 MXC Racing (2004-2005)
    • 525 SC-G Racing (2006)
    • 525 SMR (2004-2005)
    • 525 SX (2006)
    • 525 SX Racing (2004-2005)
    • 525 SX Supermoto (2004)
    • 525 XC (2007)
    • 525 XC ATV (2008-2009)
    • 525 XC-W (2007)
    • 530 EXC (2009, 2011)
    • 530 EXC-R (2008)
    • 530 XC-W (2009)
    • 530 XC-W (2011)
    • 530 XCR-W (2008)
    • 540 SXS (2005)
    • 540 SXS Racing (2004)
    • 560 SMR (2006)
    • Freeride 250 R (2015)
