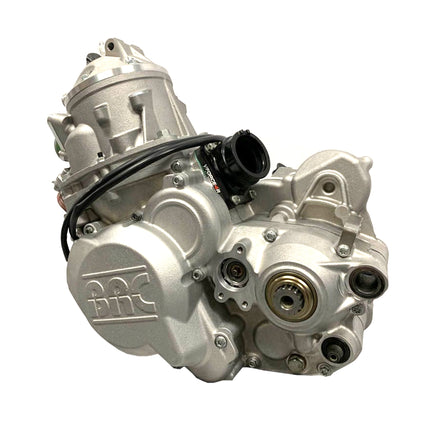

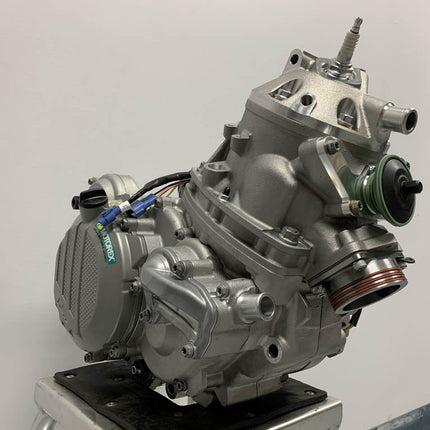

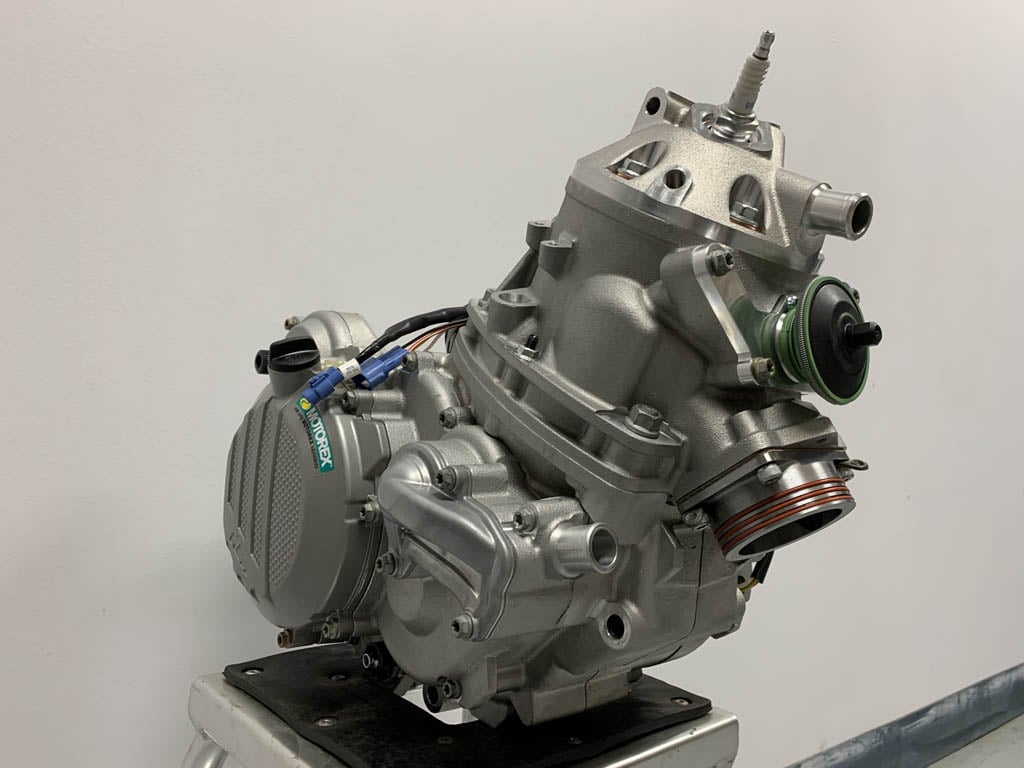

Brc 510cc Conversion Kit KTM Carb 2017-2018

Description

The BRC 510cc conversion kit is a donor-engine conversion package for 2017-2018 KTM 250 and 300 EXC/XC-W carburetted models, intended to rebuild the original engine into a 510cc configuration. It is designed for strip-down and assembly work using supplied conversion components together with selected parts from the existing engine, rather than as a complete ready-to-run engine.

Important Information

  • This is a conversion kit that uses the engine from the listed application and reuses parts from the original engine to build the 510cc engine.
  • The build reuses the donor engine’s transmission, clutch assembly, kicker assembly, water pump, intake, ignition and covers where possible.
  • Due to the value of the kit, it is shipped on a single small pallet.
  • No warranty is implied or given due to the custom nature of the kit.
  • Check that all supplied and reused parts are correct before beginning assembly.
  • Due to US and EU model differences, modifications may be required to mounts, exhaust or other supporting parts.
  • A signed waiver confirming acceptance of these conditions is required before dispatch.

Features

  • Pneumatic power valve system
  • Linear, smooth power delivery
  • Accepts the donor 5-speed or 6-speed transmission
  • Compatible with kick start and electric start arrangements
  • Decompression button fitted to assist starting
  • Integral counterbalance shaft
  • Intended to run with the stock donor carburettor on carburetted applications

Kit Contents

  • Pipe
  • Silencer
  • Moto Tassinari VForce 4R reed cage

Specifications

  • Bore: 89 mm
  • Stroke: 82 mm
  • Displacement: 510 cc
  • Power output: 60+ hp
  • Torque output: 50+ ft-lb
  • Compression ratio: 12.5:1
  • Squish clearance: 1.47-2.00 mm
  • Primary ratio: 2.25 (72:32)
  • Compatible carburettor size: 36 mm or 38 mm
  • Base gasket thickness options: 0.3 mm, 0.4 mm, 0.5 mm
  • Premix ratio: 50:1
  • Premix ratio for snowbike and desert use: 32:1
  • Minimum fuel octane: 91
  • Carburetted model sensor port plug bolt size: M10 x 12

Cross-Reference OEM Part Numbers

  • Moto Tassinari V426
  • Vertex 22447
  • ProX 03.1406
  • Wossner P2044
  • NGK BPR7EIX
  • NGK BKR7EIX
  • NGK BKR8EIX
  • 07-09-017
  • 07-09-019

Vehicle Fitments

  • KTM 250 EXC 2017-2018, carburetted models
  • KTM 300 EXC 2017-2018, carburetted models
  • KTM 250 XC-W 2017-2018, carburetted models
  • KTM 300 XC-W 2017-2018, carburetted models

Brc 510cc Conversion Kit KTM Carb 2017-2018

Product form

The BRC 510cc conversion kit is a donor-engine conversion package for 2017-2018 KTM 250 and 300 EXC/XC-W carburetted models, intended... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: BRC-KTM500_17+_CRB
    Barcode: 0120000015795

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The BRC 510cc conversion kit is a donor-engine conversion package for 2017-2018 KTM 250 and 300 EXC/XC-W carburetted models, intended to rebuild the original engine into a 510cc configuration. It is designed for strip-down and assembly work using supplied conversion components together with selected parts from the existing engine, rather than as a complete ready-to-run engine.

    Important Information

    • This is a conversion kit that uses the engine from the listed application and reuses parts from the original engine to build the 510cc engine.
    • The build reuses the donor engine’s transmission, clutch assembly, kicker assembly, water pump, intake, ignition and covers where possible.
    • Due to the value of the kit, it is shipped on a single small pallet.
    • No warranty is implied or given due to the custom nature of the kit.
    • Check that all supplied and reused parts are correct before beginning assembly.
    • Due to US and EU model differences, modifications may be required to mounts, exhaust or other supporting parts.
    • A signed waiver confirming acceptance of these conditions is required before dispatch.

    Features

    • Pneumatic power valve system
    • Linear, smooth power delivery
    • Accepts the donor 5-speed or 6-speed transmission
    • Compatible with kick start and electric start arrangements
    • Decompression button fitted to assist starting
    • Integral counterbalance shaft
    • Intended to run with the stock donor carburettor on carburetted applications

    Kit Contents

    • Pipe
    • Silencer
    • Moto Tassinari VForce 4R reed cage

    Specifications

    • Bore: 89 mm
    • Stroke: 82 mm
    • Displacement: 510 cc
    • Power output: 60+ hp
    • Torque output: 50+ ft-lb
    • Compression ratio: 12.5:1
    • Squish clearance: 1.47-2.00 mm
    • Primary ratio: 2.25 (72:32)
    • Compatible carburettor size: 36 mm or 38 mm
    • Base gasket thickness options: 0.3 mm, 0.4 mm, 0.5 mm
    • Premix ratio: 50:1
    • Premix ratio for snowbike and desert use: 32:1
    • Minimum fuel octane: 91
    • Carburetted model sensor port plug bolt size: M10 x 12

    Cross-Reference OEM Part Numbers

    • Moto Tassinari V426
    • Vertex 22447
    • ProX 03.1406
    • Wossner P2044
    • NGK BPR7EIX
    • NGK BKR7EIX
    • NGK BKR8EIX
    • 07-09-017
    • 07-09-019

    Vehicle Fitments

    • KTM 250 EXC 2017-2018, carburetted models
    • KTM 300 EXC 2017-2018, carburetted models
    • KTM 250 XC-W 2017-2018, carburetted models
    • KTM 300 XC-W 2017-2018, carburetted models
