Description

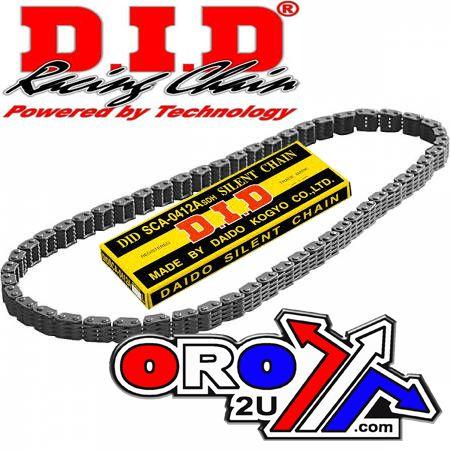

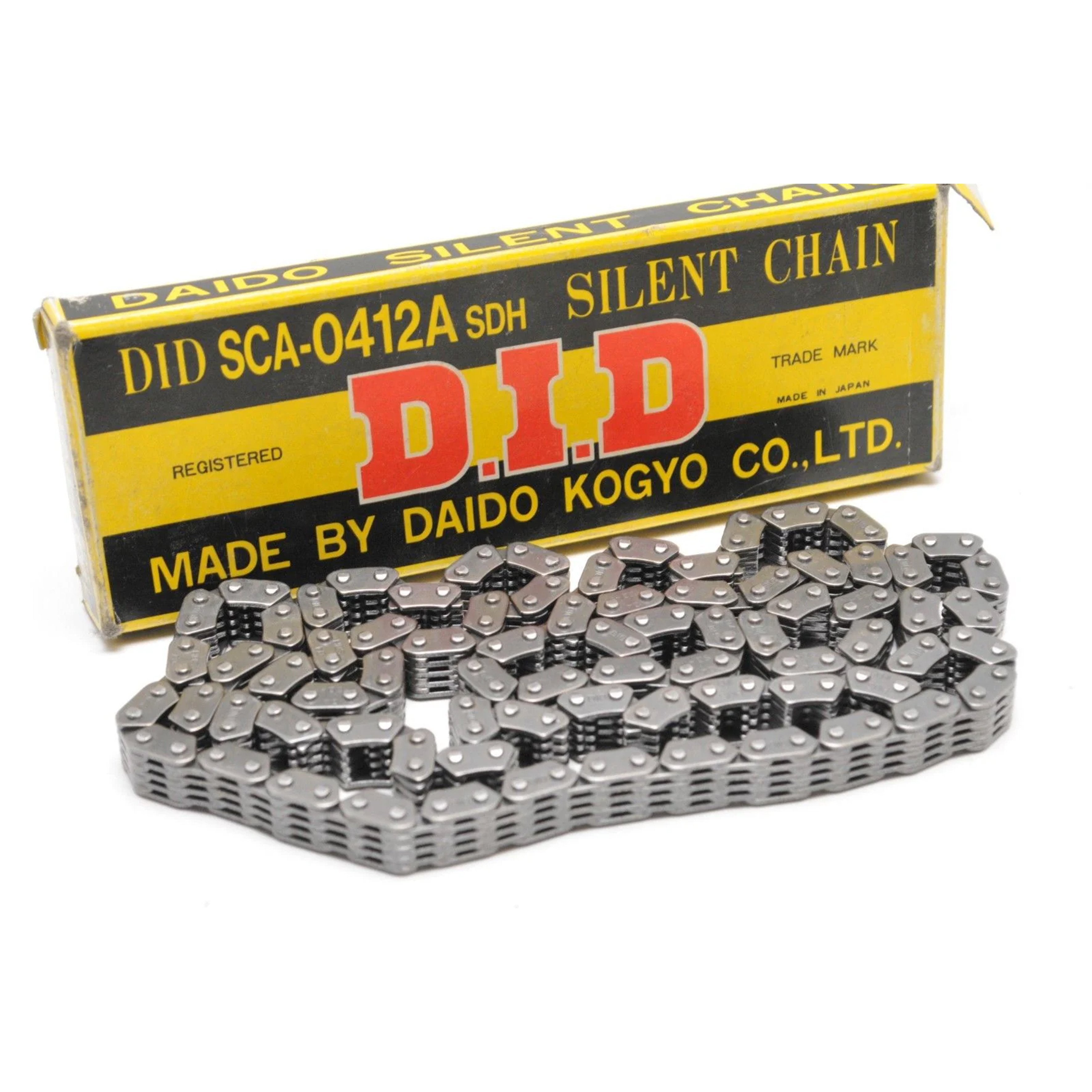

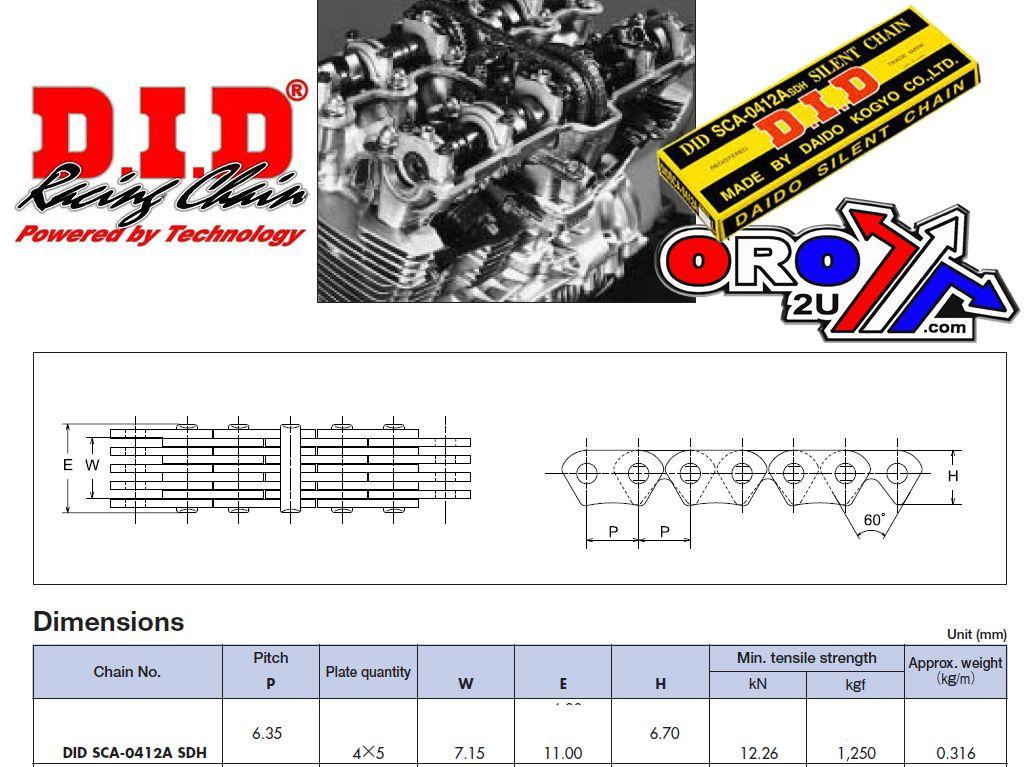

CAM TIMING CHAIN DID SCA-0412A SDH 116 LINKS
HONDA
NV400 1982-1987,
VT500 C Shadow 1984,
CBR600 FM-FW 1991-1998,
VT500 ED/EF Eurosport 1983-1988,
SUZUKI
VZR1800 2005-ON Cam Drive Upper
SC silent chains (SCA, SCR, SC) SC silent chains use specially-coated round pins and special plates to achieve an ideal engagement mechanism, and can keep a noise level remarkably lower than conventional roller chains. SC type silent chains can be used for high speed and large tension transmission just like a toothed metallic belt since the plates directly engage with the sprockets for driving. SCR-04 silent chains are designed with inner engaging structure for further reduced noise level. Silent cam chain (11-9274- and 11-9275- series) features D.I.Ds special Dai-Hard treatment that offers increased durabilitythrough an extremely hard metallic layer on the pin surface.
Part No. 30-410.116.DID (radhouse.co.uk)
Cross reference numbers ONLY.
DIDCSCA0412A116, DID SCA-0412A SV X 116L , 82RH5015-116M, 14401-MF5-000, 14401-MF5-003, 14401-MF5-013, 14401-MF5-004 , 14401-MEE-003, 14401-MV9-931, 14401-MV9-671, 14401-MAL-602, 14401-MAL-601, 12761-48G00
S/SEED FROM 30-551.DID TO 30-410.116.DID
