Name: Cam Chain Ybn 25H 90 Links
Brand: YBN Chains
SKU: 30-450.090.YBN
Price: 13.14 GBP
Availability: InStock

Cam Chain Ybn 25H 90 Links

YBN Chains
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Part No. 30-450.090.YBN (radhouse.co.uk)

Cross reference numbers ONLY.
3113005. DIDC25H090 DID 25H X 090L , OLD No. 30-454.DID, 14401-436-003 14100-K28-910

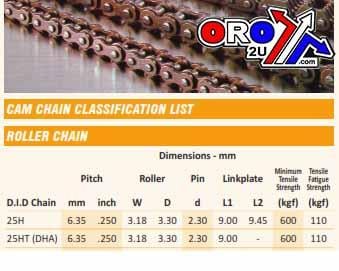

Part #: 25H
Pitch (P): 0.250"
Bushing Dia (D): 0.130"
Width Between Inner Plates (e): 0.125"
Pin Diameter (d): 0.091"
Pin Length/ Chain Width (W): 0.354"
Pin Length/ Connecting Link Width (O): 0.453"
Inner Plate Height (H): 0.24"
Minimum Breaking Load: 1,080 LBS (490 Kgs)
Weight: 0.12 LBS/ FT

1979 XL100S A - CAM CHAIN / TENSIONER
1980 XL100S A - CAM CHAIN / TENSIONER
1981 XL100S A - CAM CHAIN / TENSIONER
1981 XR100 A - CAM CHAIN / TENSIONER
1982 XL100S A - CAM CHAIN / TENSIONER
1982 XR100 A - CAM CHAIN / TENSIONER
1983 XL100S A - CAM CHAIN / TENSIONER
1983 XR100 A - CAM CHAIN / TENSIONER
1984 XL100S A - CAM CHAIN / TENSIONER
1984 XR100 A - CAM CHAIN / TENSIONER
1985 XL100S A - CAM CHAIN / TENSIONER
1985 XL100S AC - CAM CHAIN / TENSIONER
1985 XR100R A - CAM CHAIN
1986 XR100R A - CAM CHAIN
1987 XR100R A - CAM CHAIN
1988 XR100R A - CAM CHAIN
1989 XR100R A - CAM CHAIN
1990 XR100R A - CAM CHAIN
1991 XR100R A - CAM CHAIN
1992 XR100R A - CAM CHAIN
1993 XR100R A - CAM CHAIN
1994 XR100R A - CAM CHAIN
1995 XR100R A - CAM CHAIN
1996 XR100R A - CAM CHAIN
1997 XR100R A - CAM CHAIN
1998 XR100R A - CAM CHAIN
1998 XR100R AC - CAM CHAIN
1999 XR100R A - CAM CHAIN
1999 XR100R AC - CAM CHAIN
2000 XR100R A - CAM CHAIN
2000 XR100R AC - CAM CHAIN
2001 XR100R A - CAM CHAIN
2002 XR100R A - CAM CHAIN
2003 XR100R A - CAM CHAIN
2004 CRF100F A - CAM CHAIN
2005 CRF100F A - CAM CHAIN
2006 CRF100F A - CAM CHAIN
2006 NSF100 A - CAM CHAIN / TENSIONER
2007 CRF100F A - CAM CHAIN
2008 CRF100F A - CAM CHAIN
2009 CRF100F A - CAM CHAIN
2011 CRF100F A - CAM CHAIN
2012 CRF100F AC - CAM CHAIN
2013 CRF100F AC - CAM CHAIN

s
Assemblies where 14100-K28-910 is used
2014 CRF125F AC - CAMSHAFT / VALVE
2014 CRF125FB AC - CAMSHAFT / VALVE
2015 CRF125F AC - CAMSHAFT / VALVE
2015 CRF125FB AC - CAMSHAFT / VALVE
2016 CRF125F AC - CAMSHAFT / VALVE
2016 CRF125FB AC - CAMSHAFT / VALVE
2017 CRF125F AC - CAMSHAFT / VALVE
2017 CRF125FB AC - CAMSHAFT / VALVE
2018 CRF125F A - CAMSHAFT / VALVE
2018 CRF125F AC - CAMSHAFT / VALVE
2018 CRF125FB A - CAMSHAFT / VALVE
2018 CRF125FB AC - CAMSHAFT / VALVE
2019 CRF125F A - CAMSHAFT / VALVE
2019 CRF125F AC - CAMSHAFT / VALVE
2019 CRF125FB A - CAMSHAFT / VALVE
2019 CRF125FB AC - CAMSHAFT / VALVE
2020 CRF125F A - CAMSHAFT / VALVE
2020 CRF125F AC - CAMSHAFT / VALVE
2020 CRF125FB A - CAMSHAFT / VALVE
2020 CRF125FB AC - CAMSHAFT / VALVE
2021 CRF125F A - CAMSHAFT / VALVE
2021 CRF125F AC - CAMSHAFT / VALVE
2021 CRF125FB A - CAMSHAFT / VALVE
2021 CRF125FB AC - CAMSHAFT / VALVE
2022 CRF125F A - CAMSHAFT / VALVE
2022 CRF125F AC - CAMSHAFT / VALVE
2022 CRF125FB A - CAMSHAFT / VALVE
2022 CRF125FB AC - CAMSHAFT / VALVE
2023 CRF125F A - CAMSHAFT / VALVE
2023 CRF125F AC - CAMSHAFT / VALVE
2023 CRF125FB A - CAMSHAFT / VALVE
2023 CRF125FB AC - CAMSHAFT / VALVE
2024 CRF125F A - CAMSHAFT / VALVE
2024 CRF125F AC - CAMSHAFT / VALVE
2024 CRF125FB A - CAMSHAFT / VALVE
2024 CRF125FB AC - CAMSHAFT / VALVE
2025 CRF125F A - CAMSHAFT / VALVE
2025 CRF125F AC - CAMSHAFT / VALVE
2025 CRF125FB A - CAMSHAFT / VALVE
2025 CRF125FB AC - CAMSHAFT / VALVE

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	LT F 160	1991-2001
HONDA	CT TRAIL 125	1977
SUZUKI	LT 185	1984-1987
SUZUKI	LT 125	1983-1987
HONDA	XL S 125	1976-1985
SUZUKI	SP DUAL SPORT J 125	1986-1988
SUZUKI	SP DUAL SPORT G 125	1986-1988
SUZUKI	LT 160	1989-1992
SUZUKI	ALT F 185	1984-1987
SUZUKI	ALT 125	1983-1987
HONDA	XL 100	1976-1978
HONDA	XL 125	1976-1985

Cam Chain Ybn 25H 90 Links
