Carburettor Repair Gasket Kit 1983- 2006 Yamaha PW80 Y-zinger

Description

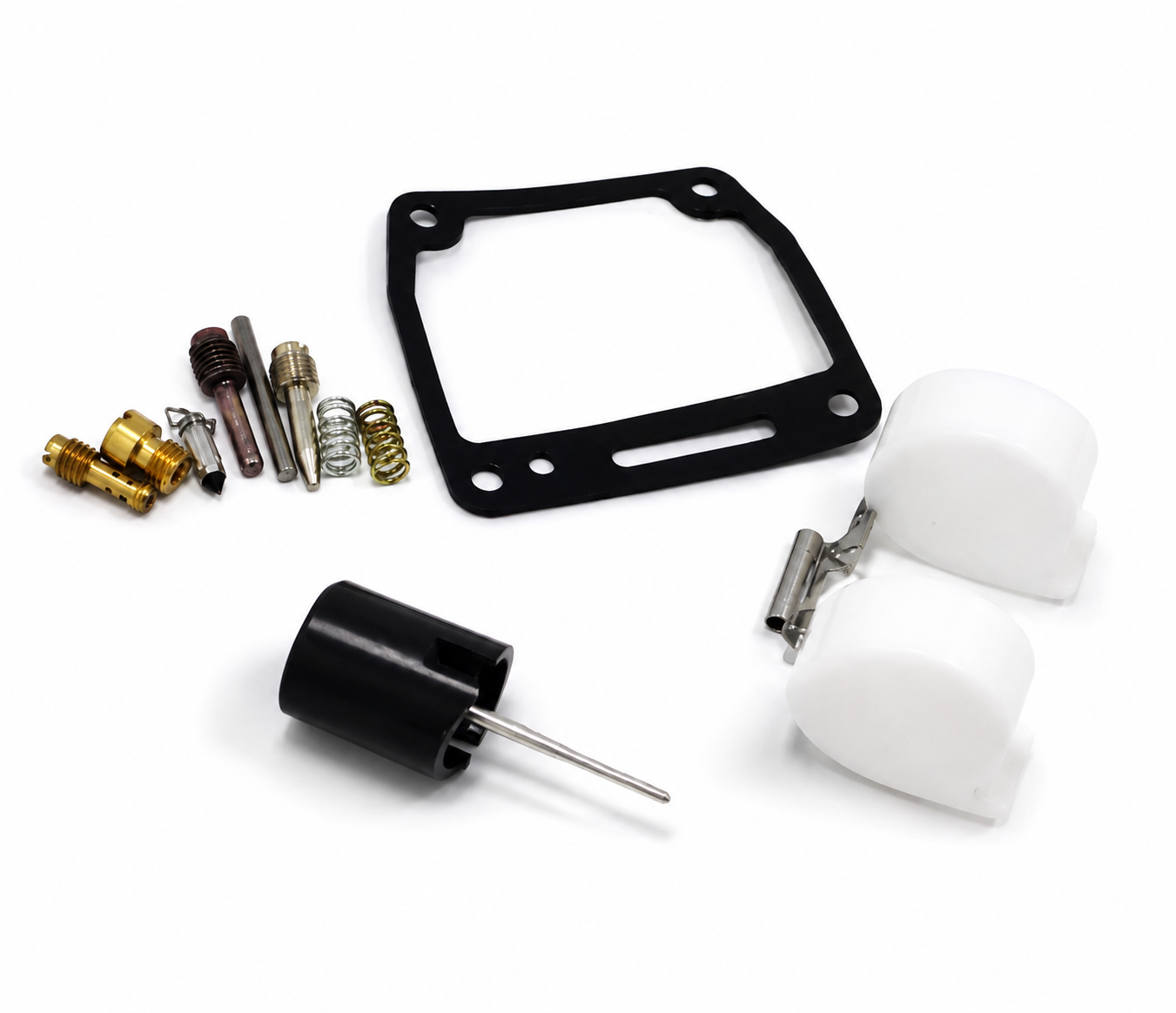

This carburettor repair gasket kit is designed for Yamaha PW80 models from 1983 to 2006, providing all necessary components for a comprehensive carburettor rebuild.

Features:

  • Includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle, and seat
  • OEM jet sizes are included in the kit
  • Components are made from NBR rubber material, offering excellent resistance to ethanol used in today's fuels
  • Applications that use paper float bowl gaskets are upgraded to high-performance interface gasket material

Specifications:

  • Compatible with Yamaha PW80 models from 1983 to 2006
  • Designed to meet or exceed OEM specifications

Vehicle Fitments:

  • Yamaha PW80 Y-Zinger (1983-2006)

Cross reference numbers.

  • Gasket, Float Chamber 296-14184-01-00
  • Needle Set 21W-1490J-00-00
  • Air Screw Set 12G-14104-00-00 36R-14104-00-00
  • Throttle Screw Set 12G-14103-00-00
  • Jet, Pilot (# 15) 193-14142-15-A0
  • Pin, Float 127-14186-00-00
  • Float 2E9-14185-00-00
  • Jet, Main (#125) UR STD 127-14143-25-00
  • Needle Valve Set 21W-14107-12-00
  • Note. Some Jets Sizes Might Differ

Carburettor Repair Gasket Kit 1983- 2006 Yamaha PW80 Y-zinger

Product form

This carburettor repair gasket kit is designed for Yamaha PW80 models from 1983 to 2006, providing all necessary components for... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 18-8184.A3

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This carburettor repair gasket kit is designed for Yamaha PW80 models from 1983 to 2006, providing all necessary components for a comprehensive carburettor rebuild.

    Features:

    • Includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle, and seat
    • OEM jet sizes are included in the kit
    • Components are made from NBR rubber material, offering excellent resistance to ethanol used in today's fuels
    • Applications that use paper float bowl gaskets are upgraded to high-performance interface gasket material

    Specifications:

    • Compatible with Yamaha PW80 models from 1983 to 2006
    • Designed to meet or exceed OEM specifications

    Vehicle Fitments:

    • Yamaha PW80 Y-Zinger (1983-2006)

    Cross reference numbers.

    • Gasket, Float Chamber 296-14184-01-00
    • Needle Set 21W-1490J-00-00
    • Air Screw Set 12G-14104-00-00 36R-14104-00-00
    • Throttle Screw Set 12G-14103-00-00
    • Jet, Pilot (# 15) 193-14142-15-A0
    • Pin, Float 127-14186-00-00
    • Float 2E9-14185-00-00
    • Jet, Main (#125) UR STD 127-14143-25-00
    • Needle Valve Set 21W-14107-12-00
    • Note. Some Jets Sizes Might Differ
