CDI Box 5 Wires Yamaha PW80 BW80 Peewee 21W-85540-20-00

Description

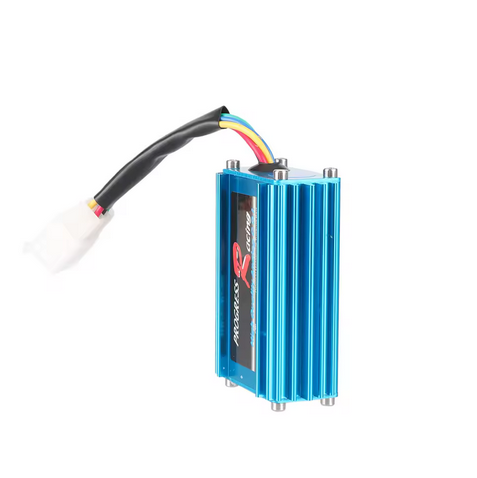

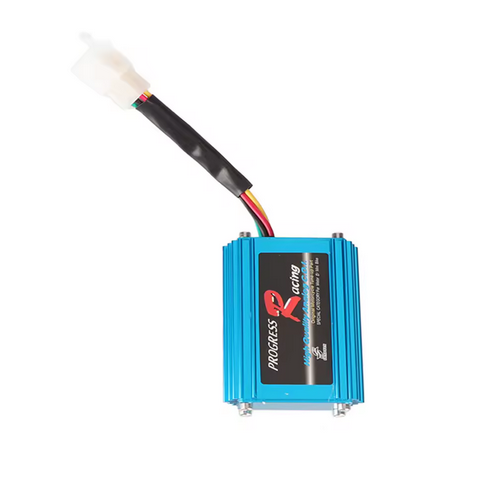

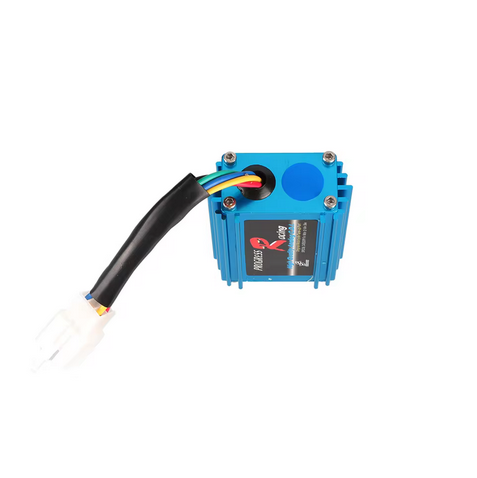

This CDI ignition box is a replacement ignition-control unit for Yamaha PW80 and BW80 models. It connects to the stator, ignition coil, engine earth and kill-switch circuits to control the ignition spark. Check the wiring and connector arrangement against the existing unit before fitting.

Features

  • Can replace the referenced Yamaha unit when adjusted to single-pin connections.

Specifications

  • Five-wire configuration.
  • Red CDI wire: connects to the black/red stator wire.
  • Yellow CDI wire: connects to the orange ignition-coil wire.
  • Green CDI wire: connects to the black engine-earth wire.
  • Black CDI wire: connects to the black/white kill-switch wire.
  • Blue CDI wire: not connected.

Cross-Reference OEM Part Numbers

  • Yamaha: 21W-85540-20-00

Vehicle Fitments

  • Yamaha PW80
  • Yamaha BW80
  • Pit bikes (universal fitment as listed)
  • DIO50

CDI Box 5 Wires Yamaha PW80 BW80 Peewee 21W-85540-20-00

Product form

This CDI ignition box is a replacement ignition-control unit for Yamaha PW80 and BW80 models. It connects to the stator,... Read more

Out of stock

£28.74 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-A1361.5R

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This CDI ignition box is a replacement ignition-control unit for Yamaha PW80 and BW80 models. It connects to the stator, ignition coil, engine earth and kill-switch circuits to control the ignition spark. Check the wiring and connector arrangement against the existing unit before fitting.

    Features

    • Can replace the referenced Yamaha unit when adjusted to single-pin connections.

    Specifications

    • Five-wire configuration.
    • Red CDI wire: connects to the black/red stator wire.
    • Yellow CDI wire: connects to the orange ignition-coil wire.
    • Green CDI wire: connects to the black engine-earth wire.
    • Black CDI wire: connects to the black/white kill-switch wire.
    • Blue CDI wire: not connected.

    Cross-Reference OEM Part Numbers

    • Yamaha: 21W-85540-20-00

    Vehicle Fitments

    • Yamaha PW80
    • Yamaha BW80
    • Pit bikes (universal fitment as listed)
    • DIO50
