Description
YAMAHA
YFM350 FAS 2004,
YFM350 Bruin 2WS/4WD 2004-06,
YFM350 Grizzly 2WD/4WD 2007-11,
YFM350 X Wolverine 2WD 2006-09,

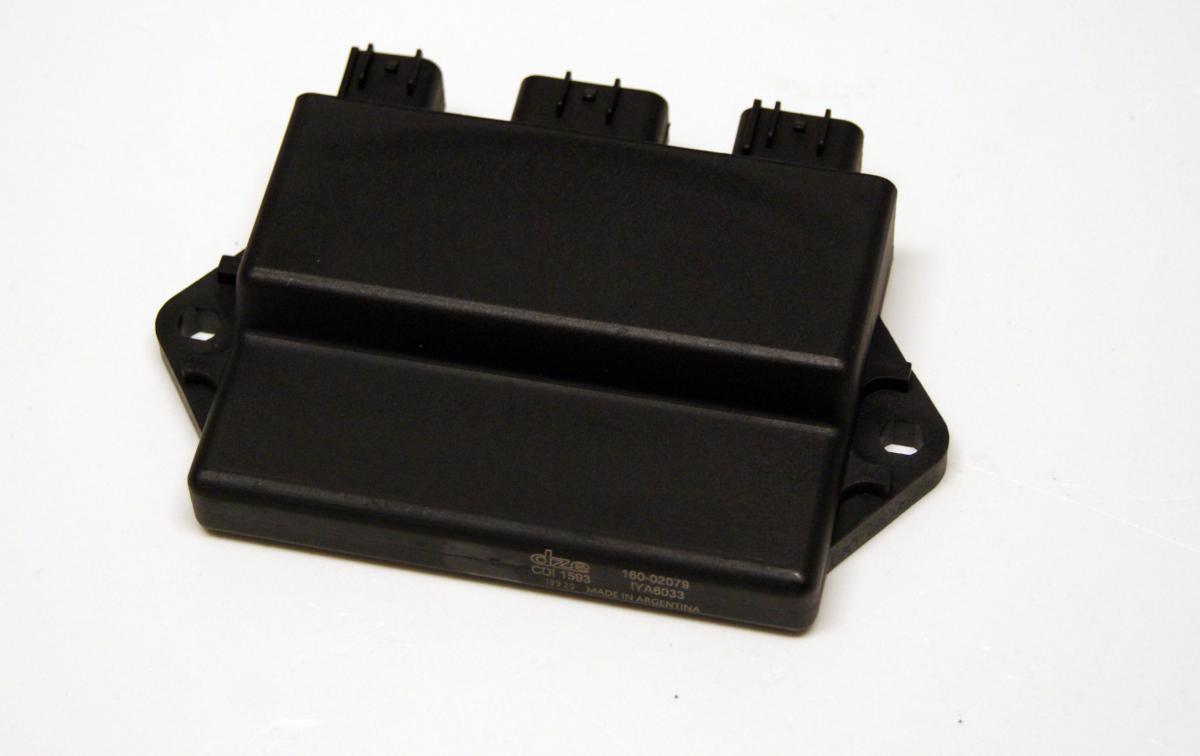

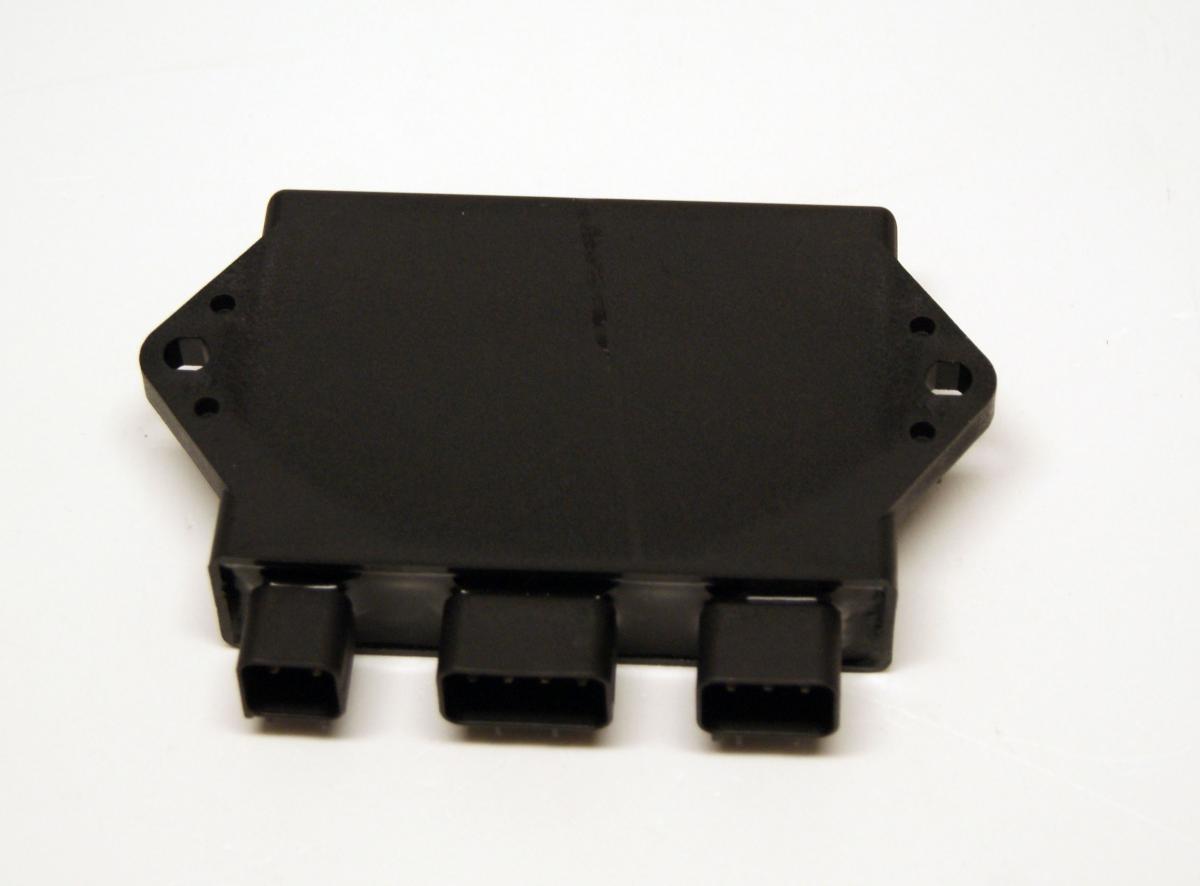

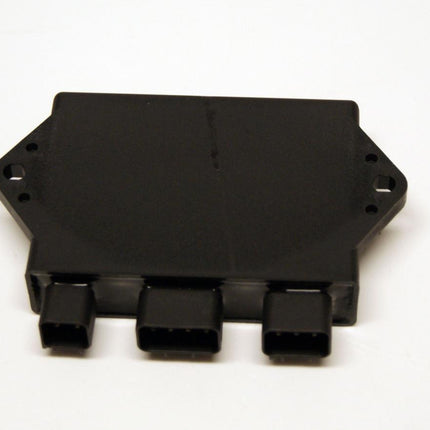

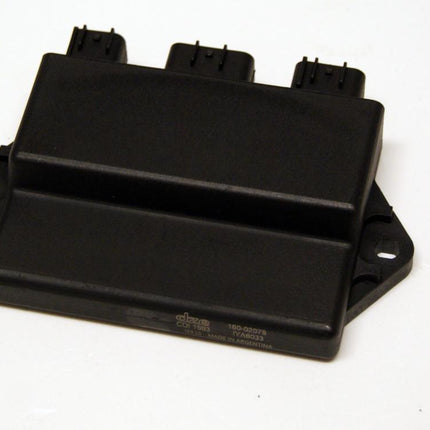

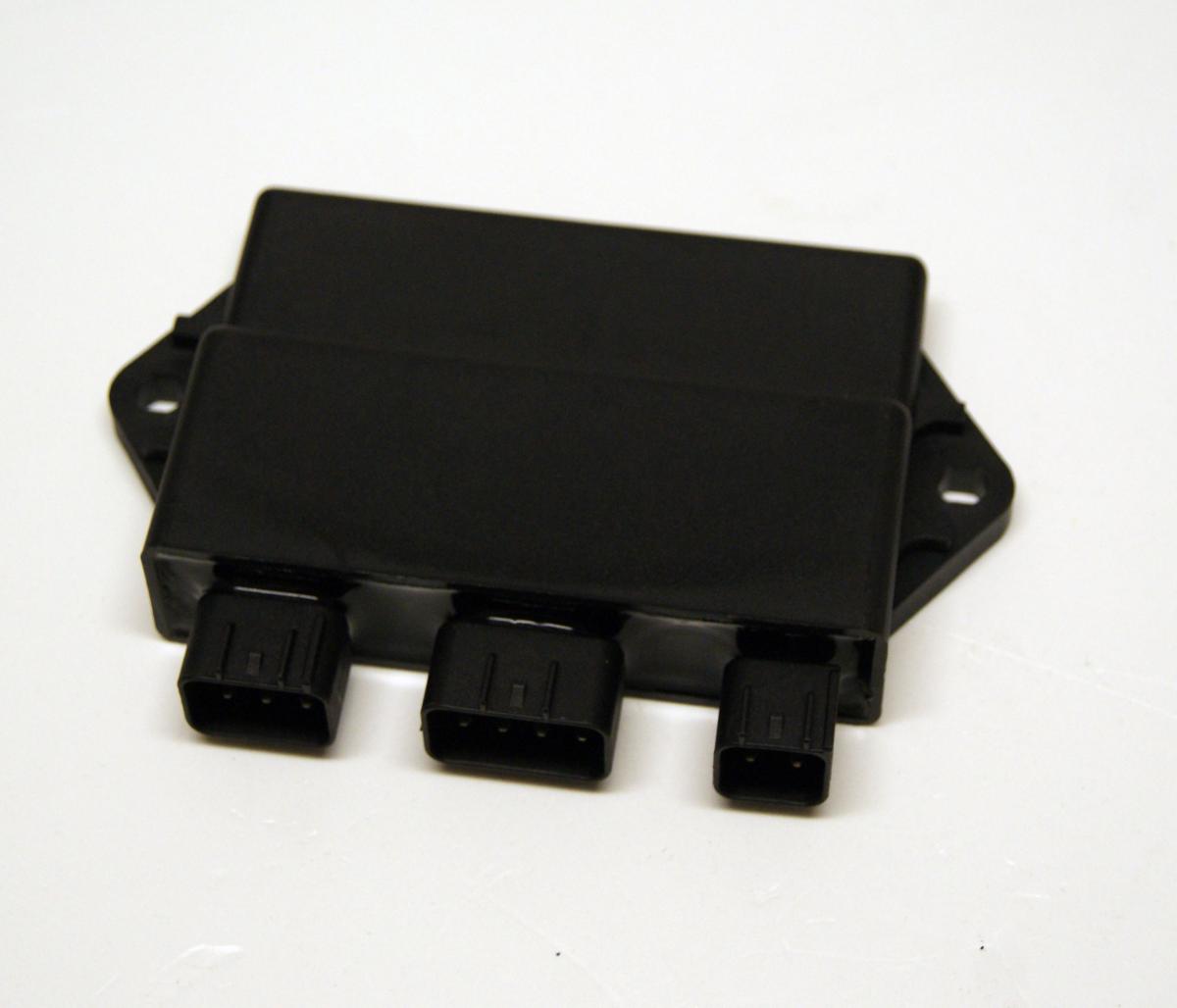

Description --- C.D.I. UNIT ASSY
| Technical specifications |
| Punto de encendido (ignition timing) | AVANCE |
| Sistema electronico (type) | DIGITAL |
| Alimentacion del encendido (input) | BATERIA (DC) |
| # salidas (# output) | 1 |
| Alto (height) | 27 [mm] |
| Ancho (width) | 78 [mm] |
| Largo (length) | 142 [mm] |

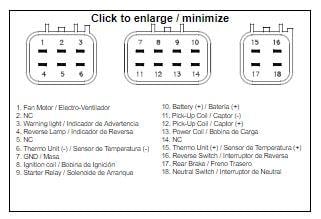

| # terminales (# terminals) | 18 |
| Potenciado (enhaced) | NO |
| dze apply to |
| Brand | Model | Version | Displacement | Year | OEM |
| Yamaha | YFM | Bruin | 350 | from 2004 to 2006 | 5UH-85540-00 |
| Yamaha | YFM | Wolverine | 350 | from 2006 to 2009 | 5UH-85540-00 |
| Yamaha | YFM | Grizzly | 350 | from 2007 to 2013 | 5UH-85540-00 |
| Yamaha | YFM350FAS |
| 350 | 2004 | 5UH-85540-00 |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale.
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and

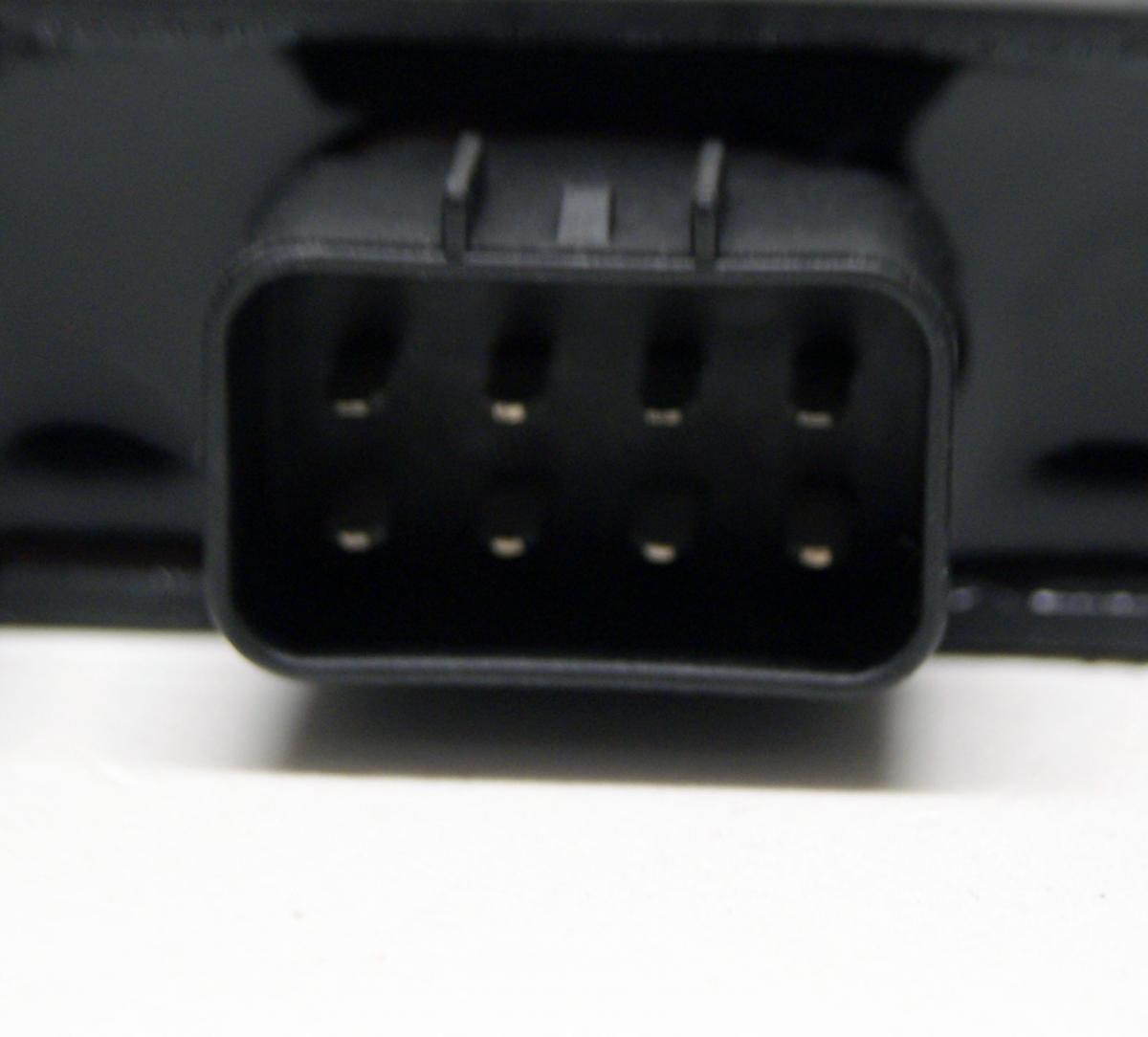

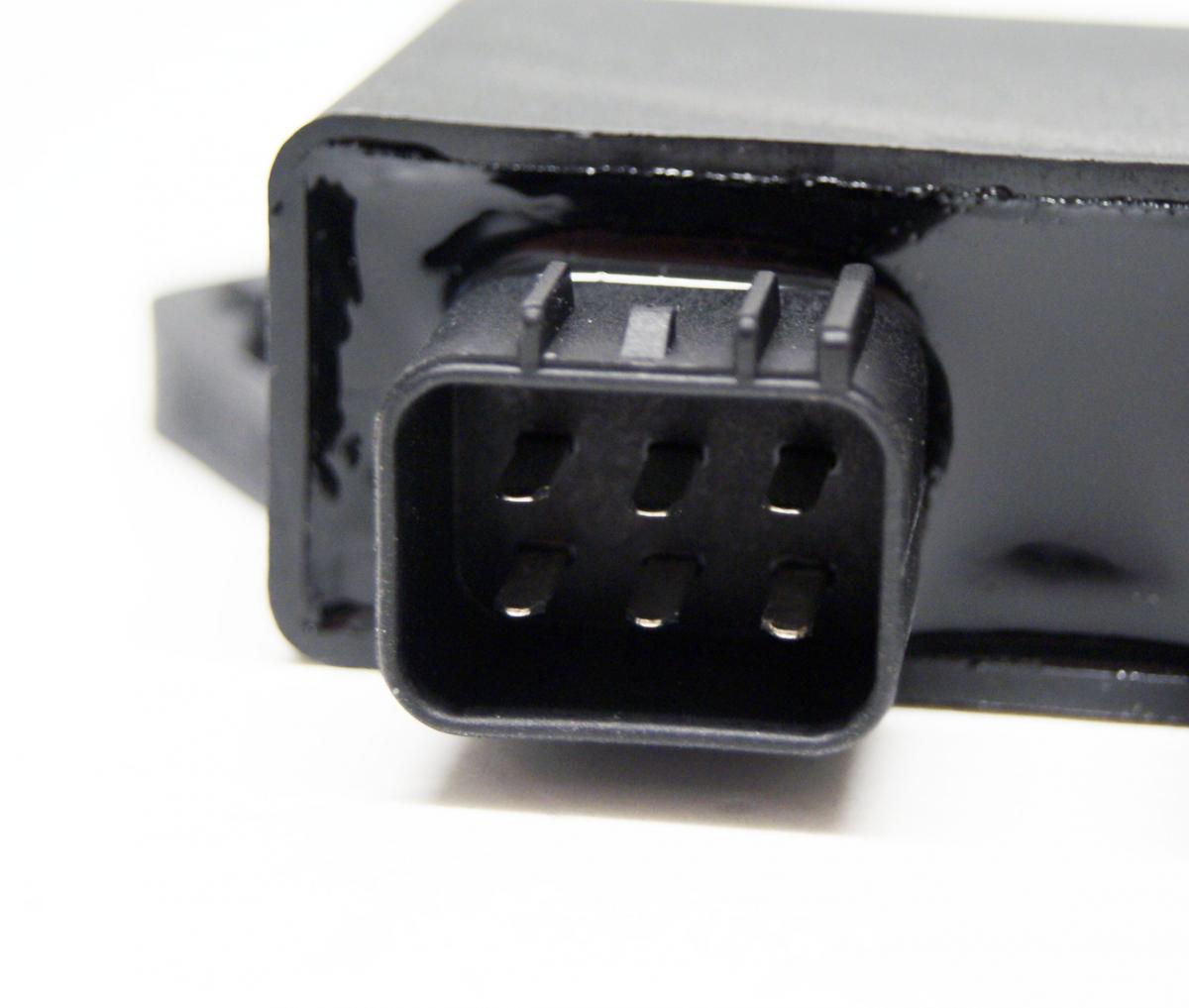

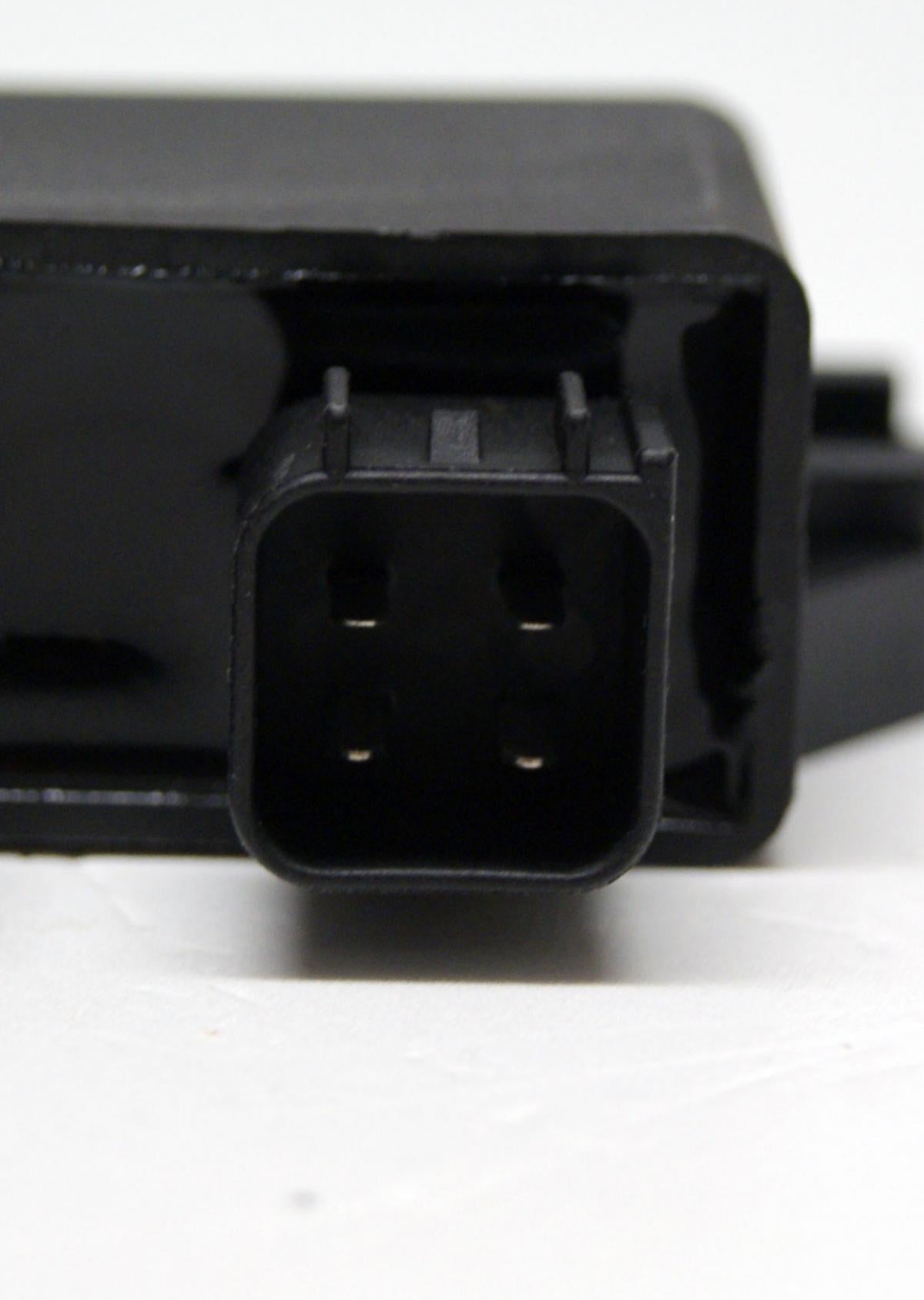

- Please check the image and connection plugs before ordering to avoid mistakes.
- Note. No Returns on Electrical Parts.
Part No. 44-5843 (radhouse.co.uk)
Cross reference numbers ONLY.
5UH-85540-00-00
This Yamaha 5UH-85540-00-00 C.D.I. UNIT ASSY part is also used on these models and components: 2004 BRUIN 350 AUTO 2WD - YFM35AS ELECTRICAL 1 2004 BRUIN 350 AUTO 4X4 - YFM35FAS ELECTRICAL 1 2004 BRUIN 350 AUTO 4X4 HARDWOODS CAMO - YFM35FAHS ELECTRICAL 1 2005 BRUIN 2WD - YFM35BAT ELECTRICAL 1 2005 BRUIN 350 4X4 - YFM35FAT ELECTRICAL 1 2005 BRUIN 4WD HUNTER - YFM35FAHT ELECTRICAL 1
2006 BRUIN 2WD - YFM35BAV ELECTRICAL 1 2006 BRUIN 350 4WD - YFM35FAV ELECTRICAL 1 2006 BRUIN 350 4WD HUNTER - YFM35FAHV ELECTRICAL 1
2004 YFM350FAS ELECTRICAL 1 2004 YFM350FAS_ ELECTRICAL 1
2006 WOLVERINE 350 2WD - YFM35XV ELECTRICAL 1 2007 WOLVERINE 350 2WD SPORT - YFM35XW ELECTRICAL 1
