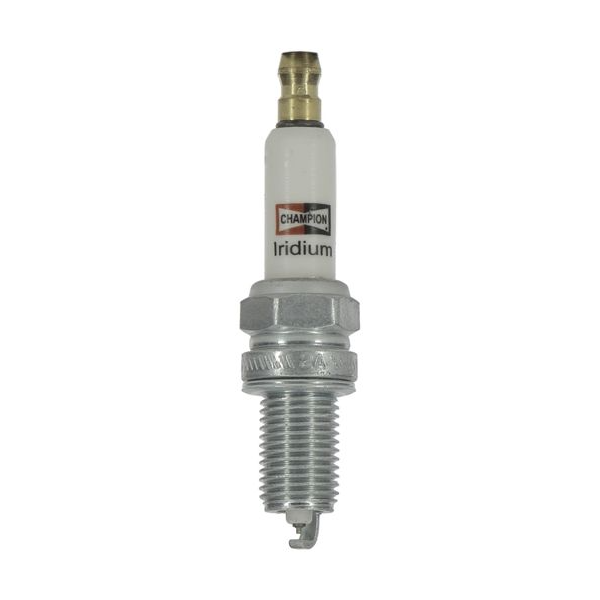

Champion Spark Plug RA7WYB (CCH9700)

Description

Champion Iridium Spark Plug - RA7WYB

Product Description: Experience peak automotive performance with the Champion® Iridium Spark Plug - RA7WYB, engineered for unmatched ignition precision and optimal engine performance across all conditions.

Key Features:

  • Maximum Performance: Delivers unrivalled power and efficiency.
  • Maximum Life: Iridium centre electrode for extended lifespan and consistent performance.
  • Enhanced Ignitability: Fine-wire centre electrode and V-trimmed design for smoother combustion and improved engine responsiveness.
  • Sharper Spark Focus: V-trimmed ground electrode for optimized ignition, power output, and fuel efficiency.
  • Stable Operating Temperature: Maintains consistency and durability under diverse driving conditions.
  • Heat-Active™ Alloy: Enables swift electrode temperature optimization for rapid ignition.

Spark Plug Dimensions:

  • Plug Type: RA7WYB
  • Centre Electrode Tip Material: Iridium
  • Pre-Gap Size: 0.85 mm / 0.033 in
  • Ground Electrode Quantity: 1
  • Hex Size: 15.880 mm / 0.625 in
  • Manufacturer Heat Range: 7
  • Seat Type: Flat
  • Reach: 0.75 in
  • Thread Diameter: 12.000 mm / 0.472 in
  • Resistor Type: Yes
  • Ground Electrode Tip Design: J Gap
  • Ground Electrode Core Material: Platinum
  • Washer Included: Yes
  • Classification: Champion Iridium
  • Electrical Terminal Type: Non-Removable Nut
  • Hex Type: Hex
  • Washer Type: Crush
  • Indexed: No
  • Part Description: Spark Plug
  • Gap Style: J Gap
  • Ground Electrode Material: Platinum Pad Surface

Cross Reference:

  • NGK: IJR7A9

Vehicle Compatibility:

Arctic Cat:

  • 150: 2006-2017
  • 250 2x4: 2006-2009
  • 300: 2010-2016
  • Bearcat Widetrack: 2003-2008
  • DVX 250 + 300: 2006-2015
  • Panther 660 Touring + Trail: 2006-2008
  • T660 Touring + Turbo: 2004-2008

CFMOTO:

  • CF500: 2007-2016
  • CF600: 2011-2014
  • CFORCE 400: 2016
  • CFORCE 800: 2013-2016
  • UFORCE 600: 2013
  • UFORCE 800: 2013-2016
  • X5 (Terralander 500): 2011-2012
  • X6 (Terralander 625): 2011-2012
  • X8 (Terralander 800): 2012
  • Z6 (Terracross 600): 2011-2012
  • ZFORCE 500 HO + Trail: 2016
  • ZFORCE 600: 2013-2015
  • ZFORCE 800: 2014-2016

Can-Am:

  • Commander 1000: 2011-2017
  • Commander 800R: 2011-2019
  • DS 650 X: 2007
  • Defender: 2016-2019
  • Maverick 1000: 2019
  • Maverick 800: 2018-2019
  • Outlander 1000: 2012-2015
  • Outlander 400: 2007-2014
  • Outlander 500: 2007-2015
  • Outlander 570: 2016-2019
  • Outlander 650: 2007-2019
  • Outlander 800: 2007-2015
  • Outlander L 500: 2015
  • Outlander L 570: 2016
  • Outlander Max 1000: 2013-2015
  • Outlander Max 400: 2007-2014
  • Outlander Max 500: 2007-2015
  • Outlander Max 570: 2016-2019
  • Outlander Max 650: 2007-2019
  • Outlander Max 800: 2007-2015
  • Renegade 1000: 2012-2015
  • Renegade 500: 2008-2015
  • Renegade 570: 2016-2019
  • Renegade 800: 2007-2015

Ducati:

  • Monster 400: 2000-2004
  • Monster 600: 1997-2001
  • Monster 750: 2010-2011
  • Monster 796: 2011-2014
  • Monster 797: 2017-2018
  • Scrambler 1100: 2018-2019

Honda:

  • CRF150F: 2003-2005
  • CRF230F: 2003-2019
  • CRF230L: 2008-2009
  • CRF230M: 2009
  • TRX250: 1987-2020
  • TRX300: 1988-2000
  • TRX350: 2000-2006
  • TRX400: 1998-2007
  • TRX500: 2001-2014

Husaberg:

  • FC470: 2001-2002
  • FC501: 1994-2000
  • FC550: 2001-2005
  • FE400: 2000-2003
  • FE450E: 2004-2008
  • FE501E: 2000-2003
  • FE550E: 2004-2008
  • FE650: 2001-2008
  • FS650E: 2002-2005
  • FX470E: 2001-2002
  • FX650E: 2001-2003

John Deere:

  • Buck 500: 2004-2006
  • Buck 650: 2006

KTM:

  • 250 EXC 4-Stroke: 2003-2005
  • 350 LC4: 1994-1995
  • 400: 1994-2000
  • 450: 2003-2007
  • 525: 2003-2006
  • 540 SXC: 2000-2006
  • 600: 1989-1993
  • 620: 1994-2001
  • 625 SMC: 2004-2006
  • 640: 1998-2002

Kawasaki:

  • KL600: 1985-1986
  • KLR650: 1988-2017
  • KLX650: 1993-1996

Yamaha:

  • TT600: 1985-1986
  • XT550: 1982
  • XT600: 1984-1995
  • YFM600FW Grizzly 4x4: 1998-2001
  • YFM660 Grizzly + Raptor: 2001-2008
  • YXR66F Rhino 660: 2004-2007

For compatibility verification, please check fitments via the catalogue before purchase.
