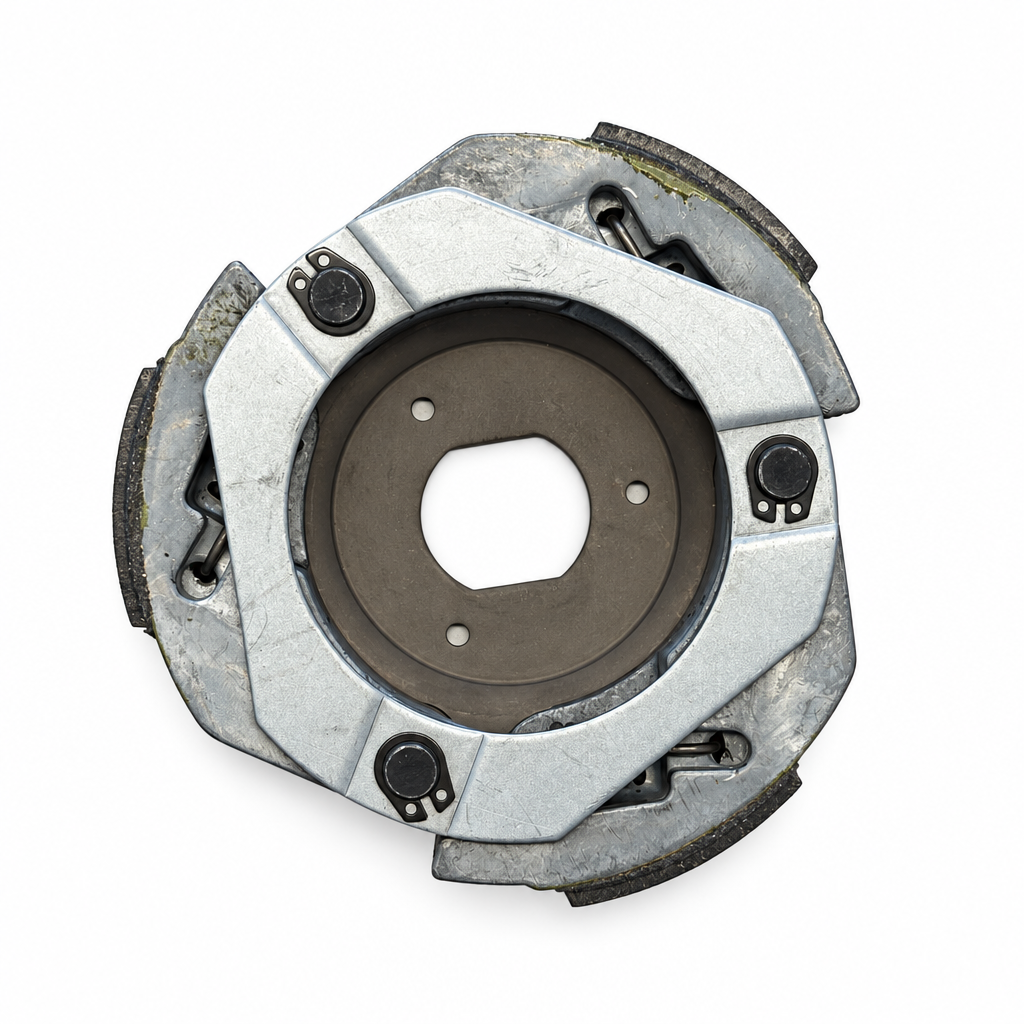

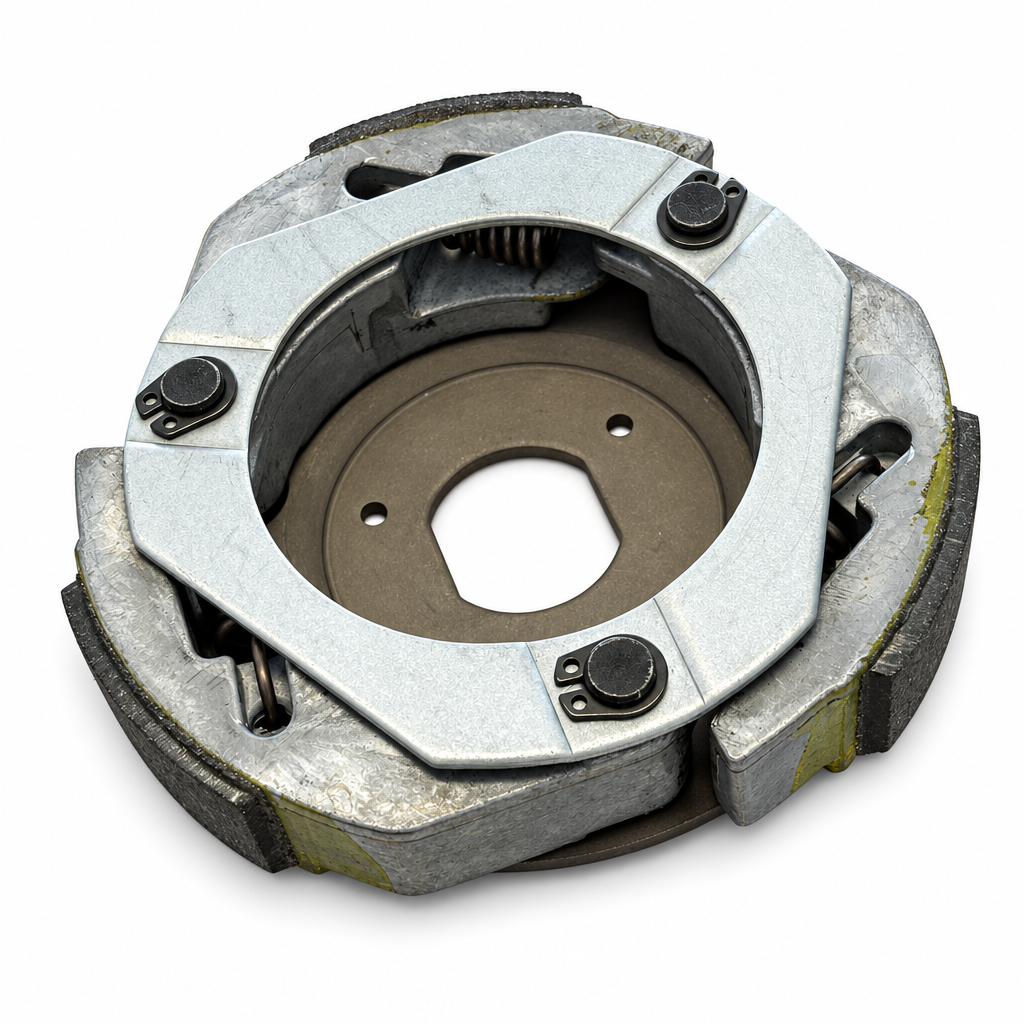

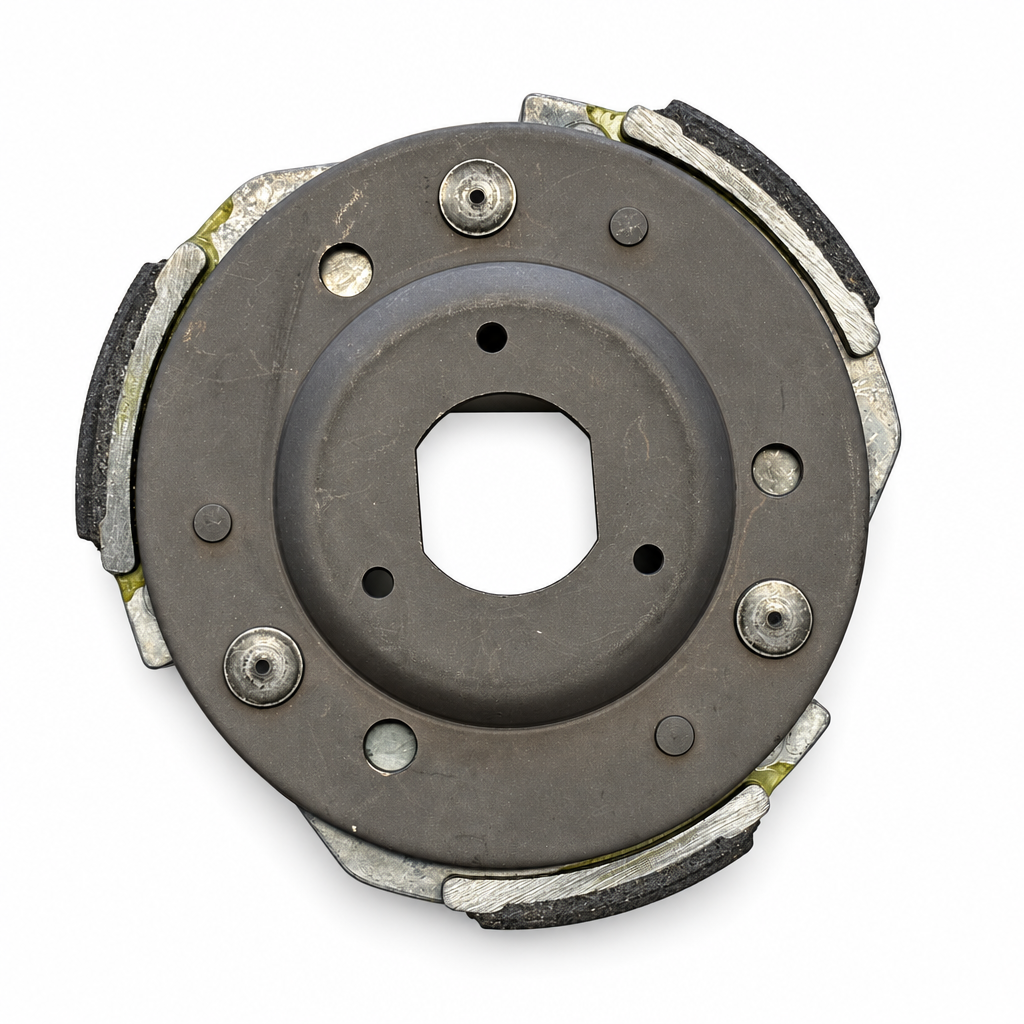

Clutch Shoe Assembly 20-24 Suzuki Access Address Avenis Burgman 125 120mm 21501-08K00-000

Description

This clutch shoe assembly is a replacement centrifugal clutch component used within the transmission to engage drive as engine speed rises. It is intended for servicing a worn or damaged original assembly on selected Suzuki 125 scooter applications, and fitment should be checked against the original part and dimensions where model variations exist.

Features

  • Replacement clutch shoe assembly for clutch servicing and repair
  • Fits within the transmission clutch unit
  • Provides drive engagement during take-off and low-speed running
  • Intended to replace a worn or damaged original assembly
  • Suitable for selected Suzuki 125 scooter applications

Specifications

  • Overall width: 120 mm
  • Overall height: approximately 30 mm
  • Central mounting hole: approximately 24 x 28 mm, slightly oval
  • Friction pads per shoe: 3
  • Approximate friction pad size: 23 x 41 mm

Cross-Reference Part Numbers

  • Suzuki 21501-08K00-000
  • Suzuki 21501-08K10-000
  • 21501-08KA0-000 — Suzuki oem (related part; not an equivalent)

Vehicle Fitments

  • Suzuki Access 125, 2020, model UZ125NE M0 (E01), clutch shoe assembly
  • Suzuki Access 125, 2021, model UZ125NE M1 (E01), clutch shoe assembly
  • Suzuki Access 125, 2022, model UZ125NE M2 (E01), clutch shoe assembly
  • Suzuki Access 125, 2023, model UZ125NEY M3 (P19), clutch shoe assembly
  • Suzuki Address 125, 2023, model UZ125NEY M3 (P19), clutch shoe assembly
  • Suzuki Address 125, 2024, model UZ125NEY M4 (P19), clutch shoe assembly
  • Suzuki Avenis 125, 2023, model UN125NE M3 (P21), clutch shoe assembly
  • Suzuki Avenis 125, 2024, model UN125NE M4 (P21), clutch shoe assembly
  • Suzuki Burgman 125, 2023, model UB125LNM M3 (P21), clutch shoe assembl
  • Access 125 (2020-2023)
  • Address 125 (2023-2024)
  • Avenis 125 (2023-2024)
  • Burgman 125 (2023)

Clutch Shoe Assembly 20-24 Suzuki Access Address Avenis Burgman 125 120mm 21501-08K00-000

Product form

This clutch shoe assembly is a replacement centrifugal clutch component used within the transmission to engage drive as engine speed... Read more

15 in stock 1-2 business days

£44.40 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 04-6019.DR
    Barcode: 0120000120659

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This clutch shoe assembly is a replacement centrifugal clutch component used within the transmission to engage drive as engine speed rises. It is intended for servicing a worn or damaged original assembly on selected Suzuki 125 scooter applications, and fitment should be checked against the original part and dimensions where model variations exist.

    Features

    • Replacement clutch shoe assembly for clutch servicing and repair
    • Fits within the transmission clutch unit
    • Provides drive engagement during take-off and low-speed running
    • Intended to replace a worn or damaged original assembly
    • Suitable for selected Suzuki 125 scooter applications

    Specifications

    • Overall width: 120 mm
    • Overall height: approximately 30 mm
    • Central mounting hole: approximately 24 x 28 mm, slightly oval
    • Friction pads per shoe: 3
    • Approximate friction pad size: 23 x 41 mm

    Cross-Reference Part Numbers

    • Suzuki 21501-08K00-000
    • Suzuki 21501-08K10-000
    • 21501-08KA0-000 — Suzuki oem (related part; not an equivalent)

    Vehicle Fitments

    • Suzuki Access 125, 2020, model UZ125NE M0 (E01), clutch shoe assembly
    • Suzuki Access 125, 2021, model UZ125NE M1 (E01), clutch shoe assembly
    • Suzuki Access 125, 2022, model UZ125NE M2 (E01), clutch shoe assembly
    • Suzuki Access 125, 2023, model UZ125NEY M3 (P19), clutch shoe assembly
    • Suzuki Address 125, 2023, model UZ125NEY M3 (P19), clutch shoe assembly
    • Suzuki Address 125, 2024, model UZ125NEY M4 (P19), clutch shoe assembly
    • Suzuki Avenis 125, 2023, model UN125NE M3 (P21), clutch shoe assembly
    • Suzuki Avenis 125, 2024, model UN125NE M4 (P21), clutch shoe assembly
    • Suzuki Burgman 125, 2023, model UB125LNM M3 (P21), clutch shoe assembl
    • Access 125 (2020-2023)
    • Address 125 (2023-2024)
    • Avenis 125 (2023-2024)
    • Burgman 125 (2023)
