Description
HONDA
CR250R 2002-2007,

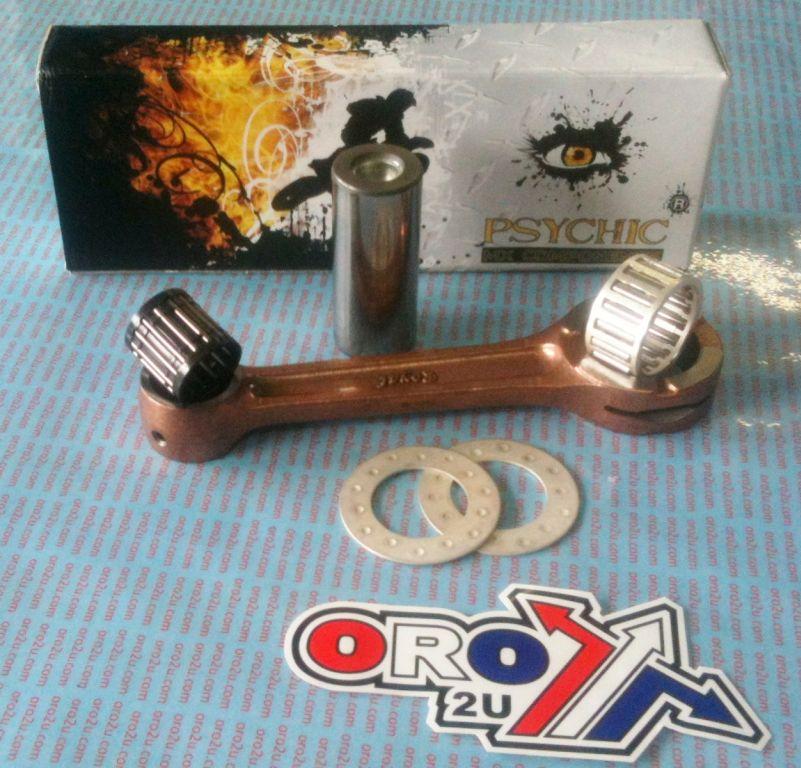

CONNECTING CONROD ROD REBUILD KIT PSYCHIC MX-09009
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Big End Bearing (mm): 25x32x16.3
Big End Bore (mm): 32.00
Big End Width (mm): 16.50
Center To Center (mm): 125.30
Pin Diameter (mm): 25.00
Pin Length (mm): 60.00
Small End Bearing (mm): 18x22x21.7
Part No. 56-169.DR (radhouse.co.uk)
Cross reference numbers ONLY.
HOT RODS 8608, WOSSNER P2020, WISECO WPR187, PSYCHIC MX- 09009, HONDA: 13300-KSK-670 HONDA: 13300-KSK-730 HONDA: 13300-KZ3-L20,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HONDA |
CR 250 |
2002-2007 |
