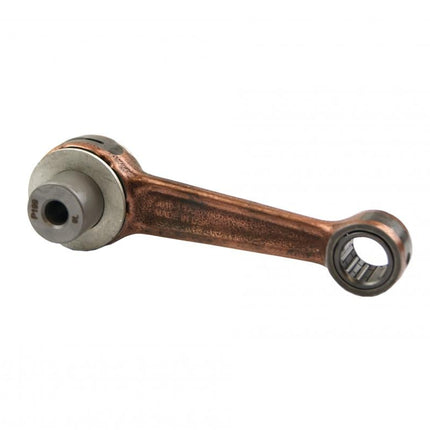

Name: Connecting Rod 02-18 RM85, Hot Rods 8610 Suzuki
Brand: Hot Rods
SKU: 56-108.HR
Price: 141.0 GBP
Availability: InStock

Connecting Rod 02-18 RM85, Hot Rods 8610 Suzuki

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

The Hot Rods connecting rod kit (Part No. 8610) is a premium replacement designed for Suzuki RM85 models. Engineered with precision and durability, it provides exceptional performance in high-RPM applications, ensuring reliability under heavy loads.

Features:

Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for enhanced strength and durability.
Advanced design incorporates side scalloping and vent slots to reduce high-RPM bearing race distortion.
Double-forged rods for improved grain flow and consistent dimensions.
Shot-peened and double-honed for superior strength and reliability.
Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
Thrust washers and crank pin bearings are silver-coated for enhanced lubricity.
Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

A (Center-to-Center Length): 93.50
B (Big End Bore Diameter): 26.00
C (Big End Width): N/A
D (Small End Bore Diameter): 14.00
E (Small End Width): N/A
F (Pin Length): 44.60
Washer Thickness: 1.50
Big End Bearing: 20 x 26 x 13.7 mm

Vehicle Compatibility:

Suzuki RM85: 2002–2018
Suzuki RM85L: 2003–2012

Cross-reference OEM Part Numbers:

Suzuki: 12161-03B00
Suzuki: 12161-03B01
Suzuki: 12161-03B02

Part Number:
56-108.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 80	1990-2001
SUZUKI	RM 85	2002-2015
SUZUKI	RM 85	2002-2021
SUZUKI	RM 85	2002-2020
SUZUKI	RM 85	2002-2019
SUZUKI	RM 85	2002-2018
SUZUKI	RM 85	2002-2012
SUZUKI	RM 85	2002-2016
SUZUKI	RM 85	2015-2016

Connecting Rod 02-18 RM85, Hot Rods 8610 Suzuki

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

The Hot Rods connecting rod kit (Part No. 8610) is a premium replacement designed for Suzuki RM85 models. Engineered with... Read more

1 in stock 1-2 business days

£141.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-108.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

The Hot Rods connecting rod kit (Part No. 8610) is a premium replacement designed for Suzuki RM85 models. Engineered with precision and durability, it provides exceptional performance in high-RPM applications, ensuring reliability under heavy loads.

Features:

Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for enhanced strength and durability.
Advanced design incorporates side scalloping and vent slots to reduce high-RPM bearing race distortion.
Double-forged rods for improved grain flow and consistent dimensions.
Shot-peened and double-honed for superior strength and reliability.
Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
Thrust washers and crank pin bearings are silver-coated for enhanced lubricity.
Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

A (Center-to-Center Length): 93.50
B (Big End Bore Diameter): 26.00
C (Big End Width): N/A
D (Small End Bore Diameter): 14.00
E (Small End Width): N/A
F (Pin Length): 44.60
Washer Thickness: 1.50
Big End Bearing: 20 x 26 x 13.7 mm

Vehicle Compatibility:

Suzuki RM85: 2002–2018
Suzuki RM85L: 2003–2012

Cross-reference OEM Part Numbers:

Suzuki: 12161-03B00
Suzuki: 12161-03B01
Suzuki: 12161-03B02

Part Number:
56-108.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 80	1990-2001
SUZUKI	RM 85	2002-2015
SUZUKI	RM 85	2002-2021
SUZUKI	RM 85	2002-2020
SUZUKI	RM 85	2002-2019
SUZUKI	RM 85	2002-2018
SUZUKI	RM 85	2002-2012
SUZUKI	RM 85	2002-2016
SUZUKI	RM 85	2015-2016
