Description

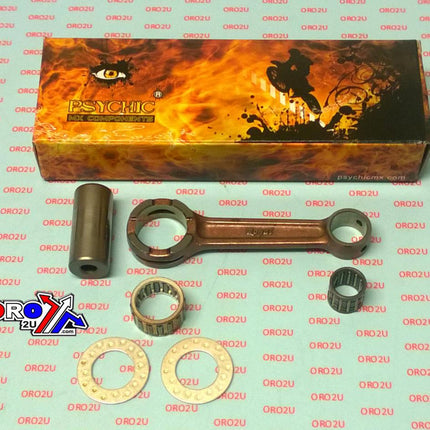

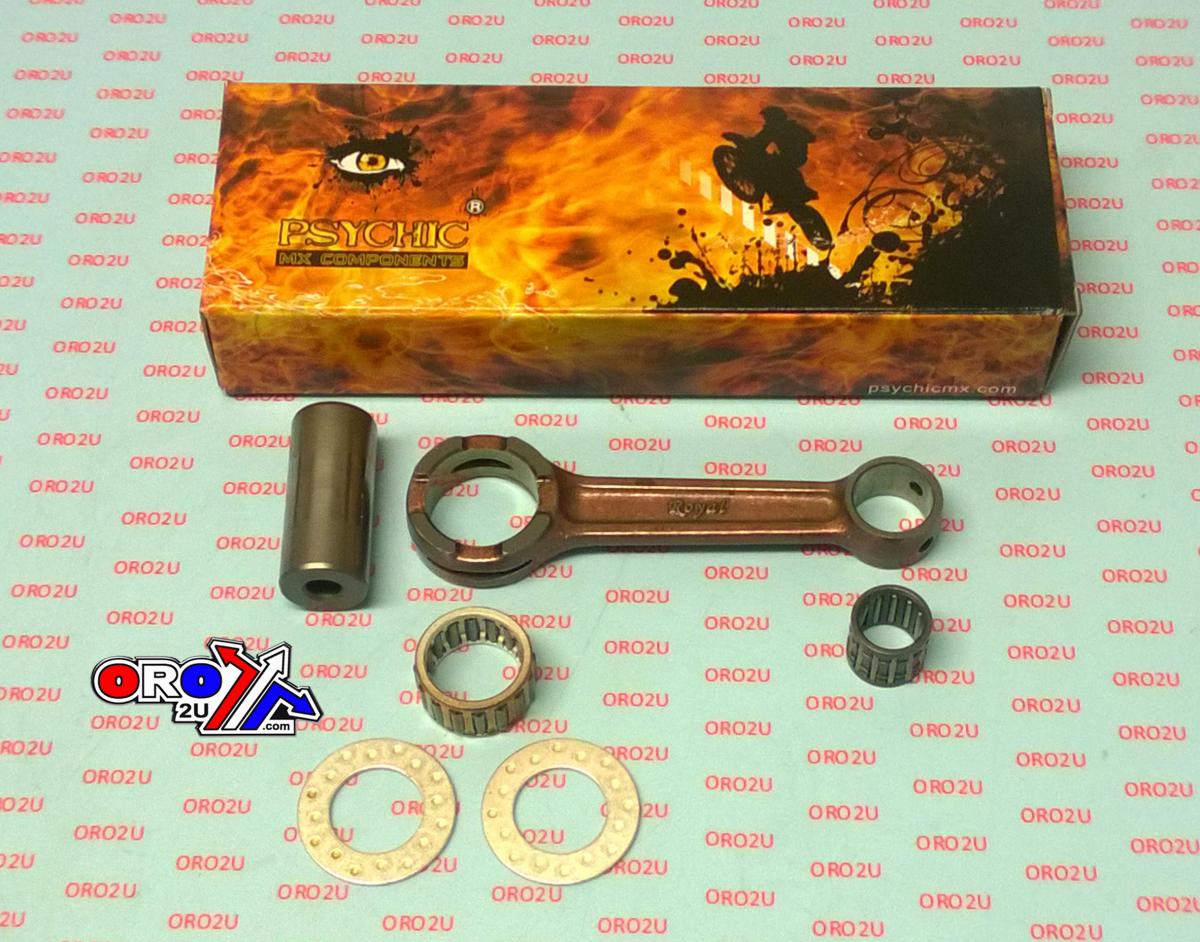

CONNECTING ROD REBUILD KIT PSYCHIC MX-09055
SUZUKI
RM85 2002 - 2020,
RM80 1991 - 2001,

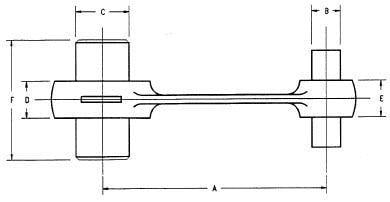

CONNECTING ROD SIZE PLEASE SEE DRAWING
SIZE mm. A = 93.50, B = 14 , C = 20 , D = 14, E = 14, F = 44.60
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

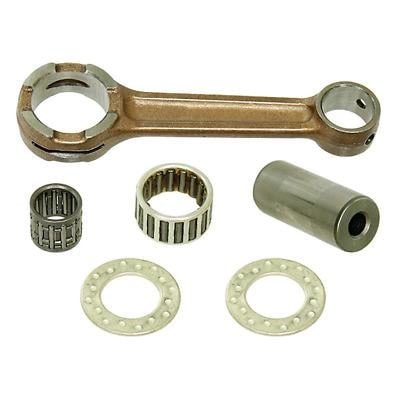

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
- PSYCHIC Racing products are a high quality replacement part and
- Please check the image before ordering to avoid mistakes.
SIZE
| MM |
| Centre 2 Centre | 93.50
|
| Small End Bearing | 14x18x
|
| Small End Bore Ø | 18
|
| Small End Width | 14
|
| Big End Bearing | 20x26x14
|
| Big End Bore Ø | 26
|
| Big End Width | 14
|
| Big End Pin Ø | 20
|
| Big End Pin Length | 44.60
|
| Washer Thickness |
20x1.50
|
Part No. 56-108.DR (radhouse.co.uk)
Cross reference numbers ONLY.
PROX 03.3122, 12161-03B00, 12161-03B01, 12161-03B02, MX-09055, PROX 03.3122, WOSSNER P2007, HOTRODS 8610, 12161-03B00, 12161-03B01, 12161-03B02,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| SUZUKI |
RM 80 |
1990-2001 |
| SUZUKI |
RM 85 |
2002-2015 |
| SUZUKI |
RM 85 |
2002-2021 |
| SUZUKI |
RM 85 |
2002-2020 |
| SUZUKI |
RM 85 |
2002-2019 |
| SUZUKI |
RM 85 |
2002-2018 |
| SUZUKI |
RM 85 |
2002-2012 |
| SUZUKI |
RM 85 |
2002-2016 |
| SUZUKI |
RM 85 |
2015-2016 |
