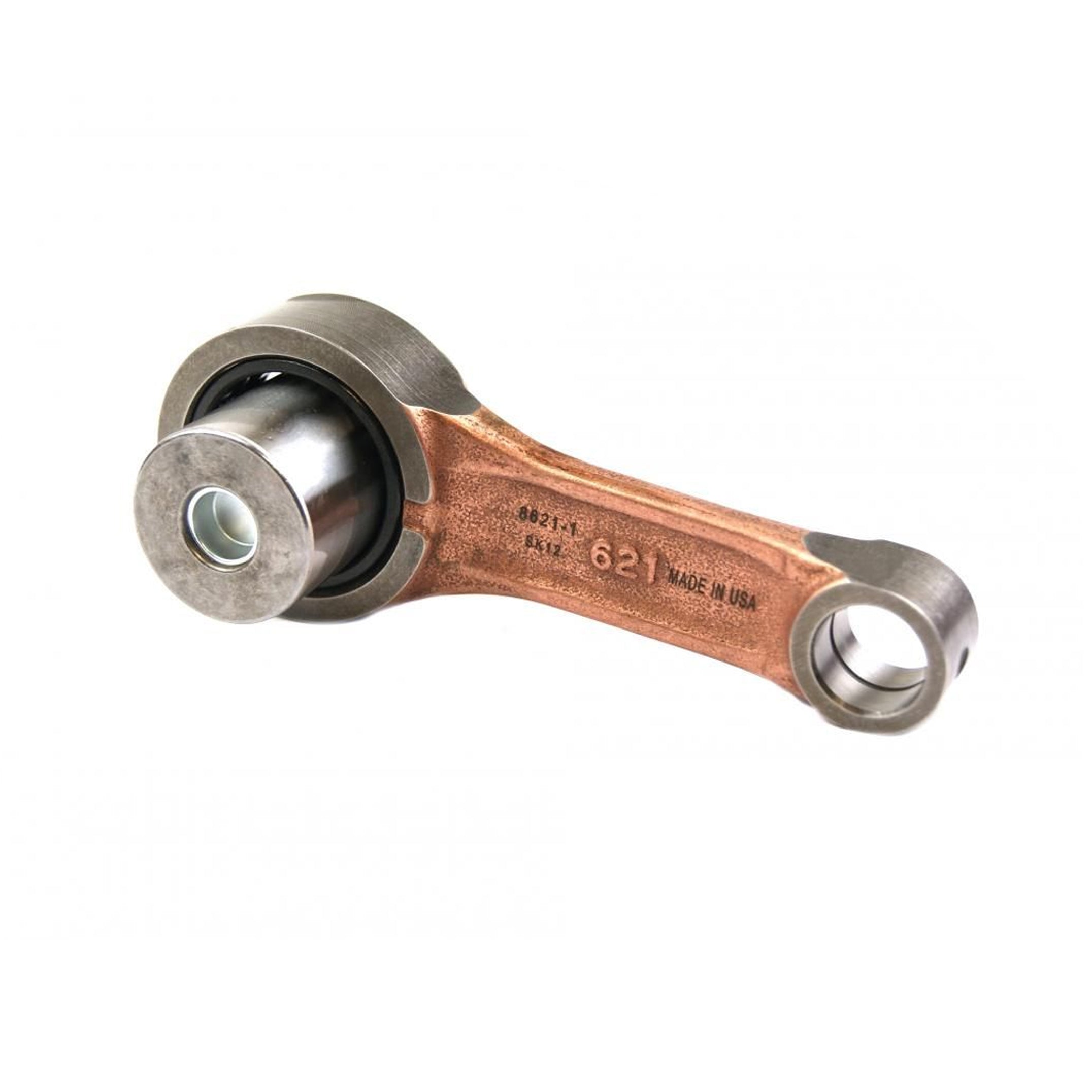

Hot Rods Connecting Rod Kit – 8621

This high-quality connecting rod kit is designed as a reliable replacement for heavy-duty applications. Manufactured from hot-rolled ASTM 4115 material, the rods are case-hardened to 58-62 Rc for exceptional durability. The advanced design features side scalloping and vent slots to minimize high-rpm bearing race distortion.

Double-forged for improved grain flow and dimensional consistency, the rods are shot-peened and double-honed to handle heavy loads. The small ends are double-drilled for enhanced lubrication and cooling to the wrist pin bearing, crucial in high-stress applications. Thrust washers and crank pin bearings are silver-coated for superior lubricity and performance.

Features:

Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Constructed from hot-rolled ASTM 4115 material, case-hardened to 58-62 Rc.
Advanced design with side scalloping and vent slots for reduced high-rpm distortion.
Double-forged for consistent dimensions and improved grain flow.
Shot-peened and double-honed for enhanced strength under heavy loads.
Double-drilled small ends for improved lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings for increased lubricity.

Technical Specifications:

Big End Bearing (mm): 34x42x20
Big End Bore (mm): 42.00
Big End Width (mm): 19.95
Center to Center (mm): 103.50
Pin Diameter (mm): 34.00
Pin Length (mm): 60.80
Small End Bearing (mm): Bushing
Small End Bore (mm): 18.00

Cross-Reference OEM Part Numbers:

YAMAHA: 5TA-11651-00-00
YAMAHA: 5XD-11651-00-00

Vehicle Fitment:

Yamaha WR450F: 2004–2006
Yamaha YZ450F: 2003–2005

Part Number: 56-911.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YZF 450	2003-2005
YAMAHA	YZ F 450	2003-2005
YAMAHA	WRF 450	2003-2006
YAMAHA	WR F 450	2003-2006
