Description
YAMAHA
2004 - 2006 WR 450F,
2003 - 2005 YZ 450F,

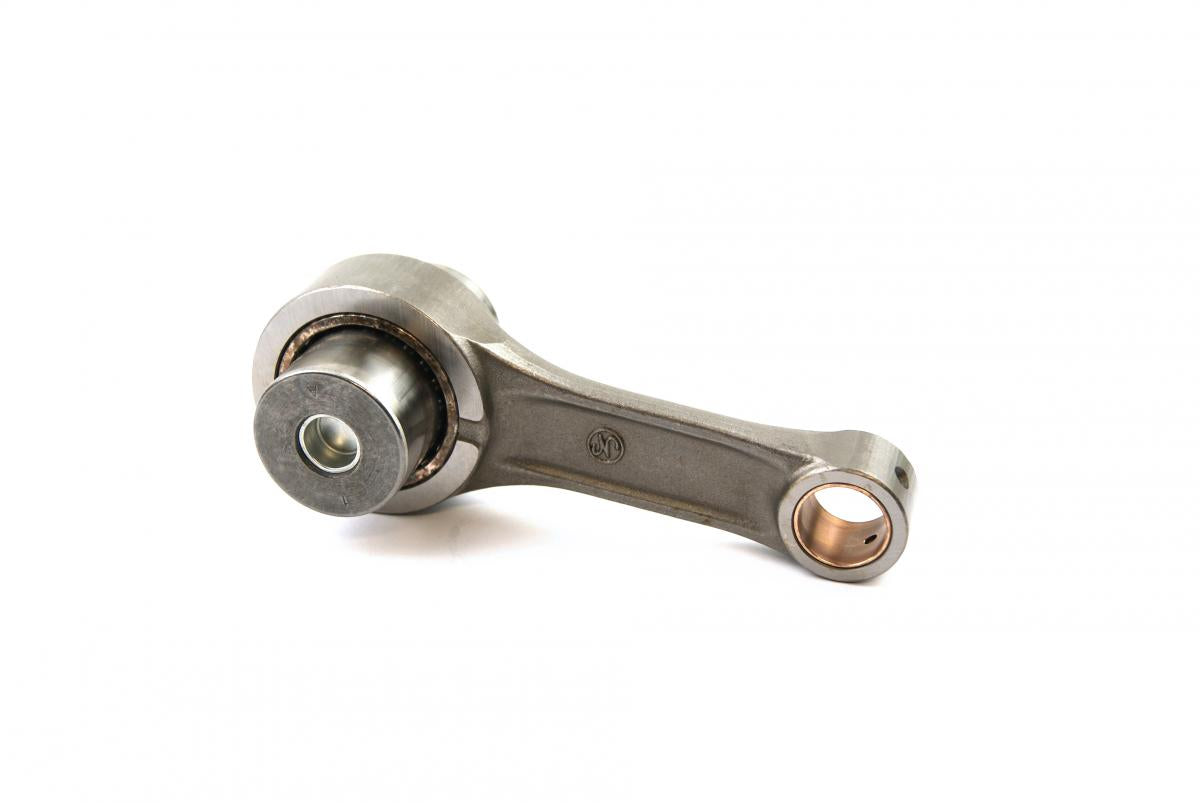

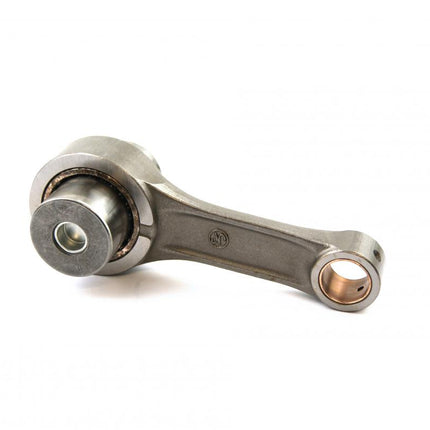

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09086
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

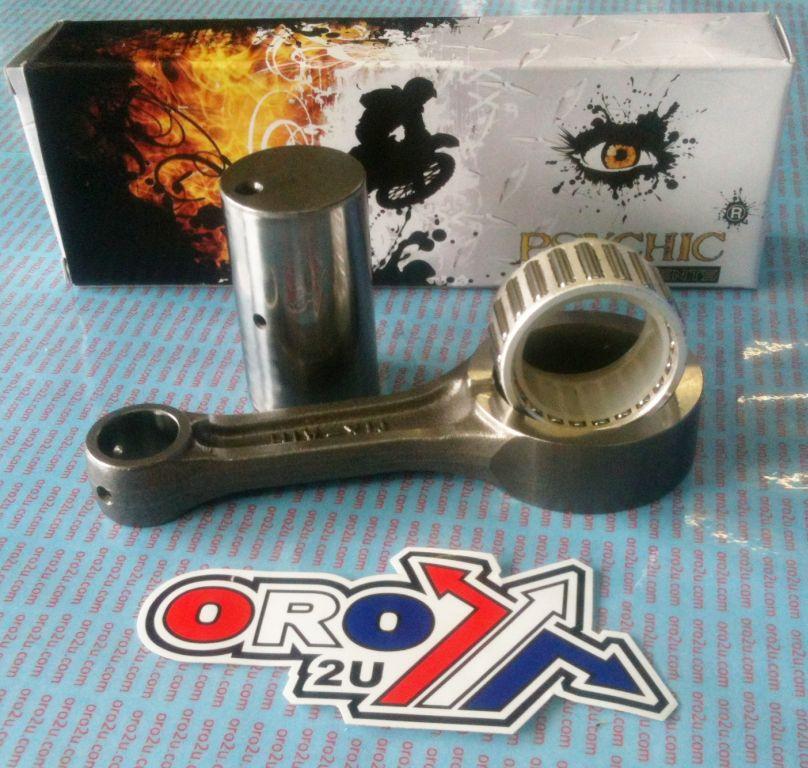

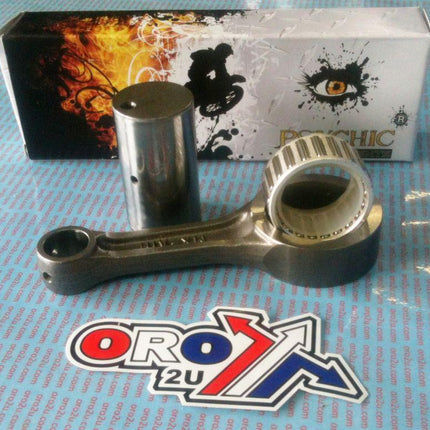

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 103.50 |
| Small End Bearing | None |
| Small End Bore Ø | 16 |
| Small End Width | 15 |
| Big End Bearing | 34x42x20 |
| Big End Bore Ø | 42 |
| Big End Width | 20
|
| Big End Pin Ø | 34 |
| Big End Pin Length | 60.90
|
| Washer Thickness | None
|
Part No. 56-911.DR (radhouse.co.uk)
Cross reference numbers.
ATHENA P40321022, 5XD-11651-00-00, PSYCHIC MX-09086, HOTRODS 8621, PROX 03.2423, WISECO WPR197, WOSSNER P4007, PROX 03-2423, YAMAHA: 5TA-11651-00-00 YAMAHA: 5XD-11651-00-00,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| YAMAHA |
YZF 450 |
2003-2005 |
| YAMAHA |
YZ F 450 |
2003-2005 |
| YAMAHA |
WRF 450 |
2003-2006 |
| YAMAHA |
WR F 450 |
2003-2006 |
