Description
CONNECTING ROD REBUILD KIT PSYCHIC MX-09035
KAWASAKI
KX125 2003-2006,

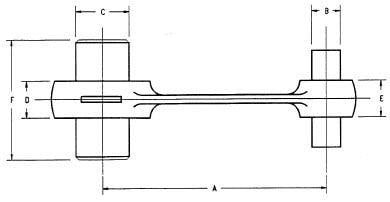

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 104, B = 15, C = 22, D = 17, E = 17, F = 41
Center-Center 104mm
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

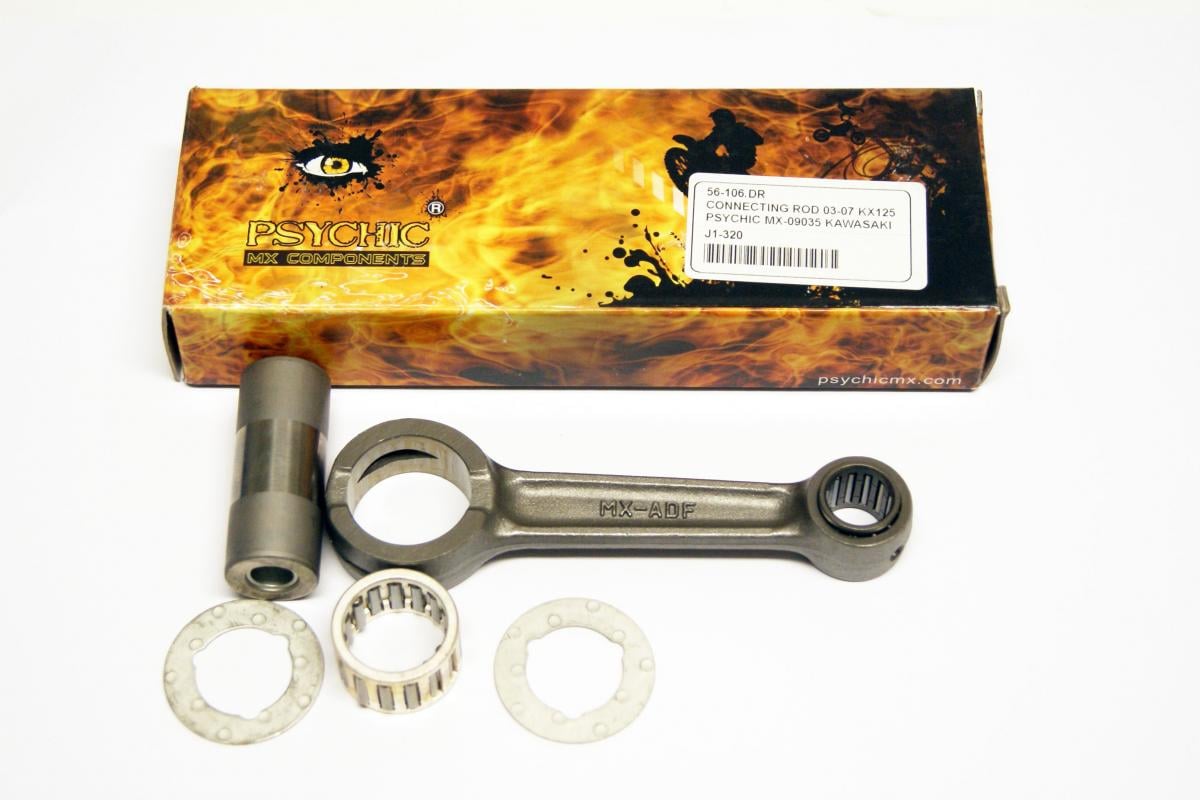

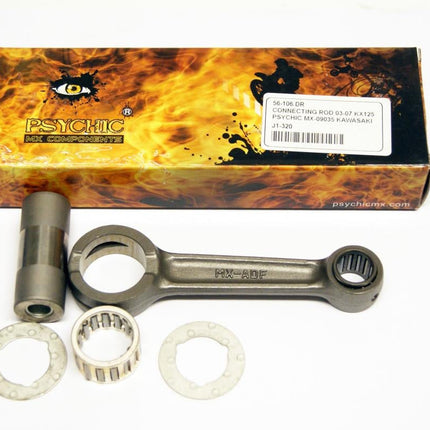

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Part No. 56-106.DR (radhouse.co.uk)
Cross reference numbers ONLY.
13032-0010, 13032-1253, PSYCHIC MX-09035, PROX 03.4223, WOSSNER P2010, HOTRODS 8612, ATHENA P40321033
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| KAWASAKI |
KX 125 |
2003-2008 |
| KAWASAKI |
KX 125 |
2003-2005 |
| KAWASAKI |
KX 125 |
2003-2006 |
