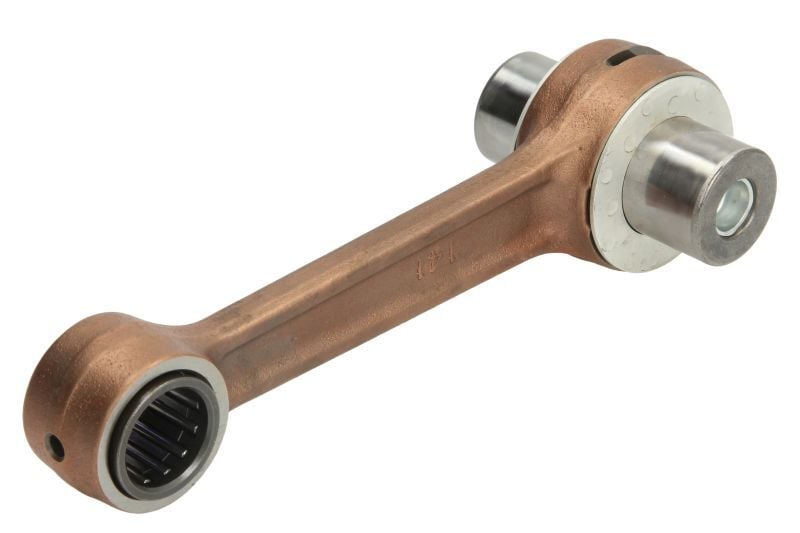

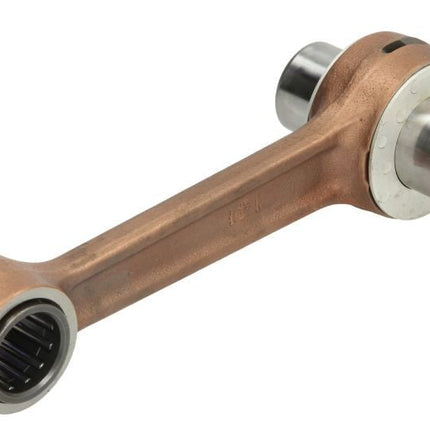

Name: Connecting Rod 03-12 RM250, Hotrod 8611 Suzuki
Brand: Hot Rods
SKU: 56-109.HR
Price: 153.64 GBP
Availability: InStock

Connecting Rod 03-12 RM250, Hotrod 8611 Suzuki

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

The Hot Rods connecting rod kit (Part No. 8611) is a high-performance replacement for Suzuki RM250 models, engineered for superior strength, reliability, and performance under demanding conditions. Designed with advanced materials and features, this kit is ideal for high-RPM applications.

Features:

Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum durability.
Advanced design incorporates side scalloping and vent slots to minimize high-RPM bearing race distortion.
Double-forged rods enhance grain flow and maintain dimensional accuracy.
Shot-peened and double-honed for added strength and reliability under heavy loads.
Small ends are double-drilled for improved lubrication and cooling to the wrist pin bearing.
Thrust washers and crank pin bearings are silver-coated for improved lubricity.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

Center-to-Center Length: 125.00
Big End Bore Diameter: 32.00
Big End Width: N/A
Pin Diameter: 24.00
Pin Length: 58.90
Small End Bore Diameter: 23.00
Small End Width: N/A
Washer Thickness: 1.00

Vehicle Compatibility:

Suzuki RM250: 2003–2012

Cross-reference OEM Part Numbers:

Suzuki: 12161-37F20

Part Number:
56-109.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	2003-2012
SUZUKI	RM 250	2003-2008

Connecting Rod 03-12 RM250, Hotrod 8611 Suzuki

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

The Hot Rods connecting rod kit (Part No. 8611) is a high-performance replacement for Suzuki RM250 models, engineered for superior... Read more

1 in stock 1-2 business days

£153.64 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-109.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

The Hot Rods connecting rod kit (Part No. 8611) is a high-performance replacement for Suzuki RM250 models, engineered for superior strength, reliability, and performance under demanding conditions. Designed with advanced materials and features, this kit is ideal for high-RPM applications.

Features:

Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum durability.
Advanced design incorporates side scalloping and vent slots to minimize high-RPM bearing race distortion.
Double-forged rods enhance grain flow and maintain dimensional accuracy.
Shot-peened and double-honed for added strength and reliability under heavy loads.
Small ends are double-drilled for improved lubrication and cooling to the wrist pin bearing.
Thrust washers and crank pin bearings are silver-coated for improved lubricity.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

Center-to-Center Length: 125.00
Big End Bore Diameter: 32.00
Big End Width: N/A
Pin Diameter: 24.00
Pin Length: 58.90
Small End Bore Diameter: 23.00
Small End Width: N/A
Washer Thickness: 1.00

Vehicle Compatibility:

Suzuki RM250: 2003–2012

Cross-reference OEM Part Numbers:

Suzuki: 12161-37F20

Part Number:
56-109.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	2003-2012
SUZUKI	RM 250	2003-2008
