Description
CONNECTING ROD REBUILD KIT PSYCHIC MX-09058
SUZUKI
RM250 2003-2012,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

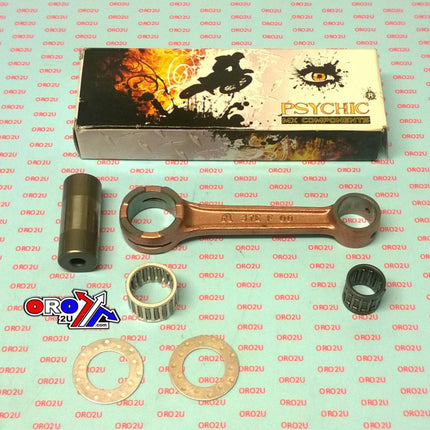

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
- Meets or exceeds OEM quality.
- Direct oem replacement.
- Best value for money
- All are made to OEM specifications and match the original equipment in appearance.
- PSYCHIC products are a high quality replacement part and
- Please check the image before ordering to avoid mistakes.
SIZE
| MM |
| Centre 2 Centre | 125
|
| Small End Bearing | 18x23x21.80
|
| Small End Bore Ø | 23
|
| Small End Width | 20 [19.80]
|
| Big End Bearing | 24x30x19.80
|
| Big End Bore Ø | 30
|
| Big End Width | 20 [19.80]
|
| Big End Pin Ø | 24
|
| Big End Pin Length | 59.25
|
| Washer Thickness | 24x39x1.0 |
CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm.
Part No. 56-109.DR (radhouse.co.uk)
Cross reference numbers ONLY.
RS-3206, PSYCHIC MX-09058, HOTROD 8611, PROX 03.3323, WOSSNER P2025, 12161-37F20, CR192
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| SUZUKI |
RM 250 |
2003-2012 |
| SUZUKI |
RM 250 |
2003-2008 |
