Name: Connecting Rod 03-13 YZ250F, Hot Rods 8619 Yamaha YZF250
Brand: Hot Rods
SKU: 56-910.HR
Price: 232.34 GBP
Availability: InStock

Connecting Rod 03-13 YZ250F, Hot Rods 8619 Yamaha YZF250

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

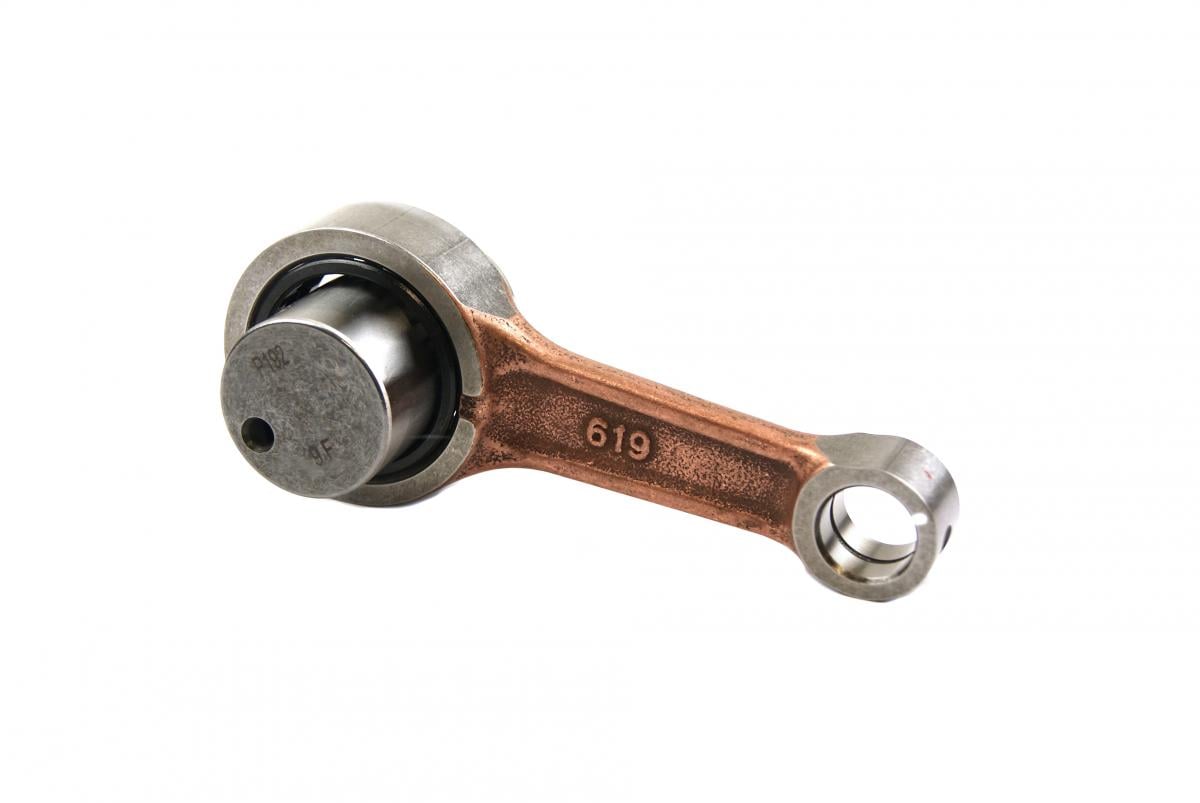

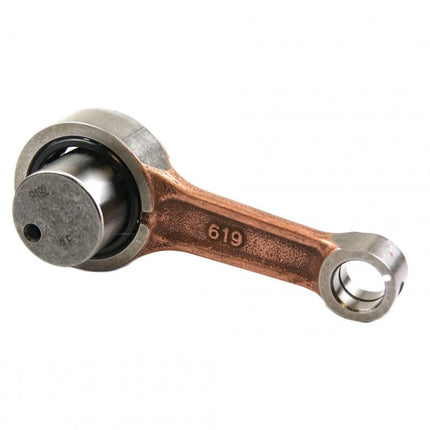

Hot Rods Heavy-Duty Connecting Rod Kit – 8619

Kits include a connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. These high-quality replacement kits are crafted from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc for durability. An advanced design incorporates side scalloping and vent slots to minimize high-rpm bearing race distortion.

The rods are double-forged for improved grain flow and dimensional consistency, shot-peened, and double-honed for enhanced strength under heavy loads. Small ends are double-drilled to ensure optimal lubrication and cooling to the wrist pin bearing, especially critical when the piston crown is close to the wrist pin. Thrust washers and crank pin bearings are silver-coated for additional lubricity.

Features:

Complete kit with all necessary components for replacement.
Constructed from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc.
Strategically designed with side scalloping and vent slots to reduce high-rpm bearing distortion.
Double-forged for improved grain flow and consistent dimensions.
Shot-peened and double-honed for superior strength under heavy loads.
Small ends are double-drilled for enhanced lubrication and cooling.
Silver-coated thrust washers and crank pin bearings for added lubricity.

Technical Specifications:

Big End Bearing (mm): 32x40x18
Big End Bore (mm): 40.00
Big End Width (mm): 18.00
Center to Center (mm): 93.50
Pin Diameter (mm): 32.00
Pin Length (mm): 54.80
Small End Bearing (mm): Bushing
Small End Bore (mm): 16.00

Cross-Reference OEM Part Numbers:

YAMAHA: 5UL-11651-00-00
YAMAHA: 5XC-11651-00-00

Vehicle Fitment:

Yamaha YZ250F: 2003–2013
Yamaha YZ250FSP 50th Anniversary Edition: 2006
Yamaha WRF250: 2003–2013

Part Number: 56-910.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
GAS-GAS	EC F 250	2010-2015
GAS-GAS	EC F 300	2013-2015
YAMAHA	WR F 250	2003-2013
YAMAHA	YZF 250	2003-2013
YAMAHA	YZ F 250	2003-2013
GAS-GAS	EC 300	2013-2015
YAMAHA	WRF 250	2003-2013

Connecting Rod 03-13 YZ250F, Hot Rods 8619 Yamaha YZF250

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Hot Rods Heavy-Duty Connecting Rod Kit – 8619 Kits include a connecting rod, crank pin, crank pin bearing, top-end bearing,... Read more

2 in stock 1-2 business days

£232.34 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-910.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Hot Rods Heavy-Duty Connecting Rod Kit – 8619

Kits include a connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. These high-quality replacement kits are crafted from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc for durability. An advanced design incorporates side scalloping and vent slots to minimize high-rpm bearing race distortion.

The rods are double-forged for improved grain flow and dimensional consistency, shot-peened, and double-honed for enhanced strength under heavy loads. Small ends are double-drilled to ensure optimal lubrication and cooling to the wrist pin bearing, especially critical when the piston crown is close to the wrist pin. Thrust washers and crank pin bearings are silver-coated for additional lubricity.

Features:

Complete kit with all necessary components for replacement.
Constructed from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc.
Strategically designed with side scalloping and vent slots to reduce high-rpm bearing distortion.
Double-forged for improved grain flow and consistent dimensions.
Shot-peened and double-honed for superior strength under heavy loads.
Small ends are double-drilled for enhanced lubrication and cooling.
Silver-coated thrust washers and crank pin bearings for added lubricity.

Technical Specifications:

Big End Bearing (mm): 32x40x18
Big End Bore (mm): 40.00
Big End Width (mm): 18.00
Center to Center (mm): 93.50
Pin Diameter (mm): 32.00
Pin Length (mm): 54.80
Small End Bearing (mm): Bushing
Small End Bore (mm): 16.00

Cross-Reference OEM Part Numbers:

YAMAHA: 5UL-11651-00-00
YAMAHA: 5XC-11651-00-00

Vehicle Fitment:

Yamaha YZ250F: 2003–2013
Yamaha YZ250FSP 50th Anniversary Edition: 2006
Yamaha WRF250: 2003–2013

Part Number: 56-910.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
GAS-GAS	EC F 250	2010-2015
GAS-GAS	EC F 300	2013-2015
YAMAHA	WR F 250	2003-2013
YAMAHA	YZF 250	2003-2013
YAMAHA	YZ F 250	2003-2013
GAS-GAS	EC 300	2013-2015
YAMAHA	WRF 250	2003-2013
