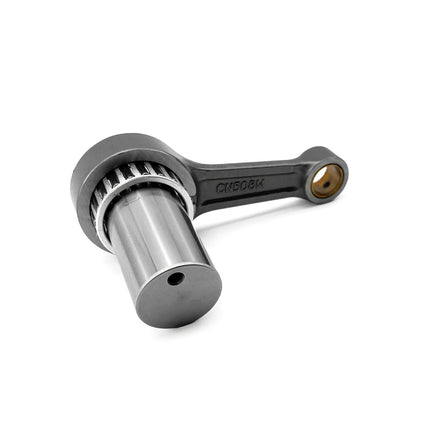

Connecting Rod 03-13 YZ250F, Namura RX-40017 Yamaha, MX-09085

Description

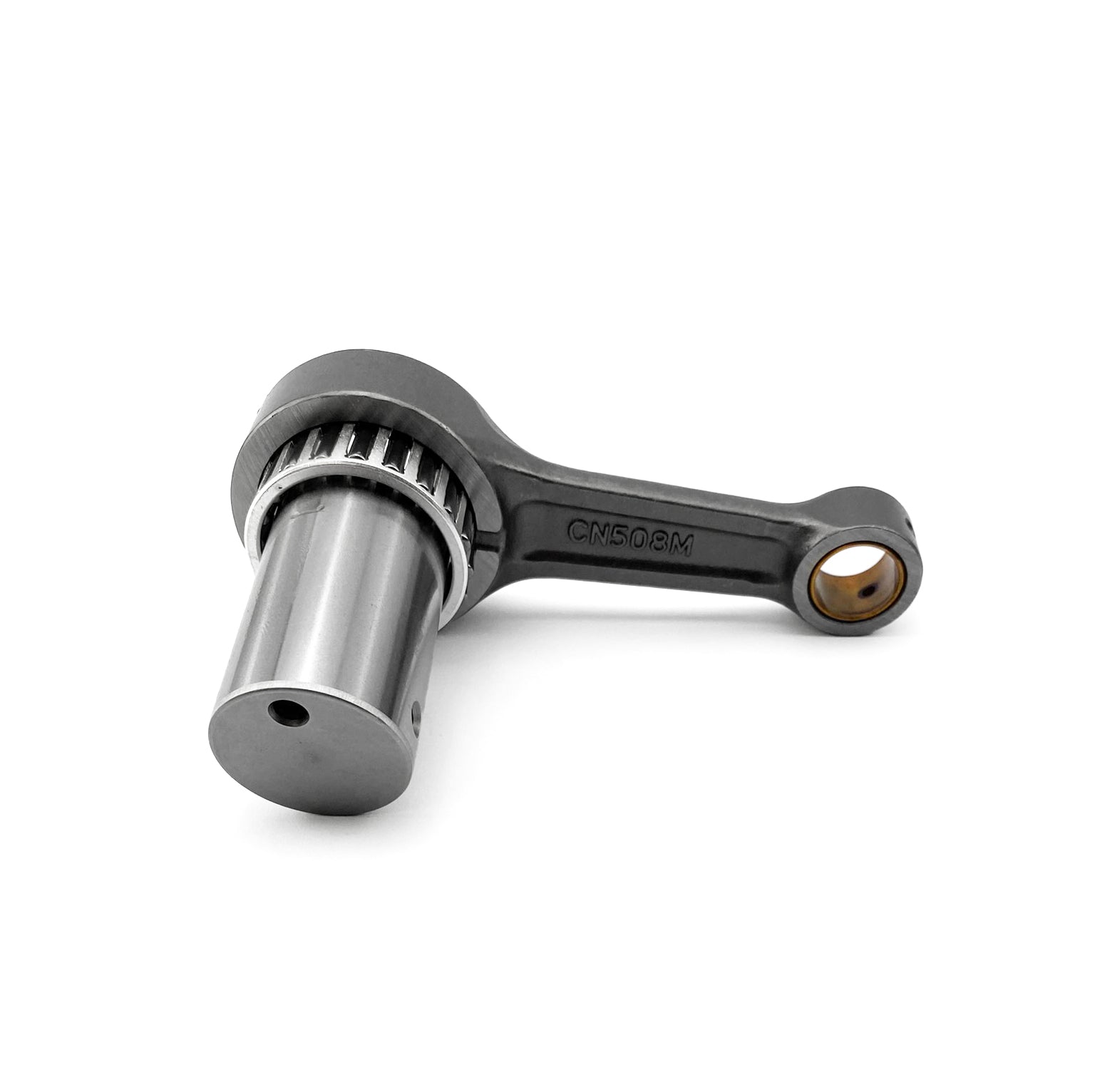

Heavy-Duty Connecting Rod Rebuild Kit

This connecting rod rebuild kit offers a durable OE replacement solution. Certified chrome alloy steel construction ensures superior strength and longevity. Crankpins are manufactured from hot-rolled ASTM steel and case-hardened for optimal performance. The included thrust washers are made from bronze phosphor and feature a silver coating for enhanced durability and lubricity.

The rod assembly is sold complete, including the rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed. Fully compatible with aftermarket and OE crankshafts.

Features:

  • Heavy-duty OE replacement connecting rods for high performance.
  • Made from certified chrome alloy steel (SNCM220) for superior strength.
  • Crankpins are hot-rolled ASTM steel and case-hardened for durability.
  • Silver-coated bronze phosphor thrust washers for added lubricity.
  • Complete rod assembly with all necessary components for rebuilds.
  • Fully compatible with both aftermarket and OE crankshafts.

Technical Specifications:

  • Centre to Centre (mm): 93.50
  • Small End Bearing: None
  • Small End Bore (mm): 16
  • Small End Width (mm): 15
  • Big End Bearing (mm): 32x40x17.8
  • Big End Bore (mm): 40
  • Big End Width (mm): 18
  • Big End Pin Diameter (mm): 32
  • Big End Pin Length (mm): 54.80
  • Washer Thickness: None

Cross-Reference OEM Part Numbers:

  • PSYCHIC: MX-09085
  • RY: 2211
  • HOTROD: 8619
  • WISECO: WPR196
  • WOSSNER: P4005
  • YAMAHA: 17D-11651-90-00
  • YAMAHA: 5UL-11651-00-00
  • YAMAHA: 5XC-11651-00-00

Vehicle Fitment:

  • Yamaha YZ250F/YZF250: 2003–2013
  • Yamaha WR250F/WRF250: 2003–2013
  • Yamaha YZ250FSP 50th Anniversary Edition: 2006
  • Gas Gas EC250F: 2010–2015

Part Number: 56-910.NM

Connecting Rod 03-13 YZ250F, Namura RX-40017 Yamaha, MX-09085

Product form

Heavy-Duty Connecting Rod Rebuild Kit This connecting rod rebuild kit offers a durable OE replacement solution. Certified chrome alloy steel... Read more

7 in stock 1-2 business days

£99.93 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-910.NM

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Heavy-Duty Connecting Rod Rebuild Kit

    This connecting rod rebuild kit offers a durable OE replacement solution. Certified chrome alloy steel construction ensures superior strength and longevity. Crankpins are manufactured from hot-rolled ASTM steel and case-hardened for optimal performance. The included thrust washers are made from bronze phosphor and feature a silver coating for enhanced durability and lubricity.

    The rod assembly is sold complete, including the rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed. Fully compatible with aftermarket and OE crankshafts.

    Features:

    • Heavy-duty OE replacement connecting rods for high performance.
    • Made from certified chrome alloy steel (SNCM220) for superior strength.
    • Crankpins are hot-rolled ASTM steel and case-hardened for durability.
    • Silver-coated bronze phosphor thrust washers for added lubricity.
    • Complete rod assembly with all necessary components for rebuilds.
    • Fully compatible with both aftermarket and OE crankshafts.

    Technical Specifications:

    • Centre to Centre (mm): 93.50
    • Small End Bearing: None
    • Small End Bore (mm): 16
    • Small End Width (mm): 15
    • Big End Bearing (mm): 32x40x17.8
    • Big End Bore (mm): 40
    • Big End Width (mm): 18
    • Big End Pin Diameter (mm): 32
    • Big End Pin Length (mm): 54.80
    • Washer Thickness: None

    Cross-Reference OEM Part Numbers:

    • PSYCHIC: MX-09085
    • RY: 2211
    • HOTROD: 8619
    • WISECO: WPR196
    • WOSSNER: P4005
    • YAMAHA: 17D-11651-90-00
    • YAMAHA: 5UL-11651-00-00
    • YAMAHA: 5XC-11651-00-00

    Vehicle Fitment:

    • Yamaha YZ250F/YZF250: 2003–2013
    • Yamaha WR250F/WRF250: 2003–2013
    • Yamaha YZ250FSP 50th Anniversary Edition: 2006
    • Gas Gas EC250F: 2010–2015

    Part Number: 56-910.NM
