Description
HONDA
2004-2005 TRX 450ER,
2004-2005 TRX 450R,

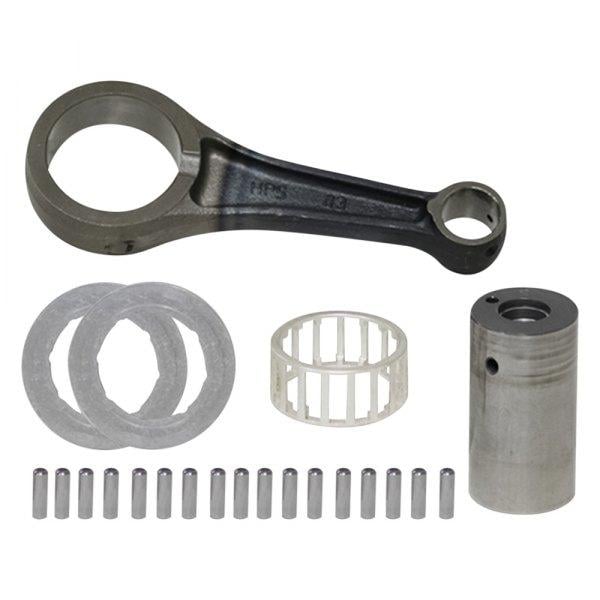

CONROD Connecting rod Rebuild kit Bronco AT-09194
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
SIZE
| MM |
| Centre 2 Centre | 111.50 |
| Small End Bearing | None
|
| Small End Bore Ø | 21
|
| Small End Width | 19
|
| Big End Bearing | 35x46x23.2 |
| Big End Bore Ø | 46
|
| Big End Width |
23.50
|
| Big End Pin Ø | 35
|
| Big End Pin Length | 62.70
|
| Washer Thickness |
35x54x1.0
|
Part No. 56-231.BR (radhouse.co.uk)
Cross Reference Numbers Only:
13000-HP1-670,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HONDA |
TRX R 450 |
2004-2005 |
| HONDA |
TRX ER 450 |
2004-2005 |
