Name: Connecting Rod 04-11 RM125, Hot Rods 8615 Suzuki MX
Brand: Hot Rods
SKU: 56-925.HR
Price: 153.6 GBP
Availability: InStock

Connecting Rod 04-11 RM125, Hot Rods 8615 Suzuki MX

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

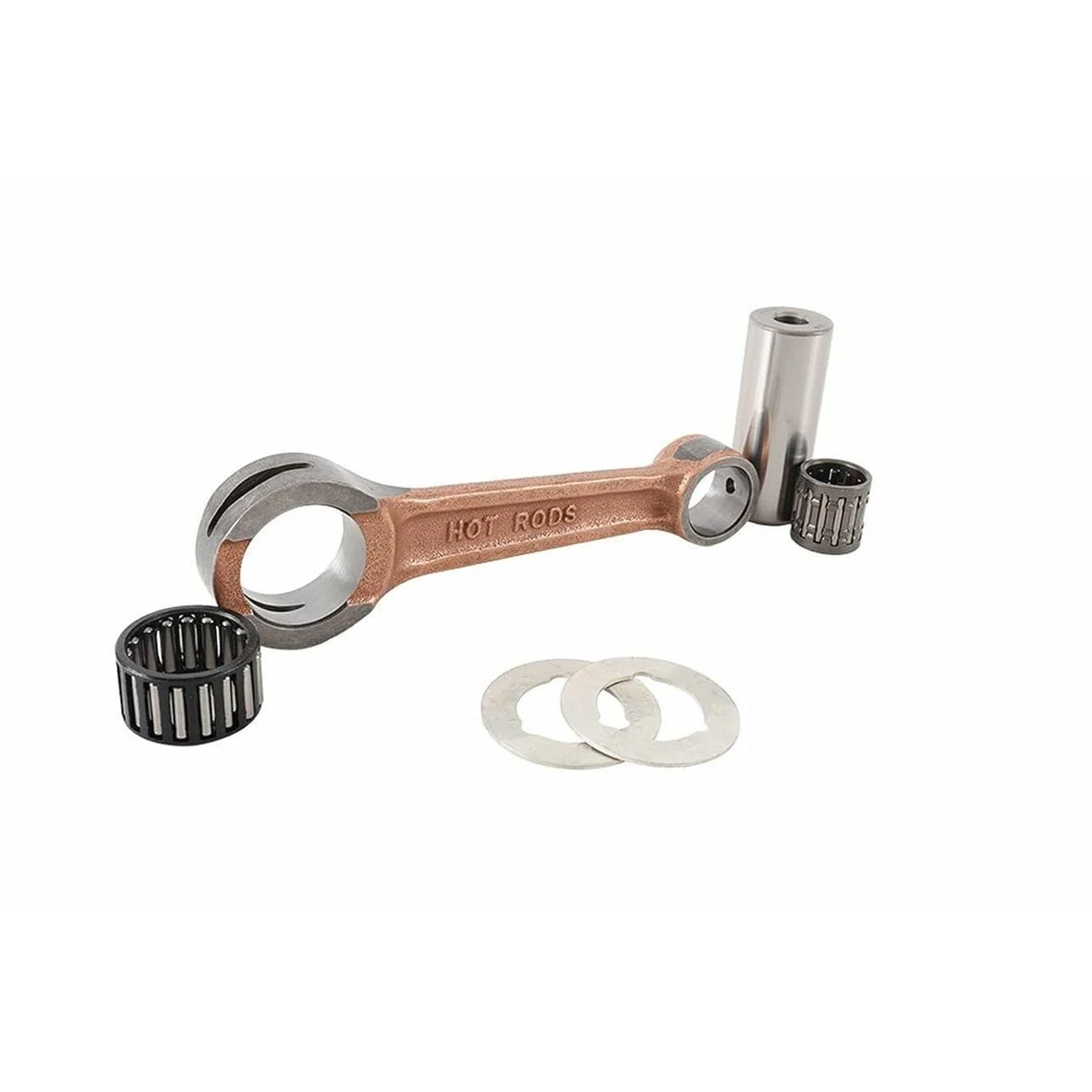

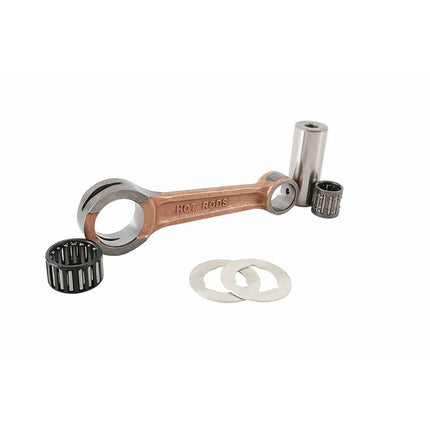

Connecting rod kit for Suzuki RM125 (2004–2008), designed as a high-quality replacement. Manufactured with advanced materials and processes to ensure superior strength, durability, and performance, especially under high-rpm and heavy-load conditions. This complete kit includes all components required for a reliable rebuild.

Features

High-quality connecting rod manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
Advanced design with side scalloping and vent slots to minimize high-rpm bearing race distortion.
Double-forged rods for improved grain flow and dimensional consistency.
Shot-peened and double-honed rods for added durability under heavy loads.
Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings for increased lubricity.
Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications

Center-to-Center: 110.00 mm
Big End Bearing: 22x28x16 mm
Big End Bore: 28.00 mm
Big End Width: 15.90 mm
Pin Diameter: 22.00 mm
Pin Length: 52.70 mm
Small End Bearing: 15x19x19.5 mm

Cross Reference OEM Part Numbers

Suzuki: 12161-36E11
Suzuki: 12161-36E12
Suzuki: 12161-36F20
Suzuki: 12161-36F21

Vehicle Fitments

Suzuki RM125: 2004–2008

Part Number: 56-925.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 125	2004-2007
SUZUKI	RM 125	2004-2011

Connecting Rod 04-11 RM125, Hot Rods 8615 Suzuki MX

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Connecting rod kit for Suzuki RM125 (2004–2008), designed as a high-quality replacement. Manufactured with advanced materials and processes to ensure... Read more

1 in stock 1-2 business days

£153.60 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-925.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Connecting rod kit for Suzuki RM125 (2004–2008), designed as a high-quality replacement. Manufactured with advanced materials and processes to ensure superior strength, durability, and performance, especially under high-rpm and heavy-load conditions. This complete kit includes all components required for a reliable rebuild.

Features

High-quality connecting rod manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
Advanced design with side scalloping and vent slots to minimize high-rpm bearing race distortion.
Double-forged rods for improved grain flow and dimensional consistency.
Shot-peened and double-honed rods for added durability under heavy loads.
Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings for increased lubricity.
Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications

Center-to-Center: 110.00 mm
Big End Bearing: 22x28x16 mm
Big End Bore: 28.00 mm
Big End Width: 15.90 mm
Pin Diameter: 22.00 mm
Pin Length: 52.70 mm
Small End Bearing: 15x19x19.5 mm

Cross Reference OEM Part Numbers

Suzuki: 12161-36E11
Suzuki: 12161-36E12
Suzuki: 12161-36F20
Suzuki: 12161-36F21

Vehicle Fitments

Suzuki RM125: 2004–2008

Part Number: 56-925.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 125	2004-2007
SUZUKI	RM 125	2004-2011
