Connecting Rod 04-17 CRF250R, Hotrods 8616 CRF250X 04-09

Description

Heavy-duty connecting rod kit for Honda CRF250R (2004–2017) and CRF250X (2004–2017), designed for reliability and performance. Manufactured with hot-rolled ASTM 4115 steel and precision-engineered to meet demanding requirements, this kit includes all necessary components for a complete rebuild.

Features

  • Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
  • Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength.
  • Advanced design with side scalloping and vent slots minimizes high-rpm bearing race distortion.
  • Double-forged rods improve grain flow and maintain dimensional accuracy.
  • Shot-peened and double-honed for superior durability under heavy loads.
  • Small ends are double-drilled to enhance lubrication and cooling of the wrist pin bearing.
  • Silver-coated thrust washers and crank pin bearings for increased lubricity.

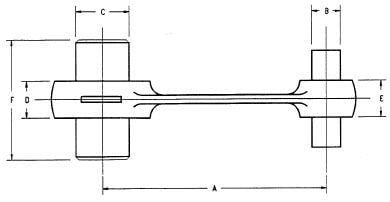

Specifications

  • Centre-to-Centre: 90.00 mm
  • Small End Bearing: Bushing
  • Big End Bearing: 30x38x18 mm
  • Big End Bore: 38.00 mm
  • Big End Width: 17.80 mm
  • Pin Diameter: 30.00 mm
  • Pin Length: 52.85 mm

Included Items

  • (1) Connecting rod
  • (1) Crank pin
  • (2) Thrust washers
  • (1) Needle bearing

Cross Reference OEM Part Numbers

  • Honda: 13000-KRN-670
  • Honda: 13000-KRN-850
  • Honda: 13000-KRN-A00
  • Honda: 13000-KRN-A10
  • Honda: 13000-KRN-A41
  • Honda: 13000-KSC-670
  • Honda: 13000-KSC-671
  • Honda: 13000-KSC-A10

Vehicle Fitments

Honda CRF250R

  • 2004–2017

Honda CRF250X

  • 2004–2017

Part Number: 56-935.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer Model Years
HONDA CRF X 250 2004-2017
HONDA CRF R 250 2004-2017
HONDA CRF X 250 2004-2015
HONDA CRF R 250 2004-2015
HONDA CRF X 250 2004-2016
HONDA CRF X 250 2004-2013
HONDA CRF R 250 2004-2016
