Name: Connecting Rod 04-17 CRF250R, Wossner P4001 04-09 CRF250X
Brand: Wossner
SKU: 56-935.WO
Price: 183.49 GBP
Availability: InStock

Connecting Rod 04-17 CRF250R, Wossner P4001 04-09 CRF250X

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Connecting rod rebuild kit designed for Honda CRF250R (2004-2017) and CRF250X (2004-2009) models. This high-quality replacement kit is manufactured in Germany and engineered for strength, precision, and durability. It includes all necessary components for a complete rebuild and is built to perform under demanding conditions.

Features:

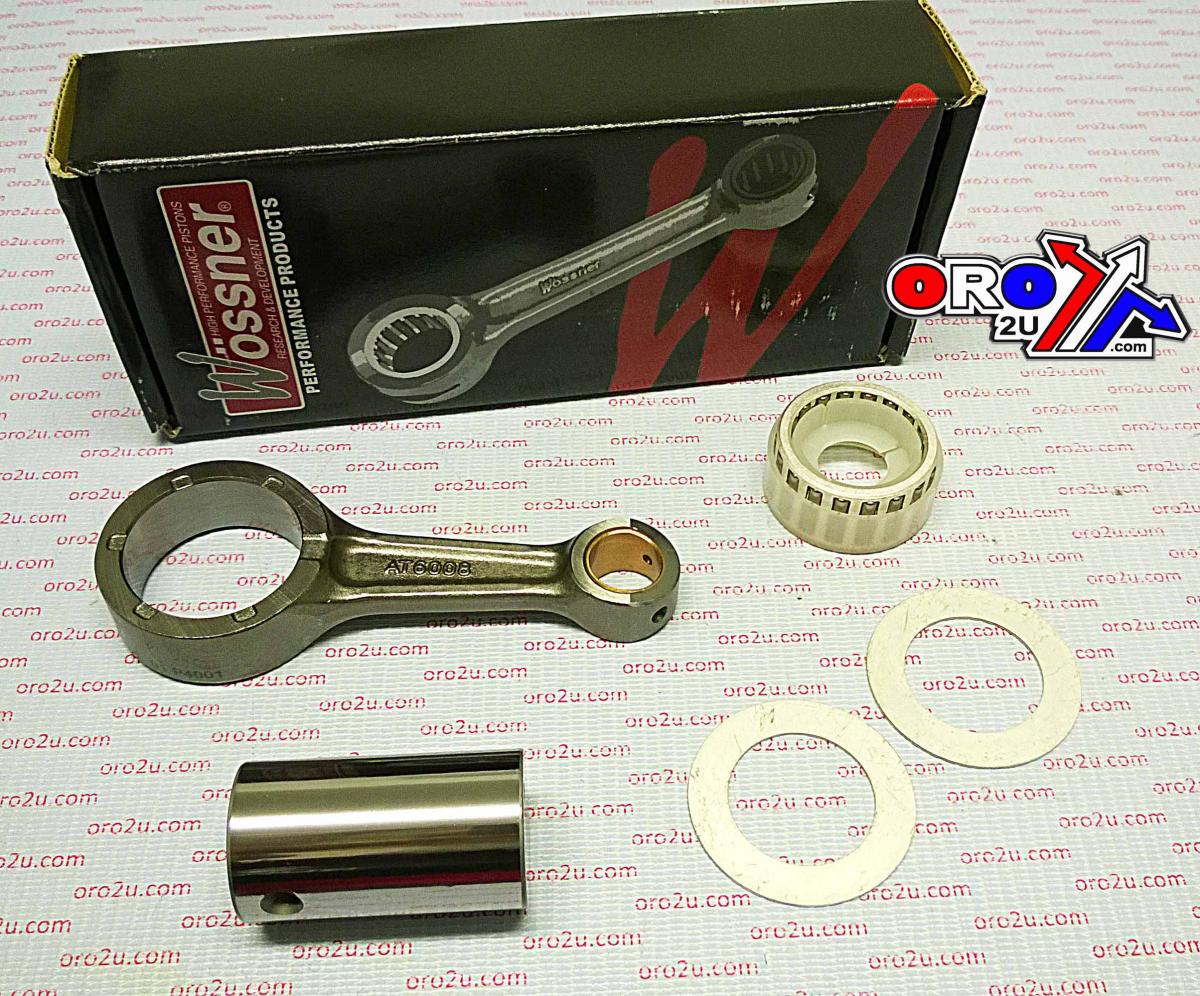

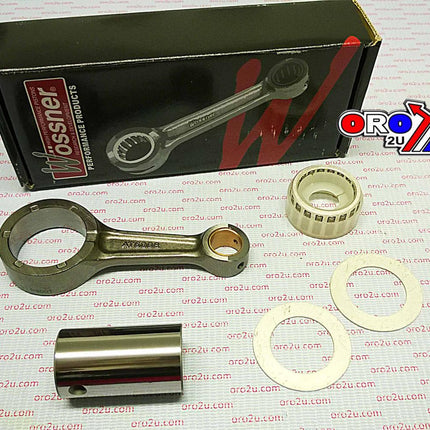

Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
Made from hot-rolled alloy steel and case-hardened to 58-62 Rc for enhanced durability.
Advanced design with side scalloping and vent slots minimizes high-RPM bearing race distortion.
Double-forged rods improve grain flow and maintain dimensional consistency.
Shot-peened and double-honed for superior strength under heavy loads.
Small ends feature double drilling for improved lubrication and cooling of the wrist pin bearing.
Engineered to perform under high-stress conditions.

Specifications:

Centre to Centre: 90.00 mm
Small End Bearing: 16x18x15 mm
Small End Bore Ø: 18 mm
Small End Width: 15.00 mm
Big End Bearing: 30x38x17.8 mm
Big End Bore Ø: 38 mm
Big End Width: 18.00 mm
Big End Pin Ø: 30 mm
Big End Pin Length: 53.00 mm
Washer Thickness: 1.00 mm

Connecting Rod Size (Dimensions in mm):

A = 90
B = 16
C = 30
D = 17.80
E = 15
F = 53

Cross-Reference OEM Part Numbers:
P4001, 13000-KRN-A60, 13000-KSC-A11, PROX 03-1334, HOTRODS 8616.

Vehicle Fitment:

Honda CRF250R: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017.
Honda CRF250X: 2004, 2005, 2006, 2007, 2008, 2009.

Part Number: 56-935.WO

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	CRF X 250	2004-2017
HONDA	CRF R 250	2004-2017
HONDA	CRF X 250	2004-2015
HONDA	CRF R 250	2004-2015
HONDA	CRF X 250	2004-2016
HONDA	CRF X 250	2004-2013
HONDA	CRF R 250	2004-2016

Connecting Rod 04-17 CRF250R, Wossner P4001 04-09 CRF250X

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Connecting rod rebuild kit designed for Honda CRF250R (2004-2017) and CRF250X (2004-2009) models. This high-quality replacement kit is manufactured in... Read more

2 in stock 1-2 business days

£183.49 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-935.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Connecting rod rebuild kit designed for Honda CRF250R (2004-2017) and CRF250X (2004-2009) models. This high-quality replacement kit is manufactured in Germany and engineered for strength, precision, and durability. It includes all necessary components for a complete rebuild and is built to perform under demanding conditions.

Features:

Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
Made from hot-rolled alloy steel and case-hardened to 58-62 Rc for enhanced durability.
Advanced design with side scalloping and vent slots minimizes high-RPM bearing race distortion.
Double-forged rods improve grain flow and maintain dimensional consistency.
Shot-peened and double-honed for superior strength under heavy loads.
Small ends feature double drilling for improved lubrication and cooling of the wrist pin bearing.
Engineered to perform under high-stress conditions.

Specifications:

Centre to Centre: 90.00 mm
Small End Bearing: 16x18x15 mm
Small End Bore Ø: 18 mm
Small End Width: 15.00 mm
Big End Bearing: 30x38x17.8 mm
Big End Bore Ø: 38 mm
Big End Width: 18.00 mm
Big End Pin Ø: 30 mm
Big End Pin Length: 53.00 mm
Washer Thickness: 1.00 mm

Connecting Rod Size (Dimensions in mm):

A = 90
B = 16
C = 30
D = 17.80
E = 15
F = 53

Cross-Reference OEM Part Numbers:
P4001, 13000-KRN-A60, 13000-KSC-A11, PROX 03-1334, HOTRODS 8616.

Vehicle Fitment:

Honda CRF250R: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017.
Honda CRF250X: 2004, 2005, 2006, 2007, 2008, 2009.

Part Number: 56-935.WO

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	CRF X 250	2004-2017
HONDA	CRF R 250	2004-2017
HONDA	CRF X 250	2004-2015
HONDA	CRF R 250	2004-2015
HONDA	CRF X 250	2004-2016
HONDA	CRF X 250	2004-2013
HONDA	CRF R 250	2004-2016
