Description

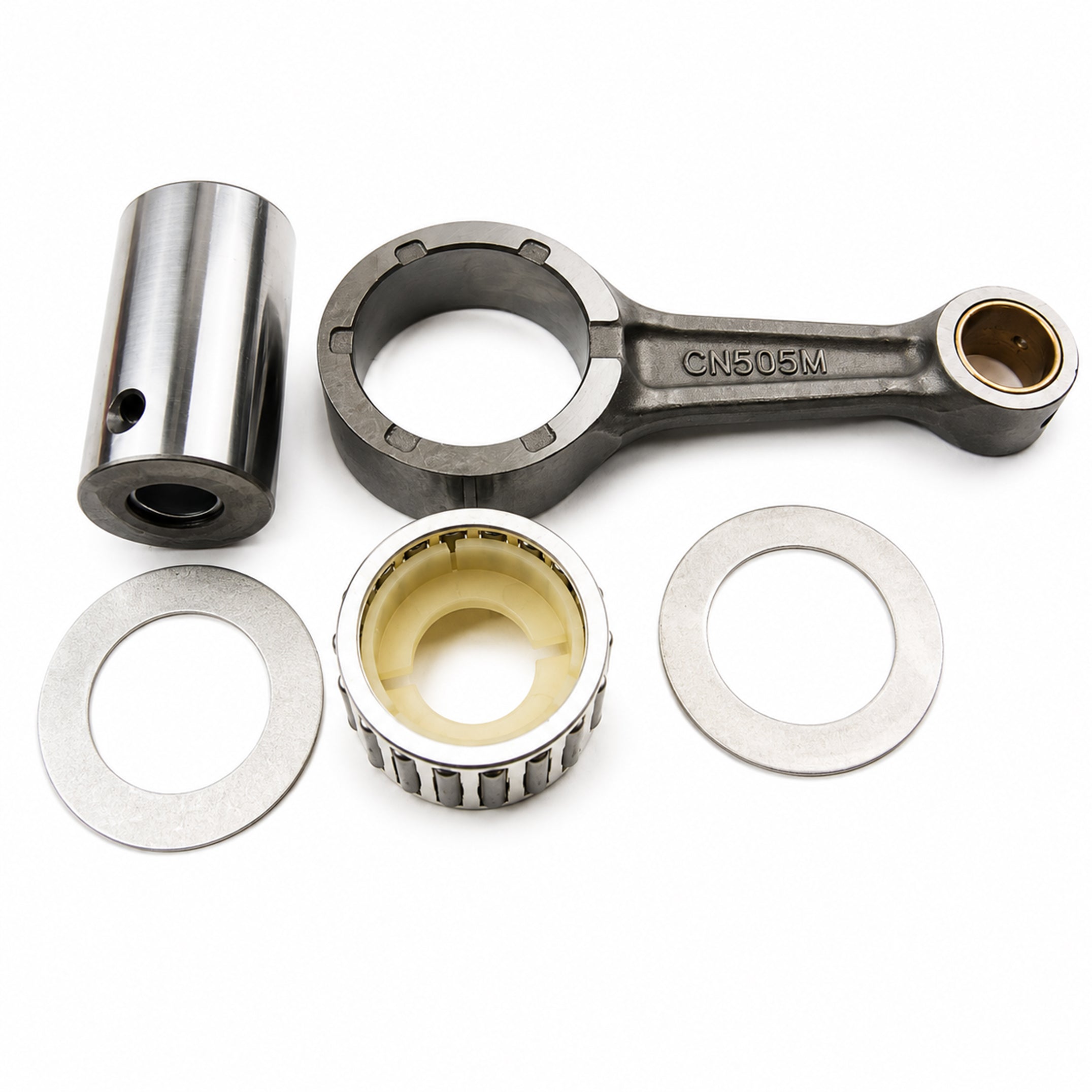

Connecting rod rebuild kit designed for Honda CRF250R (2004-2017) and CRF250X (2004-2016) models. This heavy-duty OE replacement part provides durability and high performance for demanding applications. Made from certified chrome alloy steel, it ensures superior strength and reliability. The kit includes all components necessary for a complete rebuild.
Features:
- Heavy-duty OE replacement connecting rod.
- Manufactured from certified chrome alloy steel for superior strength.
- Crankpins made from hot-rolled ASTM steel and case-hardened for durability.
- Caged needle roller bearing design enhances longevity at high RPM.
- Thrust washers crafted from silver-coated bronze phosphor.
- Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as required.
- Compatible with aftermarket and OE crankshafts.
- Material: SNCM220.
Specifications:
-
Centre to Centre: 90.00 mm
-
Small End Bearing: 16x18x15 mm
-
Small End Bore Ø: 18 mm
-
Small End Width: 15.00 mm
-
Big End Bearing: 30x38x17.8 mm
-
Big End Bore Ø: 38 mm
-
Big End Width: 18.00 mm
-
Big End Pin Ø: 30 mm
-
Big End Pin Length: 53.00 mm
-
Washer Thickness: 1.00 mm
Cross-Reference OEM Part Numbers:
WOSSNER P4001, MX-09138B, HONDA: 13000-KRN-670, 13000-KRN-850, 13000-KRN-A00, 13000-KRN-A10, 13000-KRN-A41, 13000-KSC-670, 13000-KSC-671, 13000-KSC-A10, HOTRODS 8616, PROX 03-1334, ATHENA P40321012.
Vehicle Fitment:
-
Honda CRF250R: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017.
-
Honda CRF250X: 2004, 2005, 2006, 2007, 2008, 2009, 2012, 2013, 2015, 2016, 2017.
Part Number: 56-935.NW
