Name: Connecting Rod 05-19 YZ125, Namura RX-40016 MX-09084 Yamaha MX
Brand: Namura Technologies
SKU: 56-159.NM
Price: 148.93 GBP
Availability: InStock

Connecting Rod 05-19 YZ125, Namura RX-40016 MX-09084 Yamaha MX

Namura Technologies
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

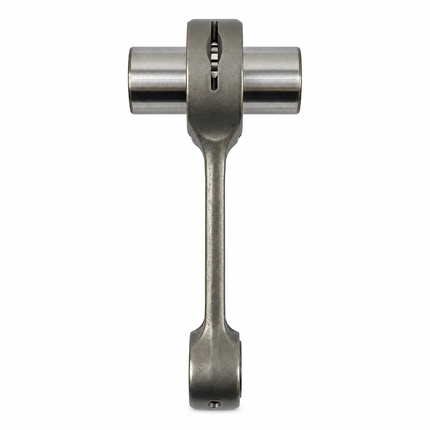

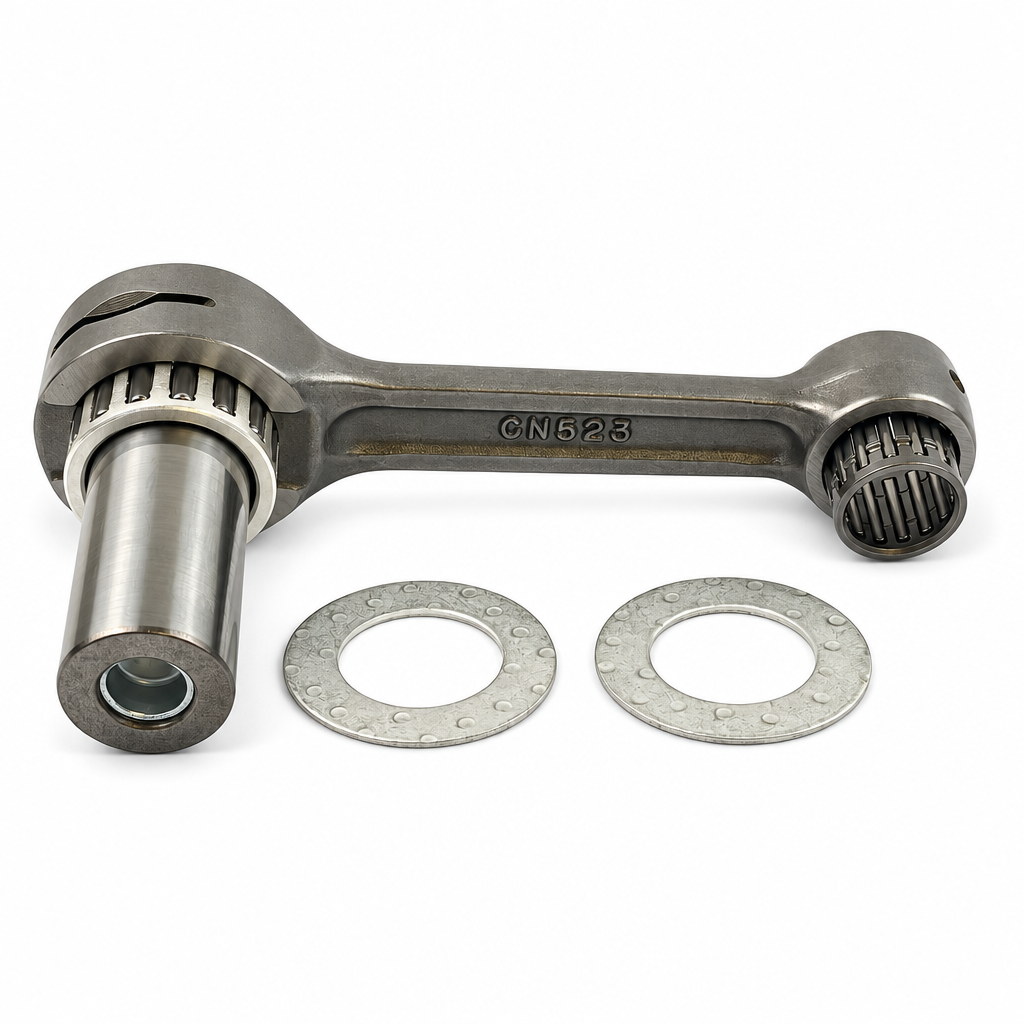

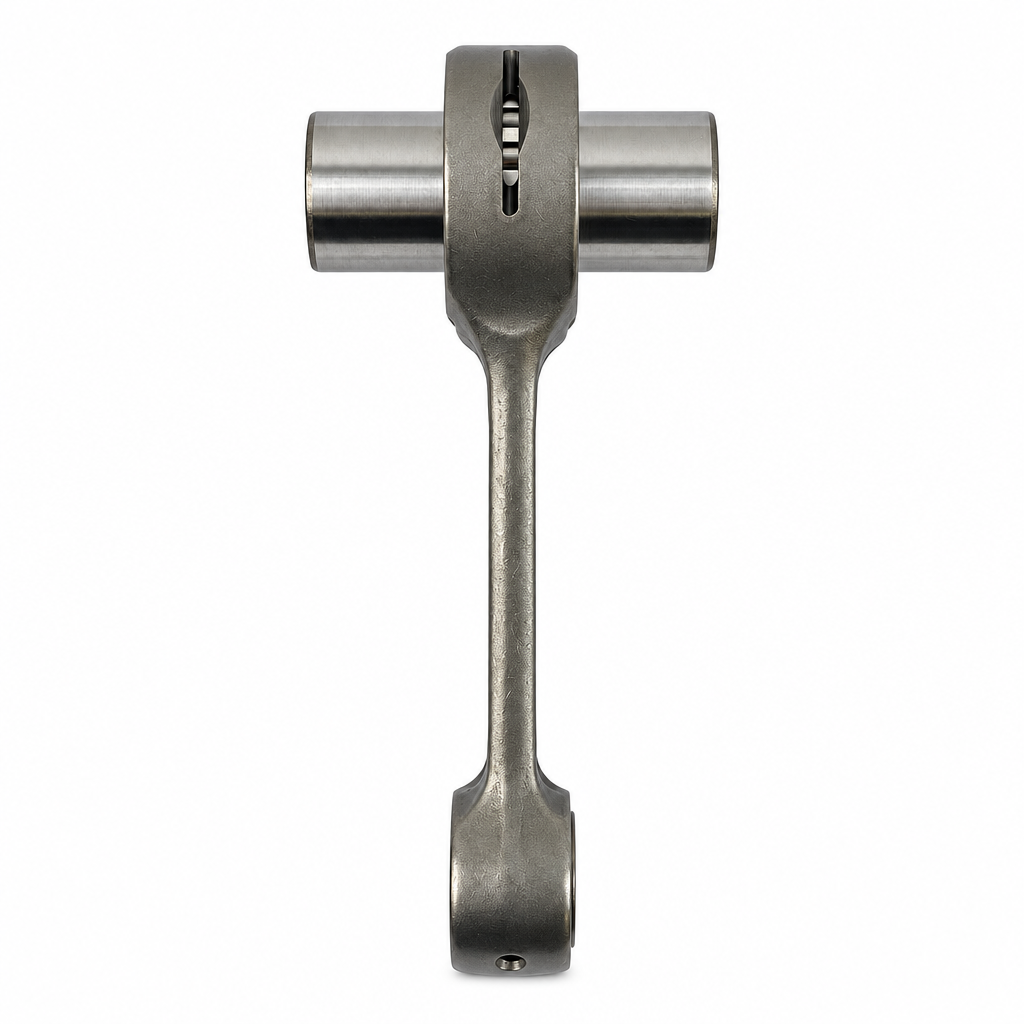

This connecting rod rebuild kit is a replacement assembly for Yamaha YZ125 models from 2005 to 2019. It is supplied as a complete conrod kit including the rod, crankpin, crankpin bearing, top end bearing and thrust washers where required, and is intended for use with both aftermarket and OE crankshafts.

Specifications

Material: SNCM220
Certified chrome alloy steel rod construction
Crankpin manufactured from hot-rolled ASTM steel
Crankpin case hardened
Thrust washers manufactured from bronze phosphor
Thrust washers silver coated
Centre to centre: 102 mm
Small end bearing: 15 x 19 x 17.2 mm
Small end bore Ø: 19 mm
Small end width: 17 mm
Big end bearing: 22 x 29 x 16.0 mm
Big end bore Ø: 29 mm
Big end width: 16 mm
Big end pin Ø: 22 mm
Big end pin length: 54.20 mm
Washer thickness: 22 x 34.5 x 1.50 mm

Cross-Reference OEM Part Numbers

RX-40016, MX-09084
HOT RODS 8629
WOSSNER P2018
RY-2205
1C3-11650-00-00, 1C3-11651-00-00, 3JD-11681-10-00, 90209-22326-00, 93310-52238-00, 93310-21510-00, 1C3-11651-00-00M

Vehicle Fitments

Yamaha YZ125 (2005-2019)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
GAS-GAS	EC 300	2000-2015
YAMAHA	YZ X 125	2020-2021
YAMAHA	YZ 125	2005-2018
YAMAHA	YZ 125	2005-2021
YAMAHA	YZ 125	2005-2020
YAMAHA	YZ X 125	2020
YAMAHA	YZ 125	2005-2019
YAMAHA	YZ 125	2005-2016
YAMAHA	YZ 125	2005-2015
