Description
SUZUKI
LT-R 450 2006-2009,

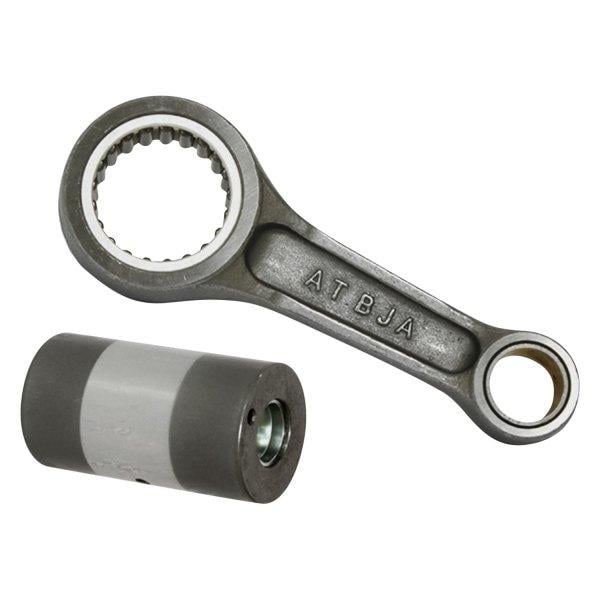

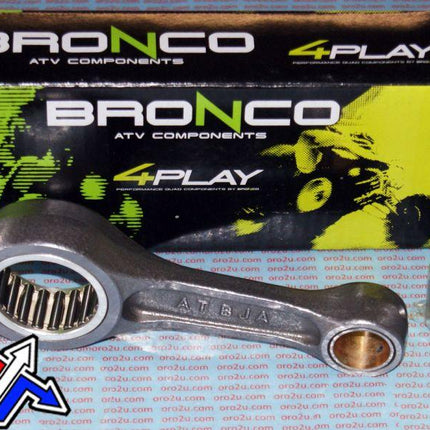

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09190
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 107 |
| Small End Bearing | None |
| Small End Bore Ø | 19 |
| Small End Width | 19 |
| Big End Bearing | 34x42x22 |
| Big End Bore Ø | 42 |
| Big End Width | 22 |
| Big End Pin Ø | 34 |
| Big End Pin Length | 61 |
| Washer Thickness | None |
Part No. 56-274.DR (radhouse.co.uk)
Cross reference numbers.
12160-45G10 , 12161-45G00,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| SUZUKI |
LT QUADRACER R 450 |
2006-2009 |
| SUZUKI |
LTR QUADRACER 450 |
2006-2009 |
