Description
KAWASAKI
2008 - 2013 KLX 450R,
2007 - 2008 KX450F / KXF450,

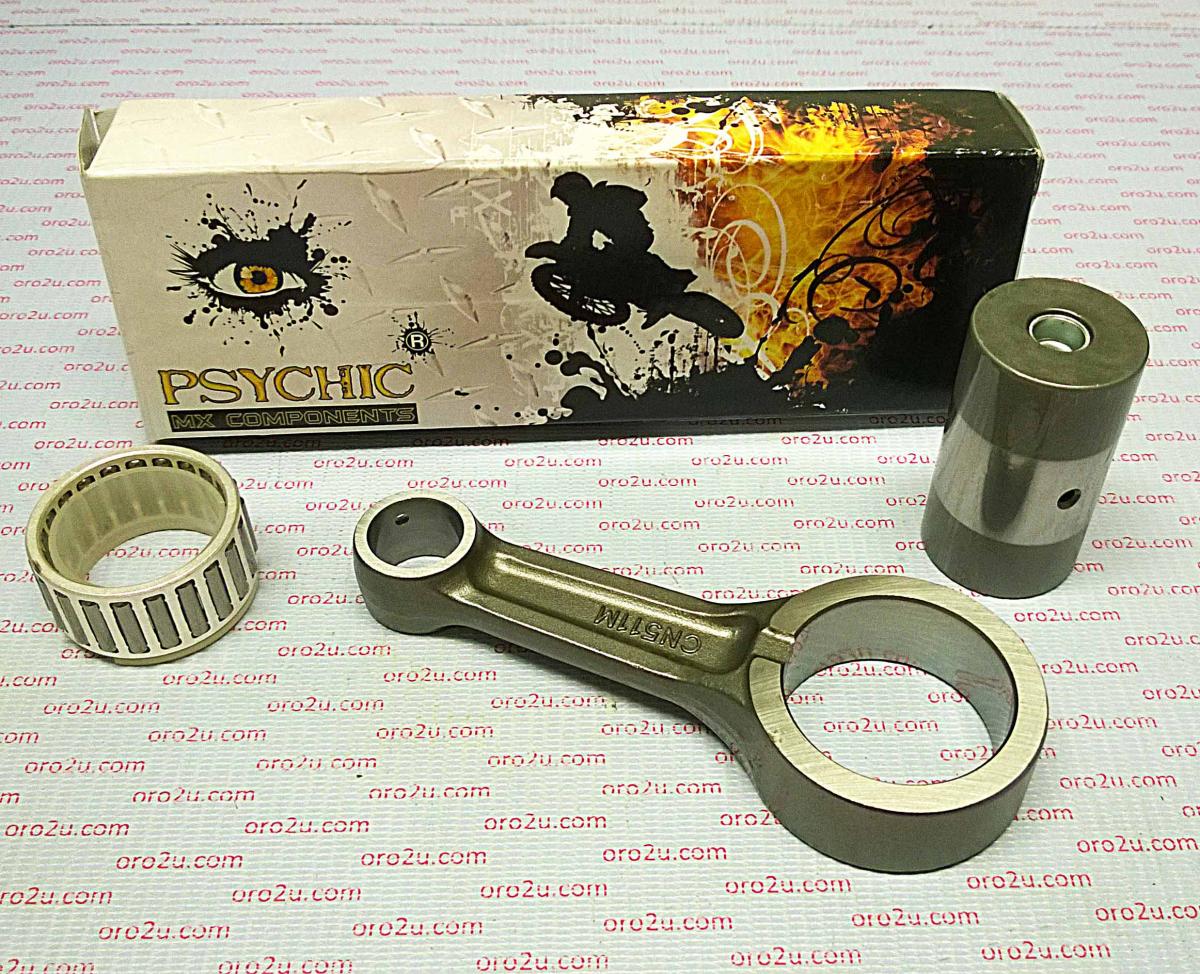

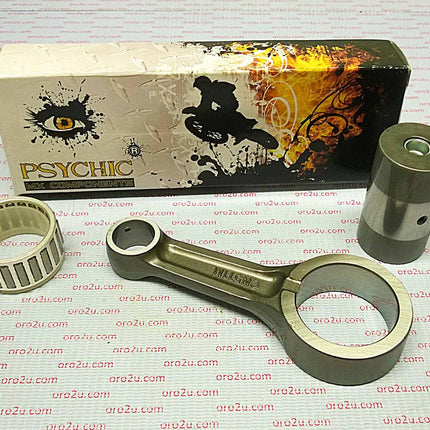

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09102
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 101.00 |
| Small End Bearing | None |
| Small End Bore Ø | 19 |
| Small End Width | 18.00 |
| Big End Bearing | 34x42x19.65
|
| Big End Bore Ø | 42 |
| Big End Width | 20
|
| Big End Pin Ø | 34 |
| Big End Pin Length | 60
|
| Washer Thickness | None
|
Part No. 56-937.PS (radhouse.co.uk)
Cross reference numbers ONLY.
WOSSNER P4010, MX-09102, 13032-0048 KAWASAKI: 13032-0060 KAWASAKI: 13032-0064, ATHENA P40321035, PROX 03.4406, PSYCHIC MX-09102, WOSSNER P4010, HOTRODS 8656, 13032-0048, 13032-0060, 13032-0064,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| KAWASAKI |
KX F 450 |
2006-2008 |
| KAWASAKI |
KLX R 450 |
2008-2021 |
| KAWASAKI |
KLX R 450 |
2008-2020 |
| KAWASAKI |
KLX R 450 |
2008-2013 |
| KAWASAKI |
KX F 450 |
2007-2008 |
