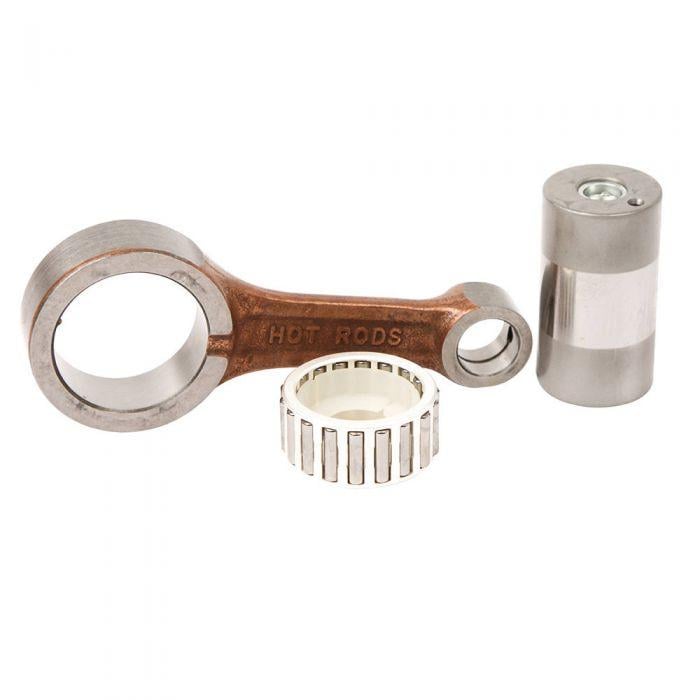

Name: Connecting Rod 07-15 RMZ250, Hotrods 8653 Suzuki MX
Brand: Hot Rods
SKU: 56-876.HR
Price: 206.86 GBP

Connecting Rod 07-15 RMZ250, Hotrods 8653 Suzuki MX

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Heavy-duty connecting rod kit designed as a high-quality replacement for the Suzuki RM-Z250. Built for durability and high performance, this kit is engineered to withstand the demands of high-rpm applications while ensuring long-lasting reliability.

Features:

Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength.
Advanced design includes side scalloping and vent slots to minimize high-rpm bearing race distortion.
Double-forged construction enhances grain flow and ensures dimensional accuracy.
Shot-peened and double-honed rods provide superior strength under heavy loads.
Double-drilled small ends deliver improved lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings enhance lubricity and durability.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Big End Bearing (mm): 30x38x17.7
Big End Bore (mm): 38.00
Big End Width (mm): 17.75
Center to Center (mm): 92.50
Pin Diameter (mm): 30.00
Pin Length (mm): 54.85
Small End Bearing (mm): Bushing
Small End Bore (mm): 16.00
Small End Width (mm): 15.00
Washer Thickness (mm): Not used

Cross-Reference OEM Part Numbers:
SUZUKI: 12161-10H10-0B0, 12161-49H00-0B0

Vehicle Compatibility:

2007-2015 Suzuki RM-Z250

Part Number: 56-876.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 250	2007-2016
SUZUKI	RM Z 250	2007-2015

Connecting Rod 07-15 RMZ250, Hotrods 8653 Suzuki MX

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Heavy-duty connecting rod kit designed as a high-quality replacement for the Suzuki RM-Z250. Built for durability and high performance, this... Read more

Out of stock

£206.86 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-876.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Heavy-duty connecting rod kit designed as a high-quality replacement for the Suzuki RM-Z250. Built for durability and high performance, this kit is engineered to withstand the demands of high-rpm applications while ensuring long-lasting reliability.

Features:

Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength.
Advanced design includes side scalloping and vent slots to minimize high-rpm bearing race distortion.
Double-forged construction enhances grain flow and ensures dimensional accuracy.
Shot-peened and double-honed rods provide superior strength under heavy loads.
Double-drilled small ends deliver improved lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings enhance lubricity and durability.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Big End Bearing (mm): 30x38x17.7
Big End Bore (mm): 38.00
Big End Width (mm): 17.75
Center to Center (mm): 92.50
Pin Diameter (mm): 30.00
Pin Length (mm): 54.85
Small End Bearing (mm): Bushing
Small End Bore (mm): 16.00
Small End Width (mm): 15.00
Washer Thickness (mm): Not used

Cross-Reference OEM Part Numbers:
SUZUKI: 12161-10H10-0B0, 12161-49H00-0B0

Vehicle Compatibility:

2007-2015 Suzuki RM-Z250

Part Number: 56-876.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 250	2007-2016
SUZUKI	RM Z 250	2007-2015
