Description
Honda
CRF150R / RB 2007 - 2021,

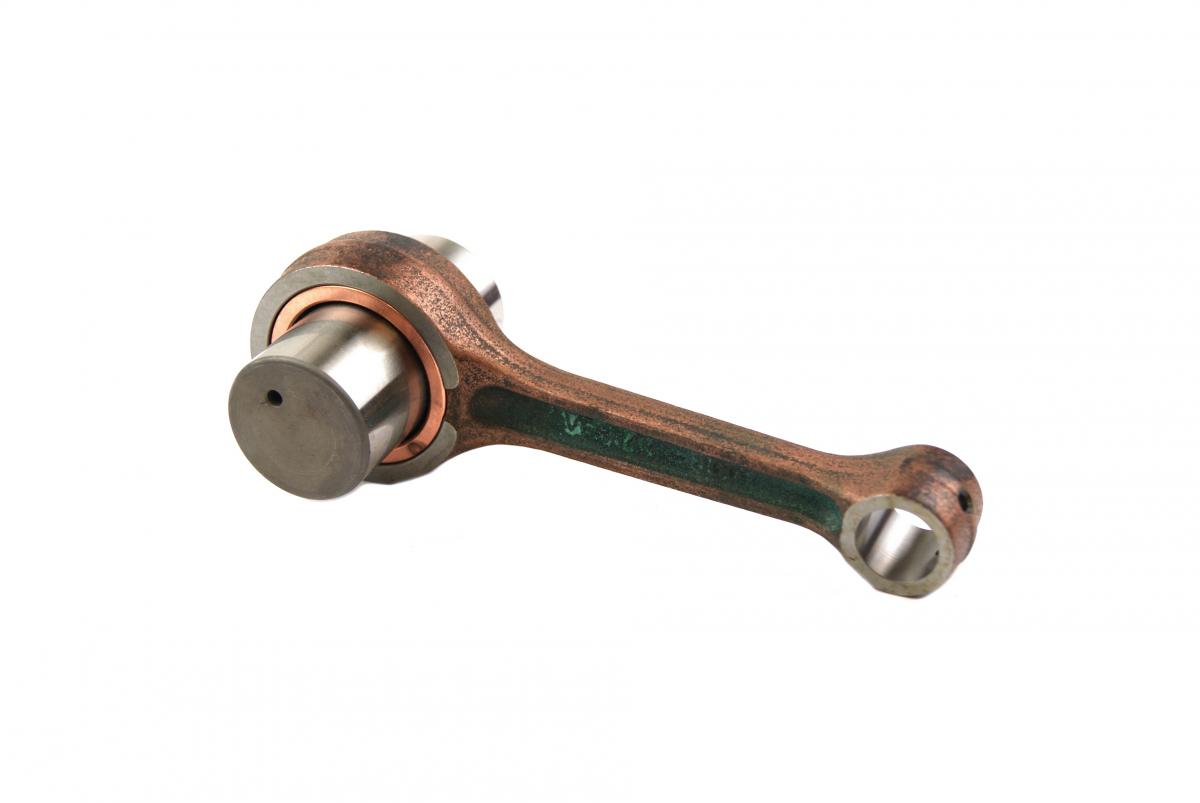

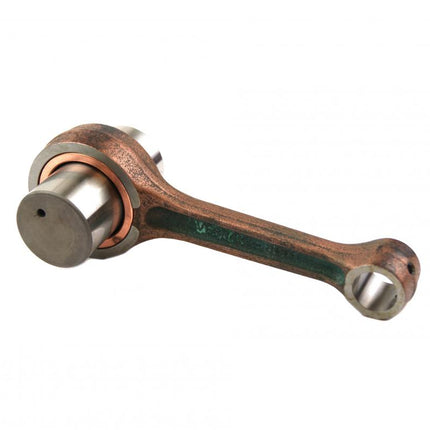

CONNECTING CONROD ROD REBUILD KIT HOTRODS 8646
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 75.40 |
| Small End Bearing | None |
| Small End Bore Ø | 14 |
| Small End Width | 14 |
| Big End Bearing | 25x32x15.7
|
| Big End Bore Ø | 32 |
| Big End Width | 15.75
|
| Big End Pin Ø | 25 |
| Big End Pin Length | 50
|
| Washer Thickness | 0.94
|
Part No. 56-934.HR / 56-934_HR (radhouse.co.uk)
Cross reference numbers.
13000-KSE-670, HOT RODS 8646, WOSSNER P4024, WISECO WPR204, MX-09046, 03.1227, 13000-KSE-670 13000-KSE-671
2007 CRF150R A - CRANKSHAFT / PISTON
2007 CRF150RB A - CRANKSHAFT / PISTON
2008 CRF150R A - CRANKSHAFT / PISTON
2008 CRF150RB A - CRANKSHAFT / PISTON
2009 CRF150R 2A - CRANKSHAFT / PISTON
2009 CRF150R A - CRANKSHAFT / PISTON
2009 CRF150RB 2A - CRANKSHAFT / PISTON
2009 CRF150RB A - CRANKSHAFT / PISTON
2012 CRF150R A - CRANKSHAFT / PISTON
2012 CRF150RB A - CRANKSHAFT / PISTON
2013 CRF150R AC - CRANKSHAFT / PISTON
2013 CRF150RB AC - CRANKSHAFT / PISTON
2014 CRF150R AC - CRANKSHAFT / PISTON
2014 CRF150RB AC - CRANKSHAFT / PISTON
2015 CRF150R AC - CRANKSHAFT / PISTON
2015 CRF150RB AC - CRANKSHAFT / PISTON
2007 CRF150R A - CRANKSHAFT / PISTON
2007 CRF150RB A - CRANKSHAFT / PISTON
2008 CRF150R A - CRANKSHAFT / PISTON
2008 CRF150RB A - CRANKSHAFT / PISTON
2009 CRF150R 2A - CRANKSHAFT / PISTON
2009 CRF150R A - CRANKSHAFT / PISTON
2009 CRF150RB 2A - CRANKSHAFT / PISTON
2009 CRF150RB A - CRANKSHAFT / PISTON
2012 CRF150R A - CRANKSHAFT / PISTON
2012 CRF150RB A - CRANKSHAFT / PISTON
2013 CRF150R AC - CRANKSHAFT / PISTON
2013 CRF150RB AC - CRANKSHAFT / PISTON
2014 CRF150R AC - CRANKSHAFT / PISTON
2014 CRF150RB AC - CRANKSHAFT / PISTON
2015 CRF150R AC - CRANKSHAFT / PISTON
2015 CRF150RB AC - CRANKSHAFT / PISTON
2016 CRF150R AC - CRANKSHAFT / PISTON
2016 CRF150RB AC - CRANKSHAFT / PISTON
2017 CRF150R AC - CRANKSHAFT / PISTON
2017 CRF150RB AC - CRANKSHAFT / PISTON
2018 CRF150R AC - CRANKSHAFT / PISTON
2018 CRF150RB AC - CRANKSHAFT / PISTON
2019 CRF150R AC - CRANKSHAFT / PISTON
2019 CRF150RB AC - CRANKSHAFT / PISTON
2020 CRF150R AC - CRANKSHAFT / PISTON
2020 CRF150RB AC - CRANKSHAFT / PISTON
2021 CRF150R AC - CRANKSHAFT / PISTON
2021 CRF150RB AC - CRANKSHAFT / PISTON
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HONDA |
CRF R 150 |
2007-2020 |
| HONDA |
CRF R 150 |
2007-2021 |
| HONDA |
CRF R 150 |
2007-2016 |
| HONDA |
CRF R 150 |
2007-2015 |
| HONDA |
CRF R 150 |
2004-2018 |
| HONDA |
CRF R 150 |
2004-2020 |
