Name: Connecting Rod 08-11 WR250R/X, Hot Rod 8696 Yamaha
Brand: Hot Rods
SKU: 56-858.HR

Connecting Rod 08-11 WR250R/X, Hot Rod 8696 Yamaha

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

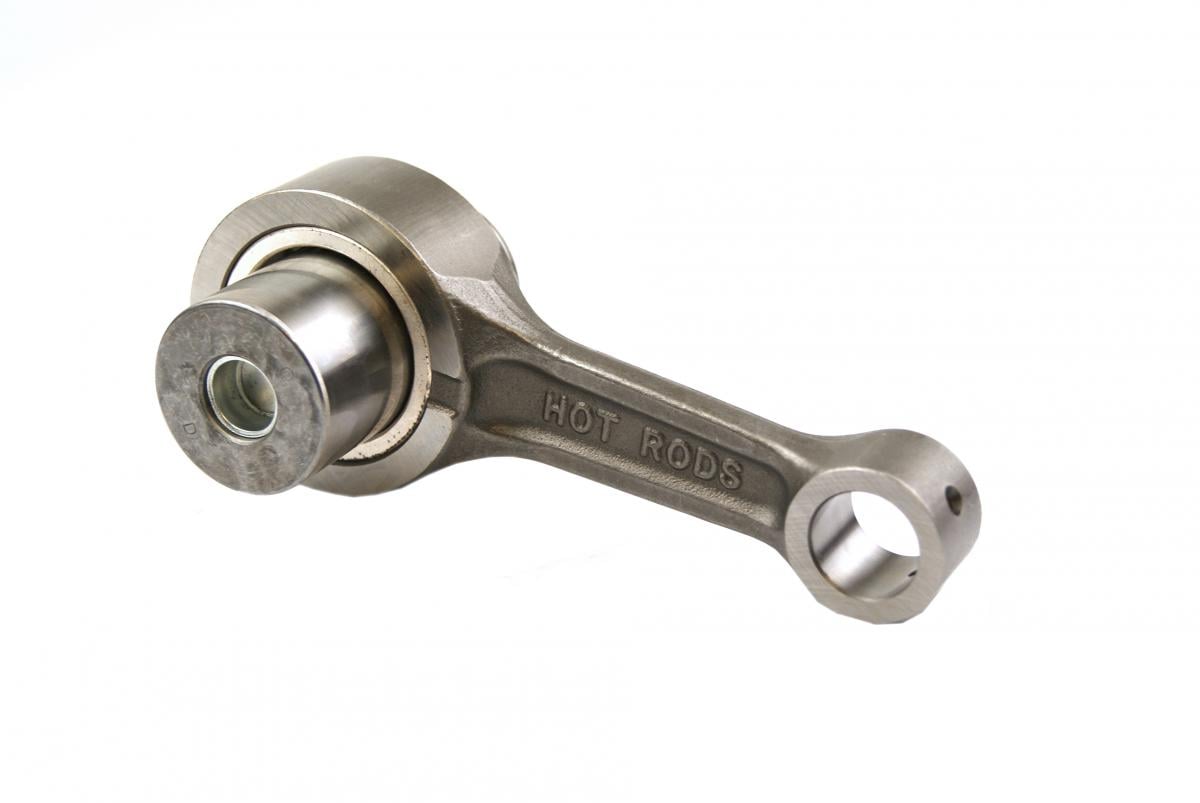

High-quality Hot Rods Heavy-Duty Connecting Rod Kit designed for Yamaha WR250R (2008–2012), WR250X (2008–2011), and WR250F (2003–2013) models. This kit provides superior reliability and performance for demanding applications.

Features:

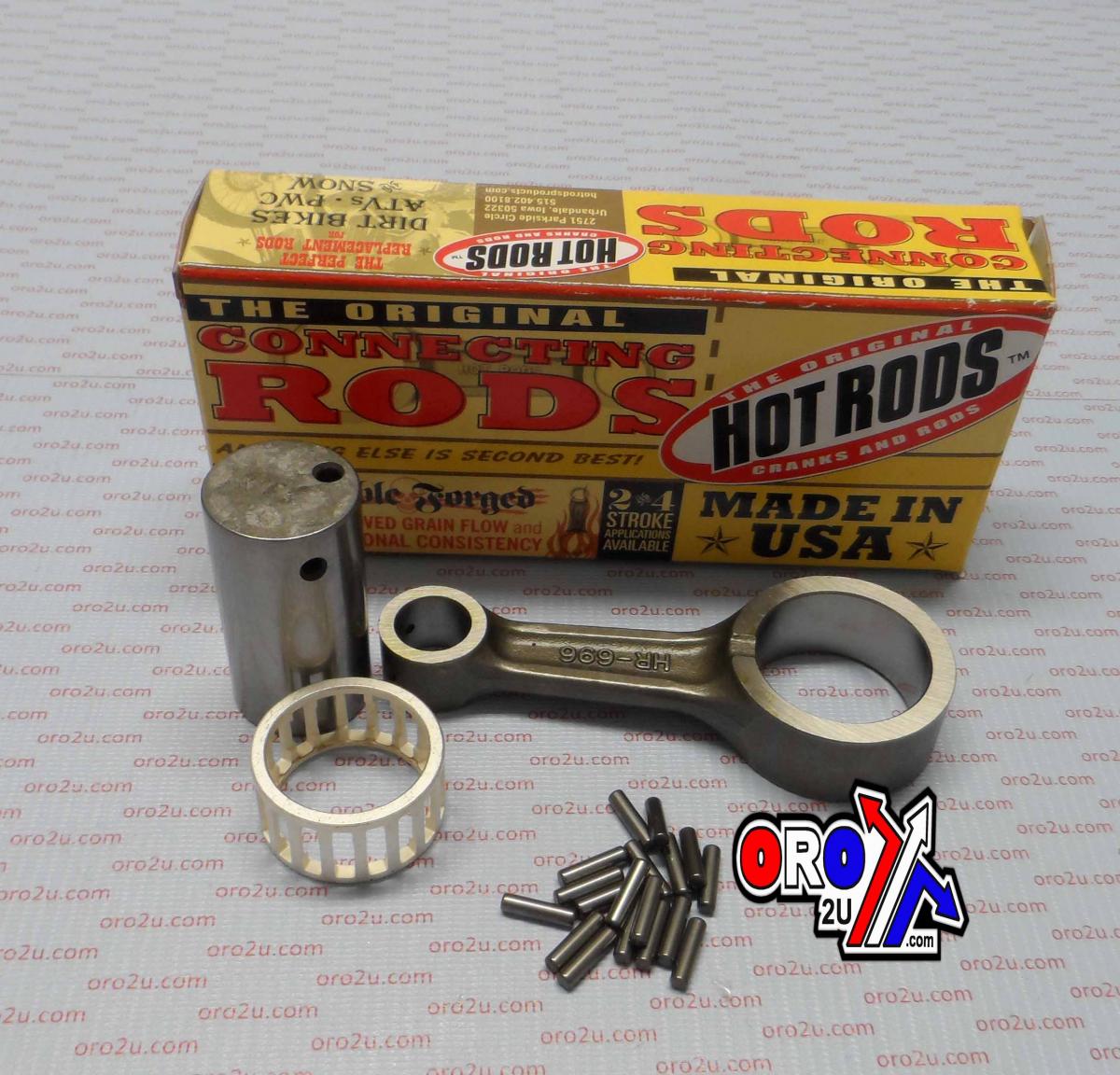

Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for exceptional strength and durability.
Advanced side scalloping and vent slots reduce high RPM bearing race distortion.
Double-forged rods enhance grain flow and dimensional consistency.
Shot-peened and double-honed for increased strength under heavy loads.
Small ends feature double drilling for enhanced lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings offer added lubricity and extended lifespan.

Technical Specifications:

Big End Bearing (mm): 32 x 40 x 20.8
Big End Bore (mm): 40.00
Big End Width (mm): 21.00
Center to Center (mm): 94.00
Pin Diameter (mm): 32.00
Pin Length (mm): 60.80
Small End Bearing (mm): No Bushing
Small End Bore (mm): 17.00
Small End Width (mm): 17.00
Washer Thickness (mm): Not Used

Cross-Reference OEM Part Numbers:

Yamaha 3D7-11651-00-00

Vehicle Fitments:

Yamaha WR250R (2008–2012)
Yamaha WR250X (2008–2011)
Yamaha WR250F (2003–2013)

Part Number: 56-858.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	WR R 250	2008-2016
YAMAHA	WR X 250	2008-2011
YAMAHA	WR R 250	2008-2011

Connecting Rod 08-11 WR250R/X, Hot Rod 8696 Yamaha

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

High-quality Hot Rods Heavy-Duty Connecting Rod Kit designed for Yamaha WR250R (2008–2012), WR250X (2008–2011), and WR250F (2003–2013) models. This kit... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-858.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

High-quality Hot Rods Heavy-Duty Connecting Rod Kit designed for Yamaha WR250R (2008–2012), WR250X (2008–2011), and WR250F (2003–2013) models. This kit provides superior reliability and performance for demanding applications.

Features:

Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for exceptional strength and durability.
Advanced side scalloping and vent slots reduce high RPM bearing race distortion.
Double-forged rods enhance grain flow and dimensional consistency.
Shot-peened and double-honed for increased strength under heavy loads.
Small ends feature double drilling for enhanced lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings offer added lubricity and extended lifespan.

Technical Specifications:

Big End Bearing (mm): 32 x 40 x 20.8
Big End Bore (mm): 40.00
Big End Width (mm): 21.00
Center to Center (mm): 94.00
Pin Diameter (mm): 32.00
Pin Length (mm): 60.80
Small End Bearing (mm): No Bushing
Small End Bore (mm): 17.00
Small End Width (mm): 17.00
Washer Thickness (mm): Not Used

Cross-Reference OEM Part Numbers:

Yamaha 3D7-11651-00-00

Vehicle Fitments:

Yamaha WR250R (2008–2012)
Yamaha WR250X (2008–2011)
Yamaha WR250F (2003–2013)

Part Number: 56-858.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	WR R 250	2008-2016
YAMAHA	WR X 250	2008-2011
YAMAHA	WR R 250	2008-2011
