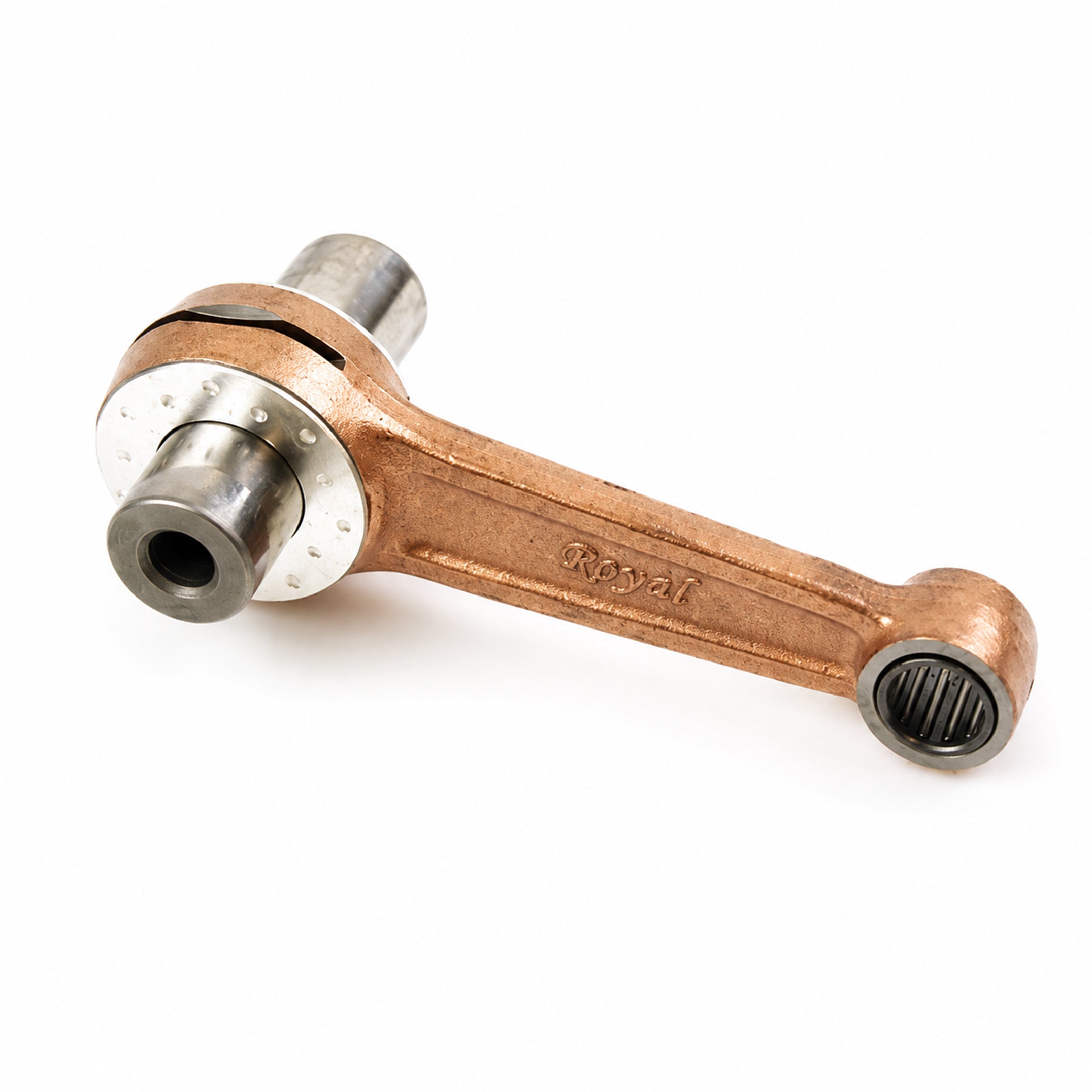

Connecting Rod 09-19 KTM 65SX, Namura RX-70008 / MX-09039-1 46230015000

Description

Connecting rod rebuild kit for KTM 65 SX (2009-2019) and 65 XC (2009), designed as a heavy-duty OE replacement. Manufactured with certified chrome alloy steel for superior strength and longevity, it includes all necessary components for a complete rod assembly. The kit is compatible with aftermarket and OE crankshafts.

Features

  • Heavy-duty connecting rod designed as an OE replacement.
  • Manufactured using certified chrome alloy steel for superior durability.
  • Crankpins made from hot-rolled ASTM steel and case-hardened for strength.
  • Includes high-rpm longevity caged needle roller bearing designs.
  • Bronze phosphor thrust washers with a silver coating.
  • Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed.
  • Compatible with aftermarket and OE crankshafts.

Specifications

  • Material: SNCM220
  • Centre-to-Centre: 88 mm
  • Small End Bearing: 12x15x16.30 mm
  • Small End Bore Ø: 19 mm
  • Small End Width: 13 mm
  • Big End Bearing: 18x24x14.8 mm
  • Big End Bore Ø: 24 mm
  • Big End Width: 15 mm
  • Big End Pin Ø: 18 mm
  • Big End Pin Length: 54.3 mm
  • Washer Thickness: 1.00 mm

Cross Reference OEM Part Numbers

  • 46230015000
  • Athena P40321039
  • Hotrods 8132
  • ProX 03-6029
  • Wossner P2055

Vehicle Fitments

  • KTM 65 SX: 2009–2019
  • KTM 65 XC: 2009

Part Number: 56-923.NM

Connecting Rod 09-19 KTM 65SX, Namura RX-70008 / MX-09039-1 46230015000

Product form

Connecting rod rebuild kit for KTM 65 SX (2009-2019) and 65 XC (2009), designed as a heavy-duty OE replacement. Manufactured... Read more

4 in stock 1-2 business days

£85.37 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-923.NM
    Barcode: 758891121754

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Connecting rod rebuild kit for KTM 65 SX (2009-2019) and 65 XC (2009), designed as a heavy-duty OE replacement. Manufactured with certified chrome alloy steel for superior strength and longevity, it includes all necessary components for a complete rod assembly. The kit is compatible with aftermarket and OE crankshafts.

    Features

    • Heavy-duty connecting rod designed as an OE replacement.
    • Manufactured using certified chrome alloy steel for superior durability.
    • Crankpins made from hot-rolled ASTM steel and case-hardened for strength.
    • Includes high-rpm longevity caged needle roller bearing designs.
    • Bronze phosphor thrust washers with a silver coating.
    • Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed.
    • Compatible with aftermarket and OE crankshafts.

    Specifications

    • Material: SNCM220
    • Centre-to-Centre: 88 mm
    • Small End Bearing: 12x15x16.30 mm
    • Small End Bore Ø: 19 mm
    • Small End Width: 13 mm
    • Big End Bearing: 18x24x14.8 mm
    • Big End Bore Ø: 24 mm
    • Big End Width: 15 mm
    • Big End Pin Ø: 18 mm
    • Big End Pin Length: 54.3 mm
    • Washer Thickness: 1.00 mm

    Cross Reference OEM Part Numbers

    • 46230015000
    • Athena P40321039
    • Hotrods 8132
    • ProX 03-6029
    • Wossner P2055

    Vehicle Fitments

    • KTM 65 SX: 2009–2019
    • KTM 65 XC: 2009

    Part Number: 56-923.NM
