Description

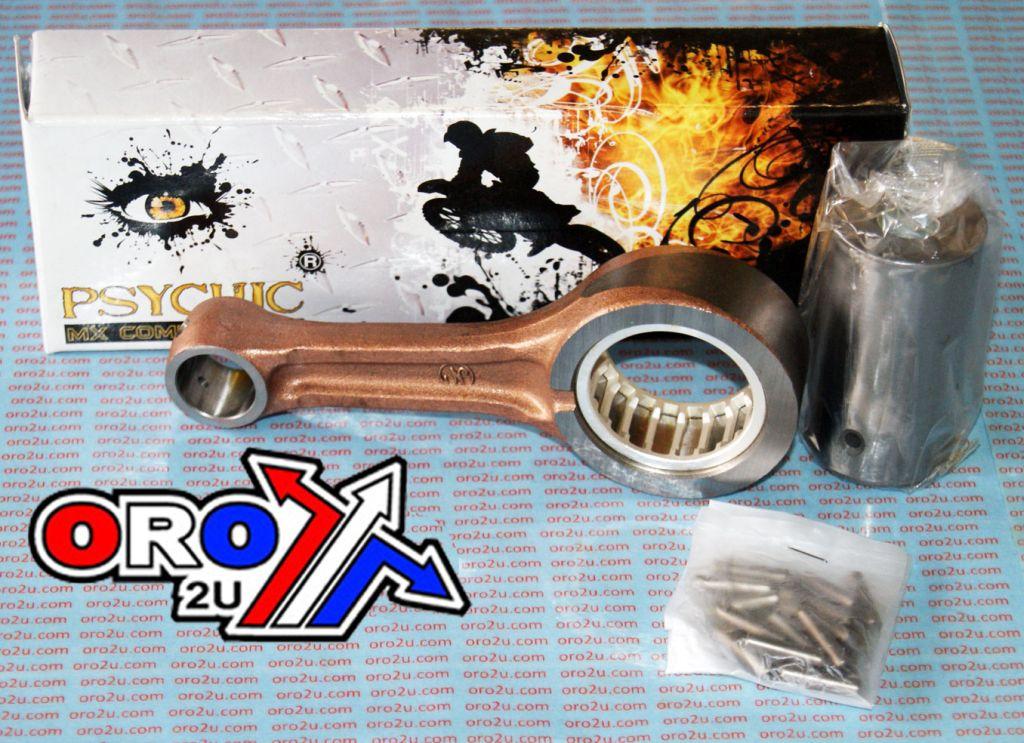

CONNECTING CONROD ROD REBUILD KIT PSYCHIC MX-09090
YAMAHA
YZF450 / YZ450F 2010-2018,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 103 |
| Small End Bearing | None |
| Small End Bore Ø | 18 |
| Small End Width | 18 |
| Big End Bearing | 34x42x20.8 |
| Big End Bore Ø | 42 |
| Big End Width | 21 |
| Big End Pin Ø | 34 |
| Big End Pin Length | 61 |
| Washer Thickness | None |
SIZE PLEASE SEE DRAWING SIZE mm. A = 103, B = 18, C = 34, D = 18, E = 21, F = 61
Part No. 56-857.DR (radhouse.co.uk)
Cross reference numbers ONLY.
Bearing MX-09090B,
Pin, Crank 5TG-11681-01-00,
Bearing 93310-63458-00,
Rod, Connecting 33D-11651-03-00,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| YAMAHA |
YZ FX 450 |
2016-2018 |
| YAMAHA |
WR F 450 |
2016-2018 |
| YAMAHA |
YZ FX 450 |
2016-2020 |
| YAMAHA |
WR F 450 |
2016-2019 |
| YAMAHA |
YZ F 450 |
2010-2020 |
| YAMAHA |
WRF 450 |
2016-2018 |
| YAMAHA |
WR F 450 |
2016-2020 |
| YAMAHA |
YZF X 450 |
2016-2017 |
| YAMAHA |
YZ F 450 |
2010-2019 |
| YAMAHA |
YZ F 450 |
2010-2016 |
| YAMAHA |
YZ F 450 |
2010-2018 |
| YAMAHA |
YZ F 450 |
2010-2015 |
| YAMAHA |
YZF 450 |
2010-2018 |
