Description
KTM
85SX 105SX 2013-2018,
Husqvarna
TC85 2014-2018,

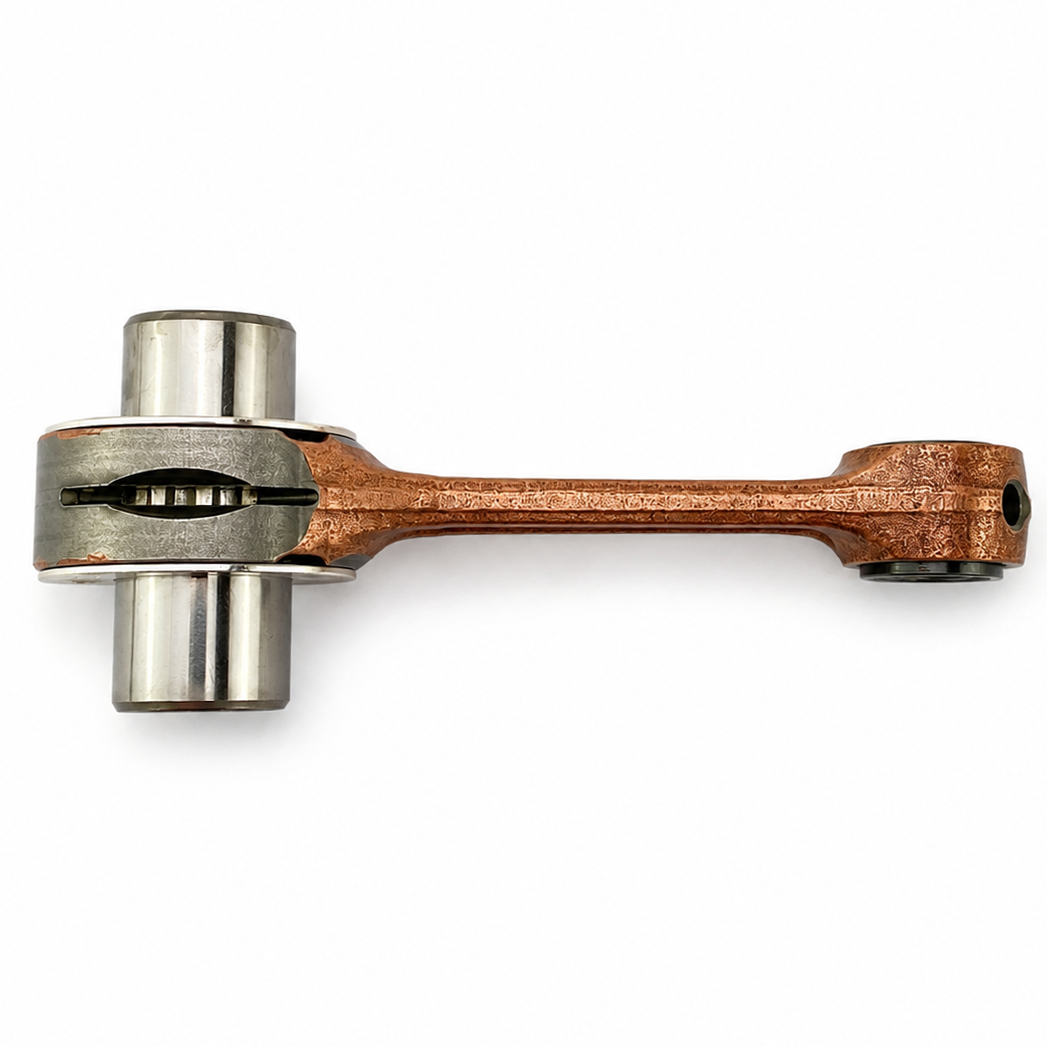

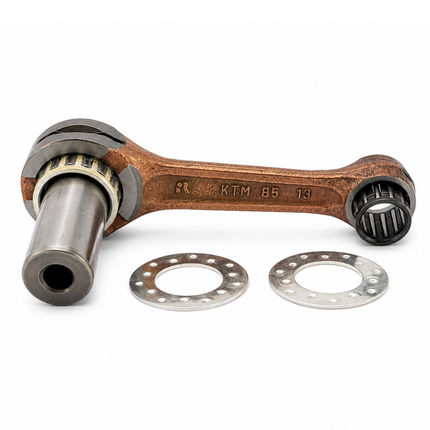

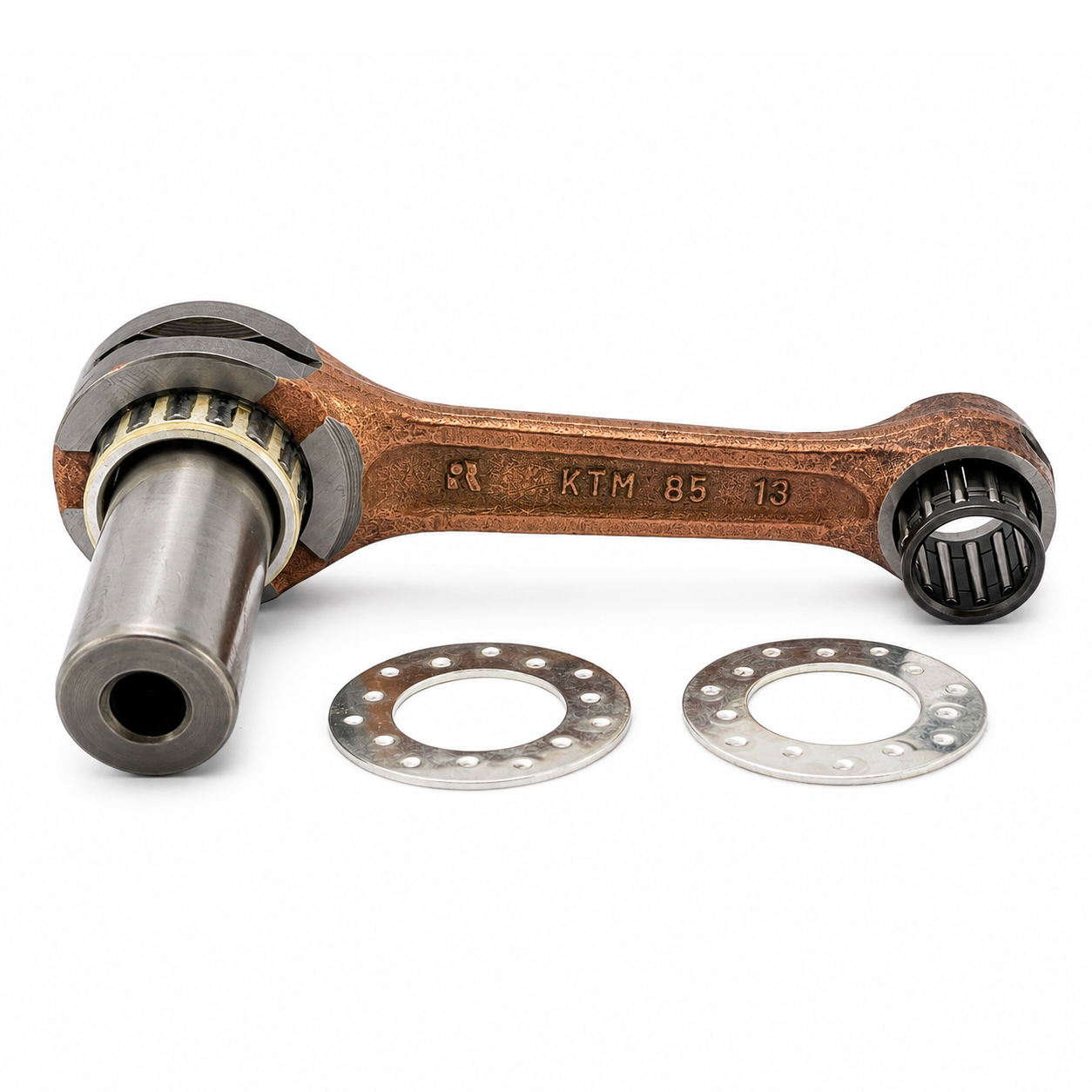

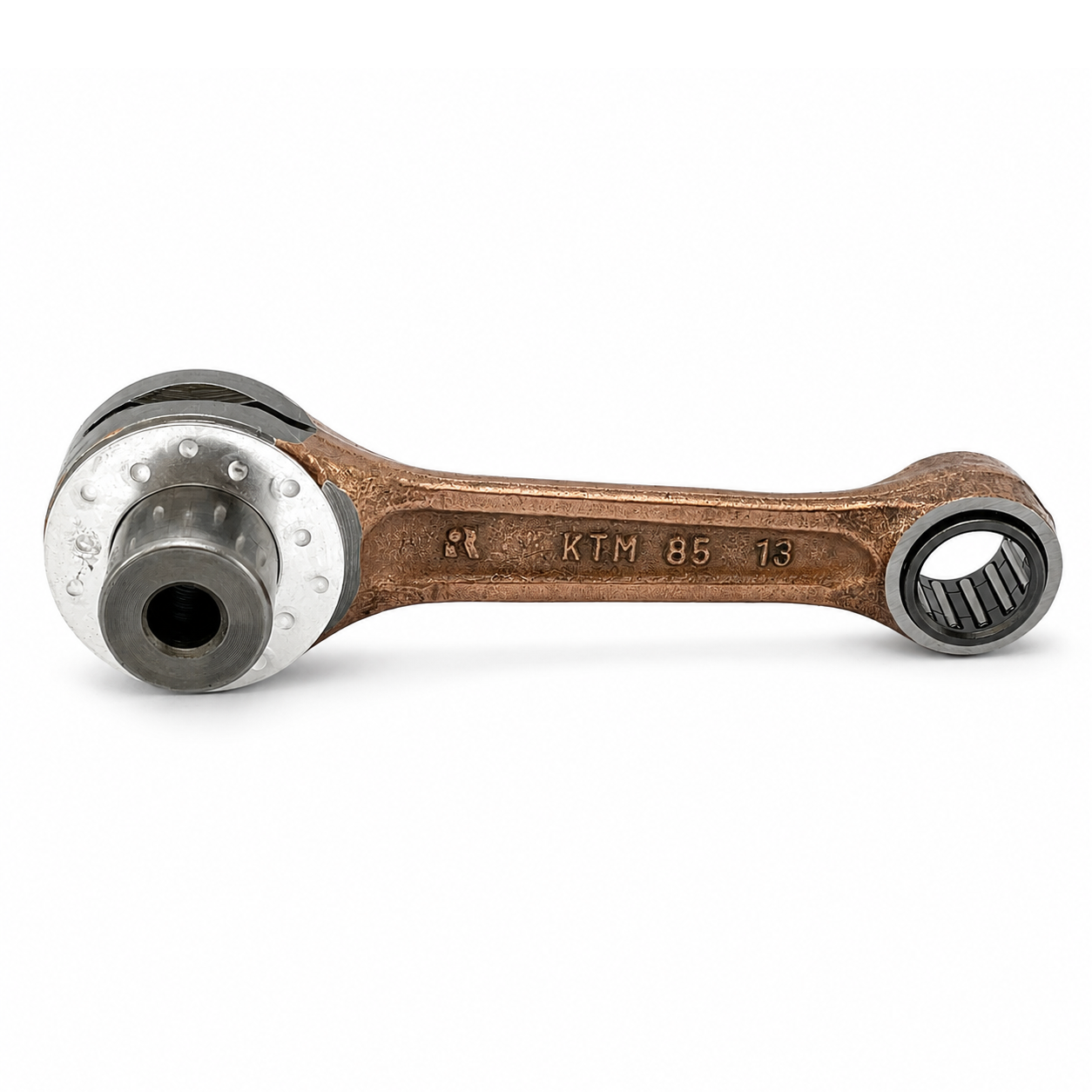

CONNECTING ROD REBUILD KIT, PSYCHIC MX-09105
- Heavy-duty OE replacement connecting rods
- Certified Chrome steel provides superior strength
- Uniquely designed big end uses strategically located side scalloping vent slots to minimize high rpm bearing race distortion
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened.
- Psychic uses the latest in caged needle roller bearing designs for high rpm longevity
- Thrust washers are manufactured from bronze phosphor and are silver coated
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers.
| SIZE | MM |
| Centre 2 Centre | 96 |
| Small End Bearing | 14x18x16.5 |
| Small End Bore Ø | 18 |
| Small End Width | 14 |
| Big End Bearing | 20x26x14.8
|
| Big End Bore Ø | 26 |
| Big End Width | 15
|
| Big End Pin Ø | 20 |
| Big End Pin Length | 46
|
| Washer Thickness | 20x36x1.00
|
Part No. 56-963.DR (radhouse.co.uk)
Cross reference numbers ONLY.
RO-8212 , 47030015200, ATHENA P40321041, PSYCHIC MX-09105, HOTRODS 8157, PROX 03.6113, WOSSNER P2065,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HUSQVARNA |
TC 85 |
2014-2017 |
| GAS-GAS |
MC 85 |
2021 |
| HUSQVARNA |
TC 85 |
2014-2020 |
| KTM |
SX 85 |
2013-2020 |
| KTM |
SX 85 |
2013-2021 |
| HUSQVARNA |
TC 85 |
2014-2019 |
| HUSQVARNA |
TC 85 |
2014-2021 |
| HUSQVARNA |
TC 85 |
2014-2015 |
| HUSQVARNA |
TC 85 |
2014-2016 |
| KTM |
SX 85 |
2013-2016 |
| KTM |
SX 85 |
2013-2015 |
| KTM |
SX 85 |
2013-2019 |
