Name: Connecting Rod 13-22 KTM85, Hotrod 8157 8725 KTM SX105, 56-963.HR
Brand: Hot Rods
SKU: 56-963.HR
Price: 89.72 GBP
Availability: InStock

Connecting Rod 13-22 KTM85, Hotrod 8157 8725 KTM SX105, 56-963.HR

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Connecting rod kit for KTM 85 SX (2013–2021), KTM 105 SX (2013–2021), and Husqvarna TC 85 (2016–2021) models. This high-performance kit is designed to meet OE specifications and deliver reliable durability under demanding conditions.

Features:

Heavy-duty OE replacement connecting rods.
Made from certified 8620 AISI steel for superior strength and durability.
Big end design incorporates strategically located side scalloping vent slots to minimize high RPM bearing race distortion.
Crankpins are manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc.
Caged needle roller bearing designs enhance longevity at high RPMs.
Bronze phosphor thrust washers with silver coating for added lubricity.

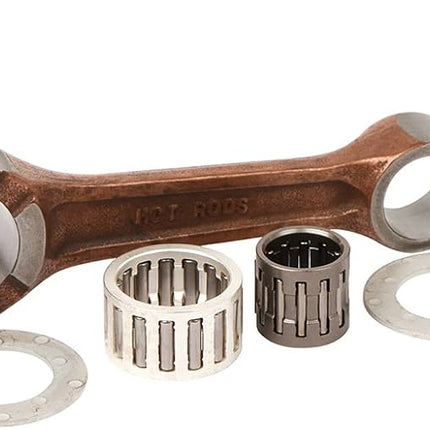

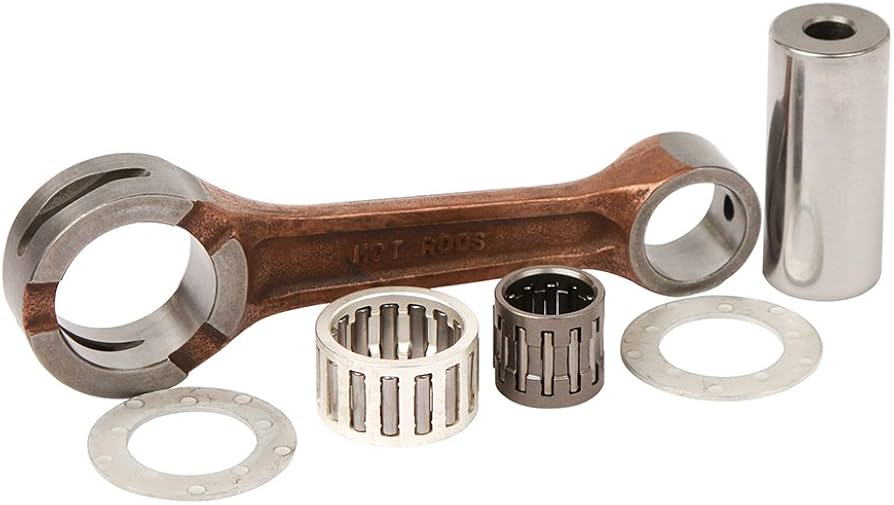

Complete kit includes connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
Fully compatible with Hot Rods and OE crankshafts.
Made in the USA for exceptional quality.

Specifications:

Centre to Centre: 96.00 mm
Big End Bore Ø: 26.00 mm
Big End Width: Not specified
Pin Diameter: 20.00 mm
Pin Length: 46.00 mm
Small End Bore Ø: 18.00 mm
Small End Width: Not specified
Washer Thickness: Not specified

Included Items:

(1) Connecting rod with (2) bearings
(1) Crankpin
(2) Thrust washers
Instructions

Cross-Reference OEM Part Numbers:
KTM: 47030015200

Vehicle Fitment:

KTM 85 SX (2013–2021, 17"/14" wheel diameter)
KTM 85 SXS (2013)
KTM 105 SX (2013–2021)
Husqvarna TC 85 (2016–2021)

Part Number: 56-963.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HUSQVARNA	TC 85	2014-2017
GAS-GAS	MC 85	2021
HUSQVARNA	TC 85	2014-2020
KTM	SX 85	2013-2020
KTM	SX 85	2013-2021
HUSQVARNA	TC 85	2014-2019
HUSQVARNA	TC 85	2014-2021
HUSQVARNA	TC 85	2014-2015
HUSQVARNA	TC 85	2014-2016
KTM	SX 85	2013-2016
KTM	SX 85	2013-2015
KTM	SX 85	2013-2019
