Name: Connecting Rod 82-97 KX80/100, Hotrod 8112 Rep Kit Kawasaki
Brand: Hot Rods
SKU: 56-118.HR
Price: 153.6 GBP
Availability: InStock

Connecting Rod 82-97 KX80/100, Hotrod 8112 Rep Kit Kawasaki

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

A high-performance Hot Rods connecting rod kit designed for Kawasaki KX80, KX100, and KDX80 models. Built to withstand demanding riding conditions, this kit offers superior durability, strength, and precision for optimal engine performance.

Features:

Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for maximum durability.
Advanced design includes side scalloping and vent slots to minimize bearing race distortion at high RPMs.
Double-forged rods improve grain flow and dimensional accuracy.
Shot-peened and double-honed for enhanced strength under heavy loads.
Small ends are double-drilled for superior lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings for added lubricity.

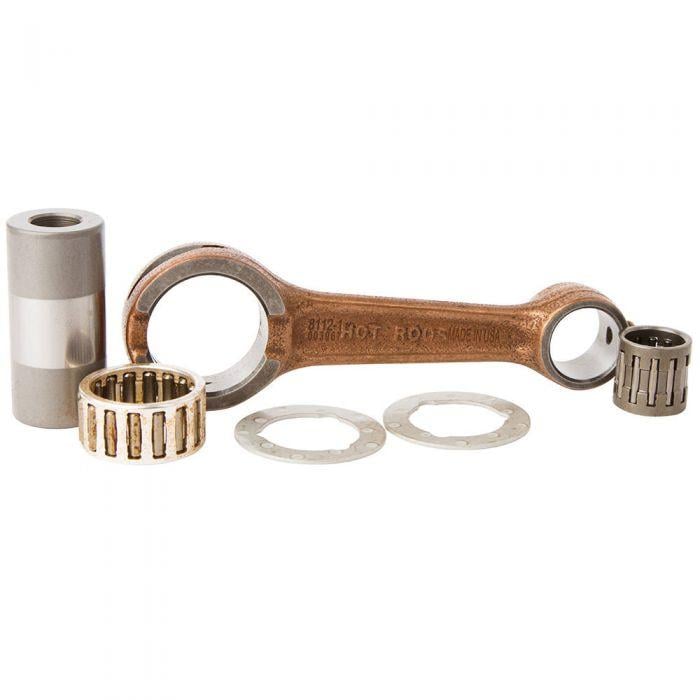

Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Center to Center Length: 92.00 mm
Small End Bearing Dimensions: 14 x 18 x 17.20 mm
Small End Bore Diameter: 18.00 mm
Small End Width: 16.00 mm
Big End Bearing Dimensions: 22 x 28 x 15.8 mm
Big End Bore Diameter: 28.00 mm
Big End Width: 16.00 mm
Big End Pin Diameter: 22.00 mm
Big End Pin Length: 46.40 mm
Washer Dimensions: 22 x 37 x 1 mm

Cross-Reference OEM Part Numbers:

Kawasaki: 13032-1039, 13044-5015, 13044-5031, 13044-5034, 13044-5053
Hot Rods: 8112

Compatibility:
Fits the following models:

Kawasaki:

KX80 (1982-1997)
KX100 (1995-1997)
KDX80 (1982-1988)

Part Number: 56-118.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 80	1982-1997
KAWASAKI	KX 80	1986-1997
KAWASAKI	KX 100	1986-1997
KAWASAKI	KX 100	1985-1997
KAWASAKI	KX 100	1982-1997

Connecting Rod 82-97 KX80/100, Hotrod 8112 Rep Kit Kawasaki

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

A high-performance Hot Rods connecting rod kit designed for Kawasaki KX80, KX100, and KDX80 models. Built to withstand demanding riding... Read more

1 in stock 1-2 business days

£153.60 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-118.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

A high-performance Hot Rods connecting rod kit designed for Kawasaki KX80, KX100, and KDX80 models. Built to withstand demanding riding conditions, this kit offers superior durability, strength, and precision for optimal engine performance.

Features:

Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for maximum durability.
Advanced design includes side scalloping and vent slots to minimize bearing race distortion at high RPMs.
Double-forged rods improve grain flow and dimensional accuracy.
Shot-peened and double-honed for enhanced strength under heavy loads.
Small ends are double-drilled for superior lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings for added lubricity.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Center to Center Length: 92.00 mm
Small End Bearing Dimensions: 14 x 18 x 17.20 mm
Small End Bore Diameter: 18.00 mm
Small End Width: 16.00 mm
Big End Bearing Dimensions: 22 x 28 x 15.8 mm
Big End Bore Diameter: 28.00 mm
Big End Width: 16.00 mm
Big End Pin Diameter: 22.00 mm
Big End Pin Length: 46.40 mm
Washer Dimensions: 22 x 37 x 1 mm

Cross-Reference OEM Part Numbers:

Kawasaki: 13032-1039, 13044-5015, 13044-5031, 13044-5034, 13044-5053
Hot Rods: 8112

Compatibility:
Fits the following models:

Kawasaki:

KX80 (1982-1997)
KX100 (1995-1997)
KDX80 (1982-1988)

Part Number: 56-118.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 80	1982-1997
KAWASAKI	KX 80	1986-1997
KAWASAKI	KX 100	1986-1997
KAWASAKI	KX 100	1985-1997
KAWASAKI	KX 100	1982-1997
