Connecting Rod 83-04 KX500, Namura RX-20009 / MX-09034 Kawasaki, MX-09034 RX-20009

Description

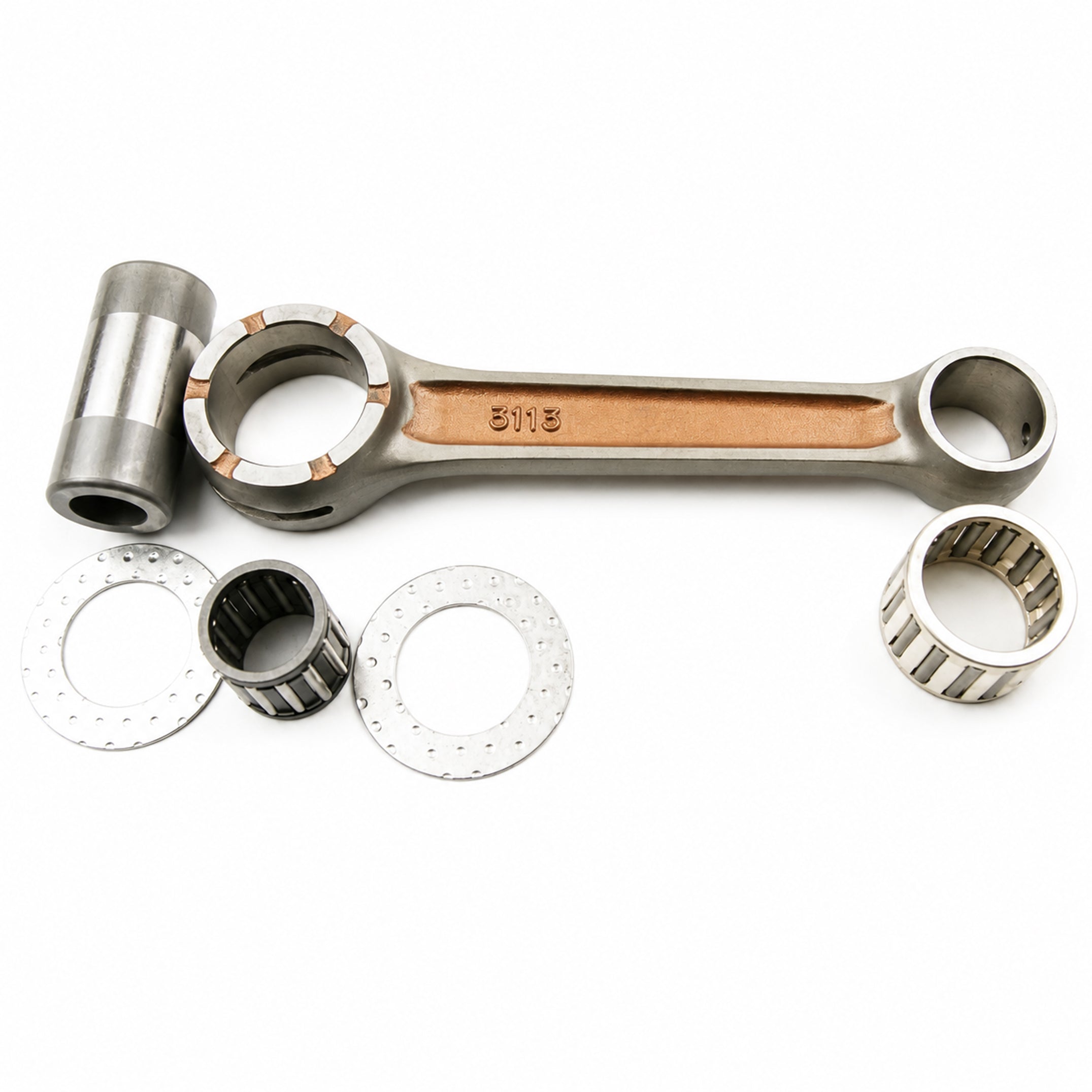

CONNECTING ROD REBUILD KIT NAMURA RX-20009

KAWASAKI
KX500 1983-2004,

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 145, B = 19, C = 26, D = 22, E = 22, F = 54.5-

Center-Center 145mm.

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Cross Reference Numbers Only:
13032-1184, KAWASAKI: 13044-4077, KAWASAKI: 13044-5048, KAWASAKI: 13044-5072 56-115.DR
KAWASAKI: 13044-5076, KAWASAKI: 13044-5077, HOTRODS 8148, WOSSNER P2039 ,

S/SEED FROM 56-115.DR TO 56-115.NM

Connecting Rod 83-04 KX500, Namura RX-20009 / MX-09034 Kawasaki, MX-09034 RX-20009

Product form

CONNECTING ROD REBUILD KIT NAMURA RX-20009   KAWASAKI KX500 1983-2004, CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A =... Read more

4 in stock 1-2 business days

£86.75 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-115.NM

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    CONNECTING ROD REBUILD KIT NAMURA RX-20009

    KAWASAKI
    KX500 1983-2004,

    CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 145, B = 19, C = 26, D = 22, E = 22, F = 54.5-

    Center-Center 145mm.

    - Heavy-duty OE replacement connecting rods.
    - Certified Chorme alloy steel provides superior strength.
    - Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
    - Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
    - Thrust washers are manufactured from bronze phosphor and are silver coated.
    - Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
    - Fully Compatible with after market and OE crankshafts.
    - Material SNCM220,

    Cross Reference Numbers Only:
    13032-1184, KAWASAKI: 13044-4077, KAWASAKI: 13044-5048, KAWASAKI: 13044-5072 56-115.DR
    KAWASAKI: 13044-5076, KAWASAKI: 13044-5077, HOTRODS 8148, WOSSNER P2039 ,

    S/SEED FROM 56-115.DR TO 56-115.NM
