Name: Connecting Rod 84-18 KX 60/65, Hotrods 8128
Brand: Hot Rods
SKU: 56-114.HR
Price: 141.0 GBP
Availability: InStock

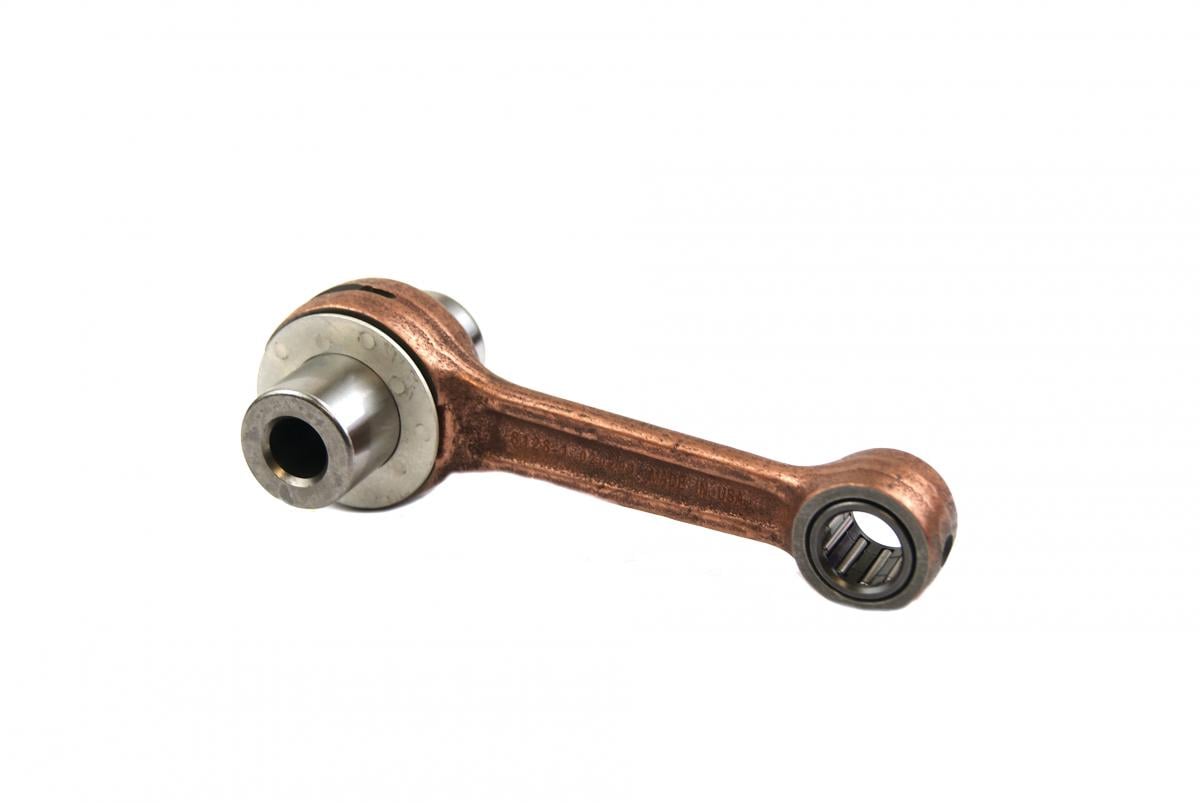

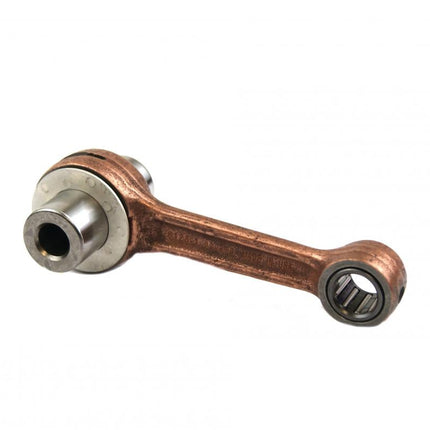

Connecting Rod 84-18 KX 60/65, Hotrods 8128

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

A high-performance Hot Rods connecting rod kit designed for Kawasaki KX60/KX65 and Suzuki RM60/RM65 models. This kit offers exceptional strength, durability, and precision engineering for optimal performance under heavy loads.

Features:

Manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength.
Advanced design with side scalloping and vent slots minimizes high-rpm bearing race distortion.
Double-forged rods improve grain flow and maintain dimensional accuracy.
Shot-peened and double-honed for superior durability under extreme loads.
Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings provide added lubricity.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

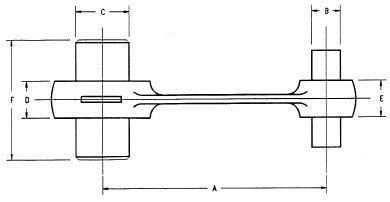

Technical Specifications:

Big End Bore: 26.00 mm
Center to Center: 85.00 mm
Pin Diameter: 20.00 mm
Pin Length: 45.80 mm
Small End Bore: 16.00 mm
Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

Kawasaki: 13032-1246, 13044-5024
Suzuki: K1303-21246

Compatibility:
Fits the following models:

Kawasaki:

1985-2003 KX60
2000-2018 KX65 (including Monster Energy editions)

Suzuki:

RM60
RM65

Part Number: 56-114.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 60	2003
SUZUKI	RM 65	2003-2005
KAWASAKI	KX 65	2000-2021
KAWASAKI	KX 65	2000-2020
KAWASAKI	KX 65	2000-2017
KAWASAKI	KX 65	2000-2015
KAWASAKI	KX 60	1984-2003
KAWASAKI	KX 60	1985-2004
KAWASAKI	KX 60	1985-2000
KAWASAKI	KX 60	1984-2000
KAWASAKI	KX 60	1983-2016
KAWASAKI	KX 60	1983-2018
KAWASAKI	KX 60	1984-2020
KAWASAKI	KX 65	1983-2016
KAWASAKI	KX 65	1983-2018
KAWASAKI	KX 65	1984-2020

Connecting Rod 84-18 KX 60/65, Hotrods 8128

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

A high-performance Hot Rods connecting rod kit designed for Kawasaki KX60/KX65 and Suzuki RM60/RM65 models. This kit offers exceptional strength,... Read more

1 in stock 1-2 business days

£141.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-114.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

A high-performance Hot Rods connecting rod kit designed for Kawasaki KX60/KX65 and Suzuki RM60/RM65 models. This kit offers exceptional strength, durability, and precision engineering for optimal performance under heavy loads.

Features:

Manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength.
Advanced design with side scalloping and vent slots minimizes high-rpm bearing race distortion.
Double-forged rods improve grain flow and maintain dimensional accuracy.
Shot-peened and double-honed for superior durability under extreme loads.
Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings provide added lubricity.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Big End Bore: 26.00 mm
Center to Center: 85.00 mm
Pin Diameter: 20.00 mm
Pin Length: 45.80 mm
Small End Bore: 16.00 mm
Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

Kawasaki: 13032-1246, 13044-5024
Suzuki: K1303-21246

Compatibility:
Fits the following models:

Kawasaki:

1985-2003 KX60
2000-2018 KX65 (including Monster Energy editions)

Suzuki:

RM60
RM65

Part Number: 56-114.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 60	2003
SUZUKI	RM 65	2003-2005
KAWASAKI	KX 65	2000-2021
KAWASAKI	KX 65	2000-2020
KAWASAKI	KX 65	2000-2017
KAWASAKI	KX 65	2000-2015
KAWASAKI	KX 60	1984-2003
KAWASAKI	KX 60	1985-2004
KAWASAKI	KX 60	1985-2000
KAWASAKI	KX 60	1984-2000
KAWASAKI	KX 60	1983-2016
KAWASAKI	KX 60	1983-2018
KAWASAKI	KX 60	1984-2020
KAWASAKI	KX 65	1983-2016
KAWASAKI	KX 65	1983-2018
KAWASAKI	KX 65	1984-2020
