Name: Connecting Rod 84-18 KX 60 65, RX-20001 MX-09026 Kit RM60/65 RX-20001
Brand: Namura Technologies
SKU: 56-114.NM
Price: 92.79 GBP
Availability: InStock

Connecting Rod 84-18 KX 60 65, RX-20001 MX-09026 Kit RM60/65 RX-20001

Namura Technologies
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Connecting rod rebuild kit for small-bore two-stroke engines, suitable for Kawasaki KX60/KX65 and Suzuki RM60/RM65 applications. Designed as a heavy-duty OE replacement, it incorporates design elements for high-rpm reliability and is supplied as a complete assembly with rod, crankpin, bearings, and thrust washers. Part number: MX-09026.

Features

Heavy-duty OE replacement connecting rod
Uniquely designed big end with strategically located side-scalloping vent slots to minimise high-rpm bearing race distortion
Uses the latest caged needle roller bearing designs for high-rpm longevity

Specifications

Part number: MX-09026

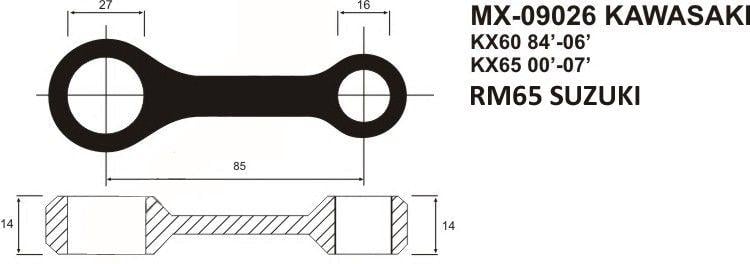

Dimensions (mm): A = 85, B = 12, C = 20, D = 14, E = 14, F = 46
Rod material: Certified chrome steel for strength
Crankpins: Hot-rolled ASTM 4115, case hardened
Thrust washers: Bronze phosphor, silver coated
Kit contents: Connecting rod, crankpin, crankpin bearing, top end bearing, thrust washers

Cross-Reference OEM Part Numbers

13032-1246
MX-09026

Vehicle Fitments

Kawasaki KX60 / KX65 (1984–2018; also listed as 1985–2018)
Suzuki RM60 / RM65

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 60	2003
SUZUKI	RM 65	2003-2005
KAWASAKI	KX 65	2000-2021
KAWASAKI	KX 65	2000-2020
KAWASAKI	KX 65	2000-2017
KAWASAKI	KX 65	2000-2015
KAWASAKI	KX 60	1984-2003
KAWASAKI	KX 60	1985-2004
KAWASAKI	KX 60	1985-2000
KAWASAKI	KX 60	1984-2000
KAWASAKI	KX 60	1983-2016
KAWASAKI	KX 60	1983-2018
KAWASAKI	KX 60	1984-2020
KAWASAKI	KX 65	1983-2016
KAWASAKI	KX 65	1983-2018
KAWASAKI	KX 65	1984-2020

Connecting Rod 84-18 KX 60 65, RX-20001 MX-09026 Kit RM60/65 RX-20001

Namura Technologies
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Connecting rod rebuild kit for small-bore two-stroke engines, suitable for Kawasaki KX60/KX65 and Suzuki RM60/RM65 applications. Designed as a heavy-duty... Read more

7 in stock 1-2 business days

£92.79 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-114.NM
Barcode: 758891121198

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Connecting rod rebuild kit for small-bore two-stroke engines, suitable for Kawasaki KX60/KX65 and Suzuki RM60/RM65 applications. Designed as a heavy-duty OE replacement, it incorporates design elements for high-rpm reliability and is supplied as a complete assembly with rod, crankpin, bearings, and thrust washers. Part number: MX-09026.

Features

Heavy-duty OE replacement connecting rod
Uniquely designed big end with strategically located side-scalloping vent slots to minimise high-rpm bearing race distortion
Uses the latest caged needle roller bearing designs for high-rpm longevity

Specifications

Part number: MX-09026
Dimensions (mm): A = 85, B = 12, C = 20, D = 14, E = 14, F = 46
Rod material: Certified chrome steel for strength
Crankpins: Hot-rolled ASTM 4115, case hardened
Thrust washers: Bronze phosphor, silver coated
Kit contents: Connecting rod, crankpin, crankpin bearing, top end bearing, thrust washers

Cross-Reference OEM Part Numbers

13032-1246
MX-09026

Vehicle Fitments

Kawasaki KX60 / KX65 (1984–2018; also listed as 1985–2018)
Suzuki RM60 / RM65

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 60	2003
SUZUKI	RM 65	2003-2005
KAWASAKI	KX 65	2000-2021
KAWASAKI	KX 65	2000-2020
KAWASAKI	KX 65	2000-2017
KAWASAKI	KX 65	2000-2015
KAWASAKI	KX 60	1984-2003
KAWASAKI	KX 60	1985-2004
KAWASAKI	KX 60	1985-2000
KAWASAKI	KX 60	1984-2000
KAWASAKI	KX 60	1983-2016
KAWASAKI	KX 60	1983-2018
KAWASAKI	KX 60	1984-2020
KAWASAKI	KX 65	1983-2016
KAWASAKI	KX 65	1983-2018
KAWASAKI	KX 65	1984-2020
