Description
HONDA
CR 125R 1985 - 1987,

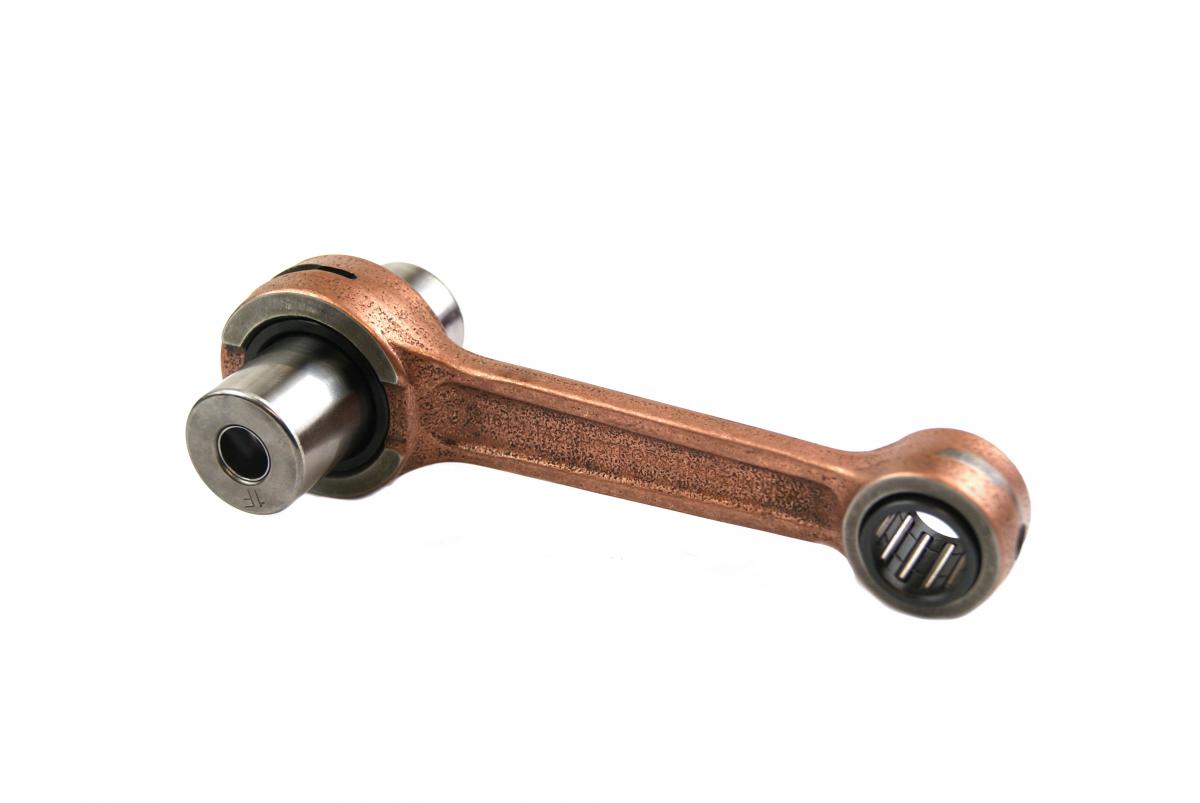

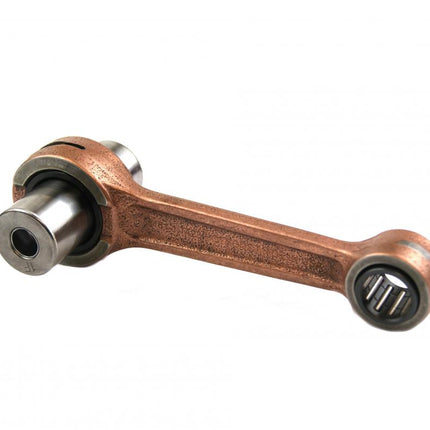

Connecting rod rebuild Kit. HOTRODS 8161
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Technical Specifications:
Big End Bearing (mm):22x28x16
Big End Bore (mm): 28.00
Big End Width (mm): 16.00
Center To Center (mm): 104.00
Pin Diameter (mm): 22.00
Pin Length (mm): 54.00
Small End Bearing (mm): 14x18x19
Part No. 56-930.HR / 56-930_HR (radhouse.co.uk)
Cross reference numbers ONLY.
HONDA: 13200-KA3-760 HONDA: 13200-KS6-305 HONDA: 13200-KS6-306
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HONDA |
CR 125 |
1985-1987 |
