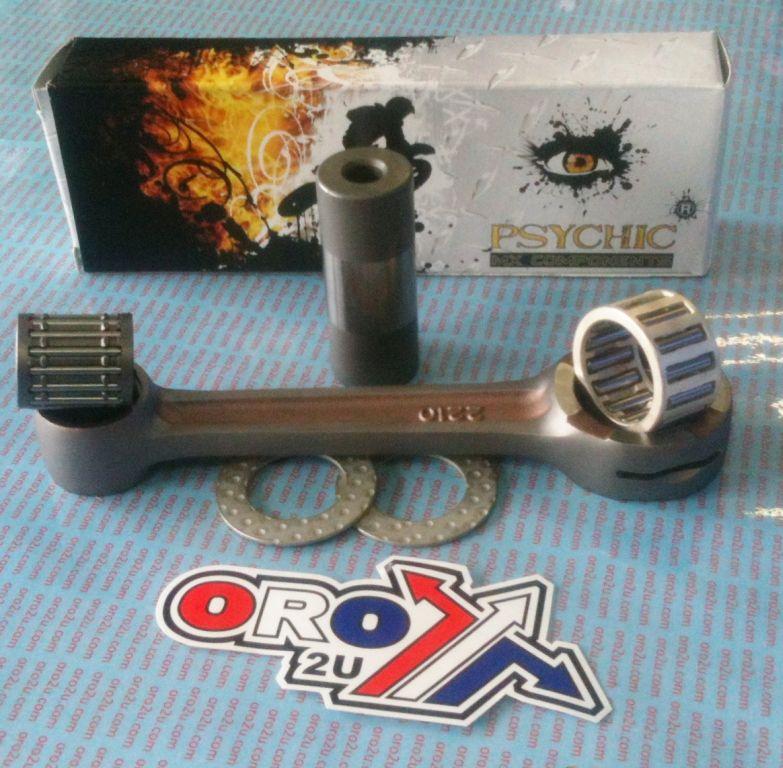

CONNECTING CONROD ROD REBUILD KIT PSYCHIC MX-09007
HONDA
CR500 1987-2001,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Rod Center-Center 144mm,
Rod Eyes Width. 24.00/20.00mm,
Big end pin 26x64.75mm
Small End eye Dia 25mm
Small end bearing 20X25X27.8
Big end eye bore 34mm
Washer Thickness (mm): 1.50000000
Part No. 56-155.DR (radhouse.co.uk)
Cross reference numbers ONLY.
13200-ML3-680, CK139, HOTRODS 8139, PROX 03.1406, WOSSNER P2044, 422210, Wiseco CR166, 13200-ML3-305, 13200-ML3-680, 13300-MAC-680, 13300-ML3-910, 13300-ML3-911,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HONDA |
CR 500 |
1987-2001 |
| HONDA |
CR 500 |
1988-2001 |
