Description
YAMAHA
1987-2006 YFZ350 Banshee,

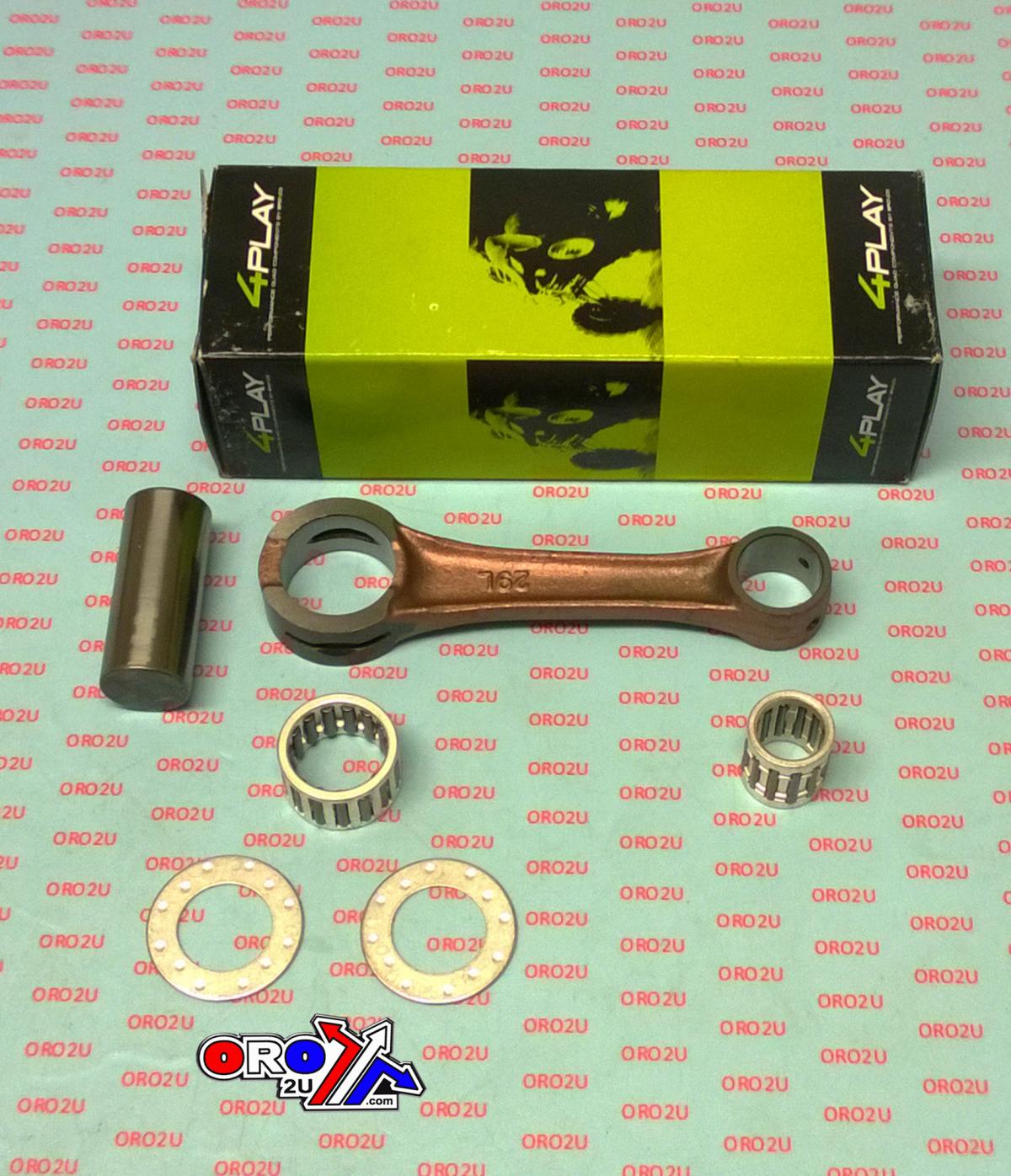

Connecting Conrod Rod Rebiuld kit BRONCO AT-97306
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Center To Center (mm): 110
Small End Bearing (mm): 16x21x22.5
Small End Bore (mm): 21
Small End Width (mm): 18
Big End Bearing (mm): 22x29x17
Big End Bore (mm): 29
Big End Width (mm): 17
Big End Pin Diameter (mm): 22
Big End Pin Length (mm): 53
Washer Thickness (mm): 1.00
Cross reference numbers ONLY.
VESRAH VA-2008, 29L-11651-00-00, HOTROD 8121,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| YAMAHA |
YFZ BANSHEE 350 |
1987-2006 |
| YAMAHA |
YFZ BANSHEE 350 |
1987-2007 |
