Name: Connecting Rod 87-06 YFS200, Hotrod 8144 Yamaha ATV
Brand: Hot Rods
SKU: 56-195.HR
Price: 147.64 GBP
Availability: InStock

Connecting Rod 87-06 YFS200, Hotrod 8144 Yamaha ATV

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

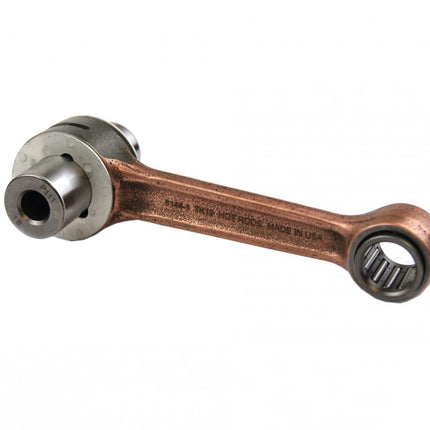

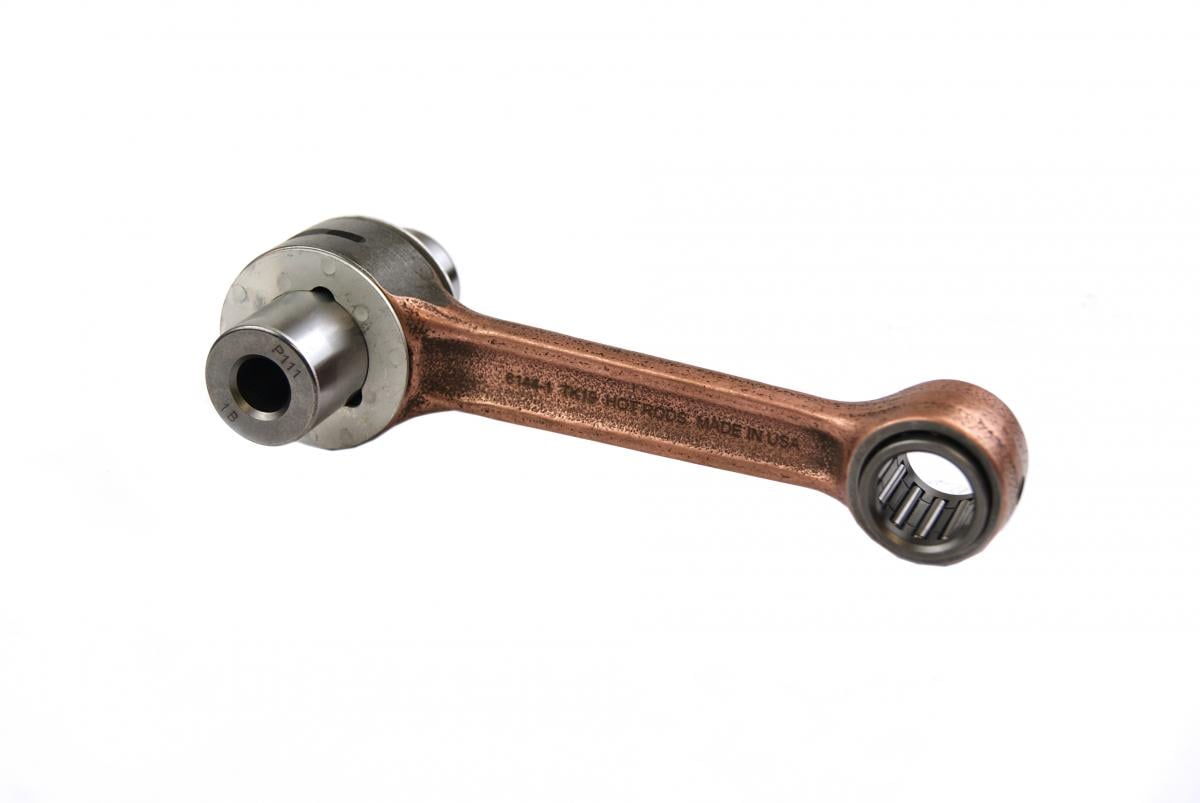

This high-quality connecting rod kit is designed for Yamaha Blaster 200 models, offering reliable performance and exceptional durability. Engineered with precision and crafted from premium materials, it is ideal for demanding applications.

Features:

Premium Material: Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength and durability.
Advanced Design: Features side scalloping and vent slots to reduce high RPM bearing race distortion.
Double-Forged Rods: Improves grain flow and dimensional consistency for superior reliability.
Shot-Peened and Double-Honed: Enhances strength under heavy loads.
Improved Lubrication: Double-drilled small ends provide additional lubrication and cooling for the wrist pin bearing, especially for pistons with crowns close to the bearing.
Silver-Coated Components: Thrust washers and crank pin bearings are coated for increased lubricity.
Complete Kit: Includes connecting rod, crank pin, crank pin bearing, top-end bearing, needle cage bearing, and thrust washers.

Technical Specifications:

Big End Bearing (mm):

Dimensions: 22x29x17
Big End Bore: 29.00 mm
Big End Width: 17.00 mm
Center to Center: 110.00 mm

Cross-Reference OEM Part Numbers:

Yamaha: 43G-11651-00-00
Others: Vesrah VA-2009, Wossner P203, Wiseco WPR170, Psychic AT-97307

Vehicle Fitments:

Yamaha:

Blaster 200 (YFS200): 1988–2006 Special Edition Models:2006 YFS200SE Blaster Special Edition

Part Number: 8144

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YFS BLASTER 200	1988-2006

Connecting Rod 87-06 YFS200, Hotrod 8144 Yamaha ATV

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This high-quality connecting rod kit is designed for Yamaha Blaster 200 models, offering reliable performance and exceptional durability. Engineered with... Read more

1 in stock 1-2 business days

£147.64 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-195.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This high-quality connecting rod kit is designed for Yamaha Blaster 200 models, offering reliable performance and exceptional durability. Engineered with precision and crafted from premium materials, it is ideal for demanding applications.

Features:

Premium Material: Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength and durability.
Advanced Design: Features side scalloping and vent slots to reduce high RPM bearing race distortion.
Double-Forged Rods: Improves grain flow and dimensional consistency for superior reliability.
Shot-Peened and Double-Honed: Enhances strength under heavy loads.
Improved Lubrication: Double-drilled small ends provide additional lubrication and cooling for the wrist pin bearing, especially for pistons with crowns close to the bearing.
Silver-Coated Components: Thrust washers and crank pin bearings are coated for increased lubricity.
Complete Kit: Includes connecting rod, crank pin, crank pin bearing, top-end bearing, needle cage bearing, and thrust washers.

Technical Specifications:

Big End Bearing (mm):

Dimensions: 22x29x17
Big End Bore: 29.00 mm
Big End Width: 17.00 mm
Center to Center: 110.00 mm

Cross-Reference OEM Part Numbers:

Yamaha: 43G-11651-00-00
Others: Vesrah VA-2009, Wossner P203, Wiseco WPR170, Psychic AT-97307

Vehicle Fitments:

Yamaha:

Blaster 200 (YFS200): 1988–2006 Special Edition Models:2006 YFS200SE Blaster Special Edition

Part Number: 8144

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YFS BLASTER 200	1988-2006
