Description
YAMAHA
YZ250 1990-1997,

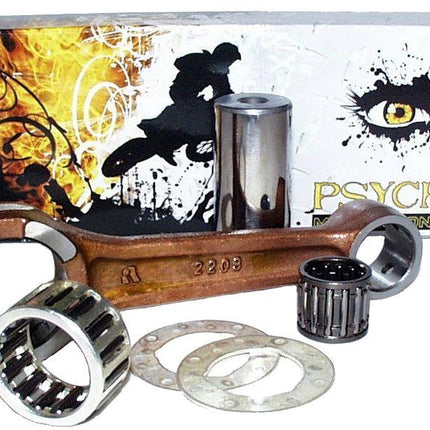

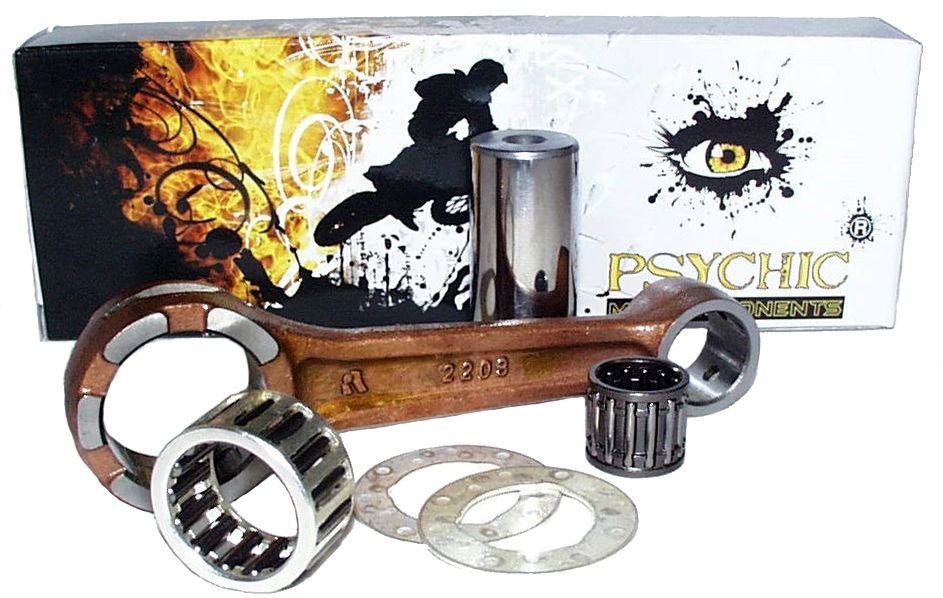

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09080
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre |
125
|
| Small End Bearing | 18x23x22 |
| Small End Bore Ø | 23 |
| Small End Width | 20 |
| Big End Bearing | 25x32x19.8
|
| Big End Bore Ø | 32 |
| Big End Width |
20
|
| Big End Pin Ø | 25 |
| Big End Pin Length | 60
|
| Washer Thickness | 1.00
|
Part No. 56-979.DR (radhouse.co.uk)
Cross Reference Numbers Only:
YAMAHA: 5X5-11651-01-00, YAMAHA: 5X5-11651-02-00, YAMAHA: 5X5-11651-03-00, HOTRODS 8107, PROX 03-2306, WOSSNER P2029,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| YAMAHA |
WR 250 |
1990-1997 |
| YAMAHA |
WR 250 |
1991-1997 |
| YAMAHA |
YZ 250 |
1990-1998 |
| YAMAHA |
YZ 250 |
1989-1998 |
