Description
KTM
SX60 / SX65 1998-2002,

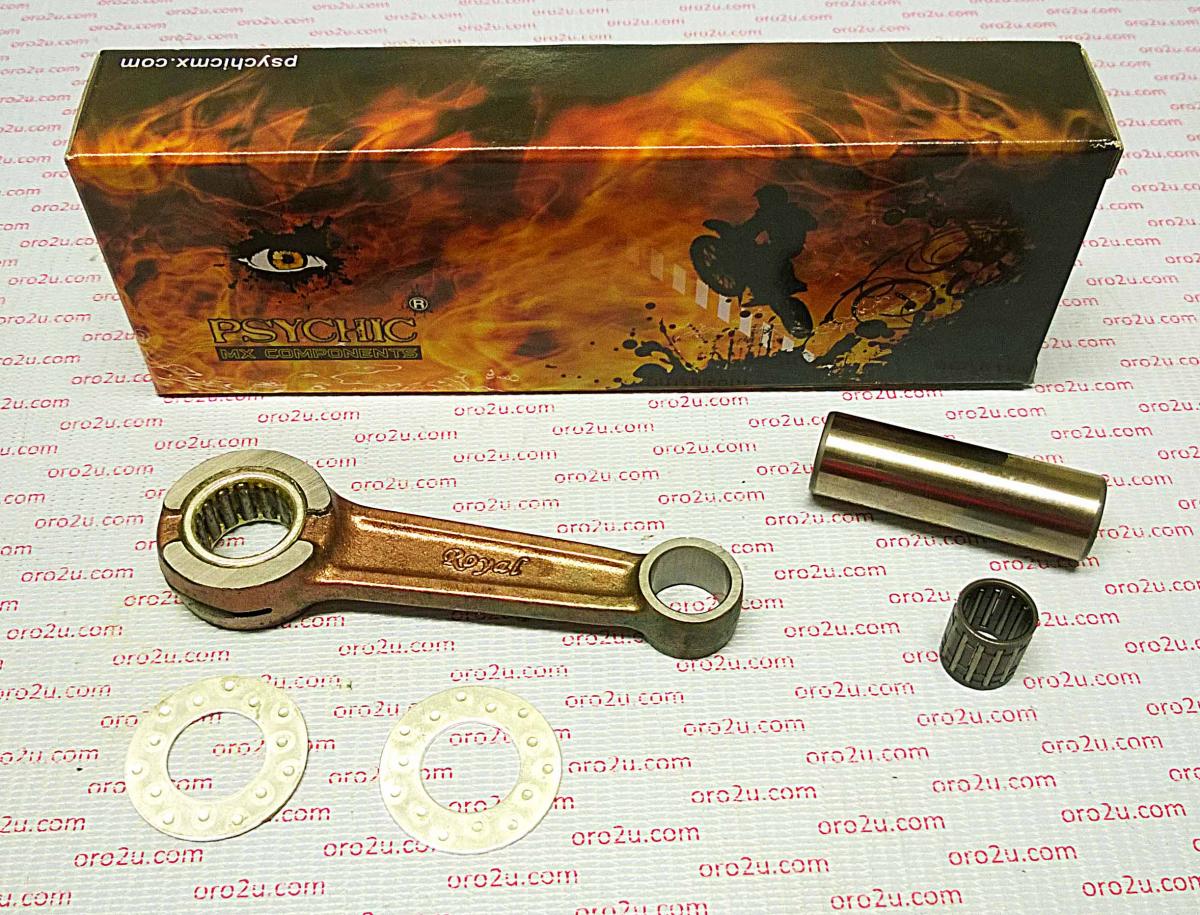

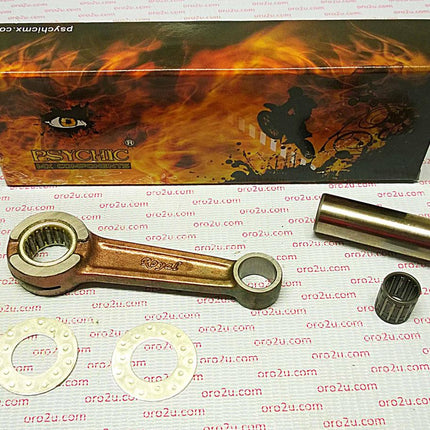

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09041
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 88 |
| Small End Bearing | 12x15x16.3 |
| Small End Bore Ø | 15 |
| Small End Width | 13 |
| Big End Bearing | 18x24x14.8
|
| Big End Bore Ø | 24 |
| Big End Width | 14.90
|
| Big End Pin Ø | 18 |
| Big End Pin Length | 56
|
| Washer Thickness | 1.00
|
Part No. 56-958.DR (radhouse.co.uk)
Cross reference numbers ONLY.
MX-09041, HOTRODS 8625, 46030015000 ,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| KTM |
SX 60 |
1997-1999 |
| KTM |
SX 65 |
2000-2002 |
| KTM |
SX 60 |
1997-2002 |
| KTM |
SX 65 |
1998-2002 |
| KTM |
SX 65 |
1997-2002 |
